DTC 14 - Ignition Signal

DTC 14 - IGNITION SIGNAL TROUBLE

Terminal Trouble Condition STD Voltage
IGT-E1 No Voltage Idling Pulse Generation

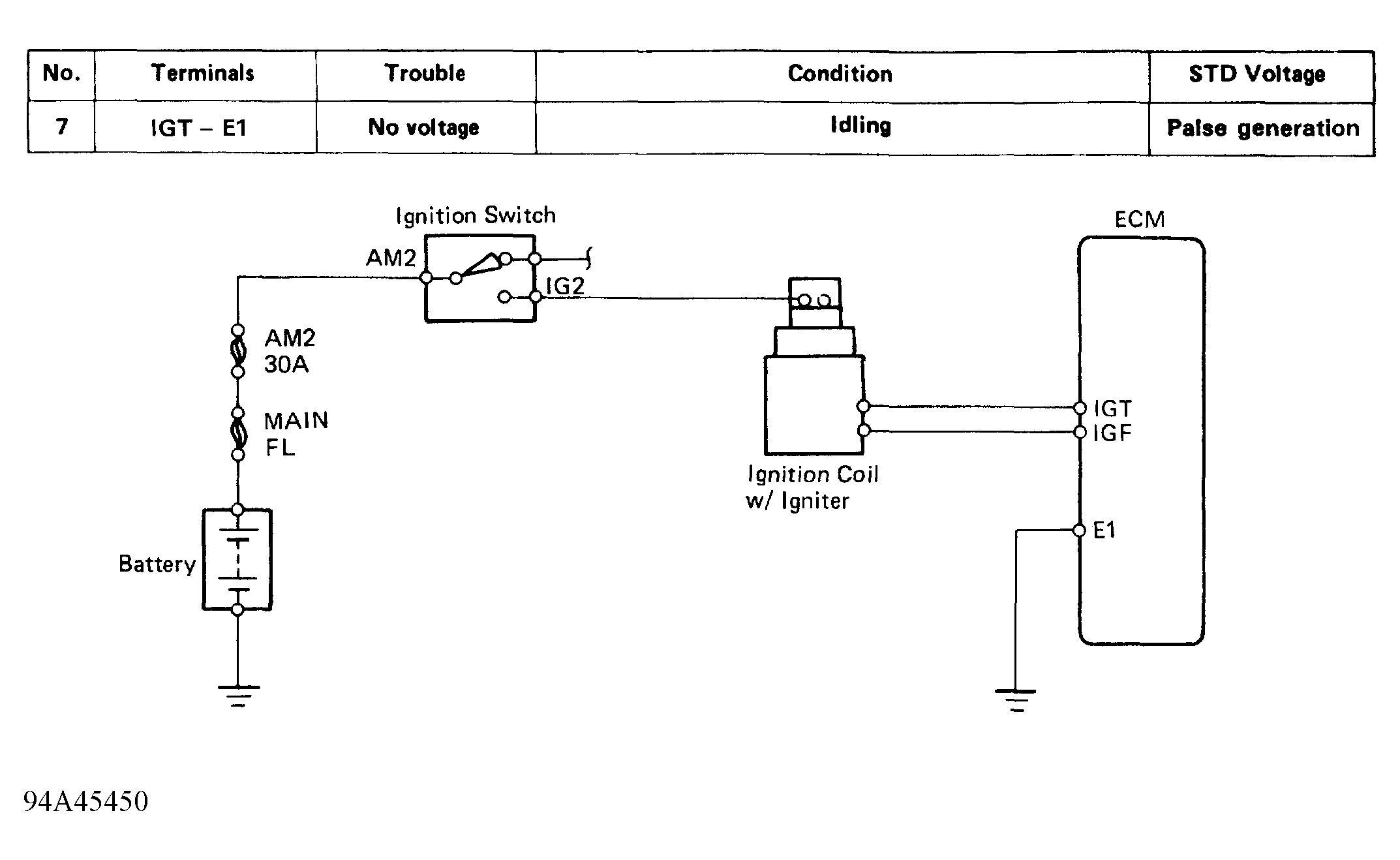

Fig 1: DTC 14 - Schematic
G94A45450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

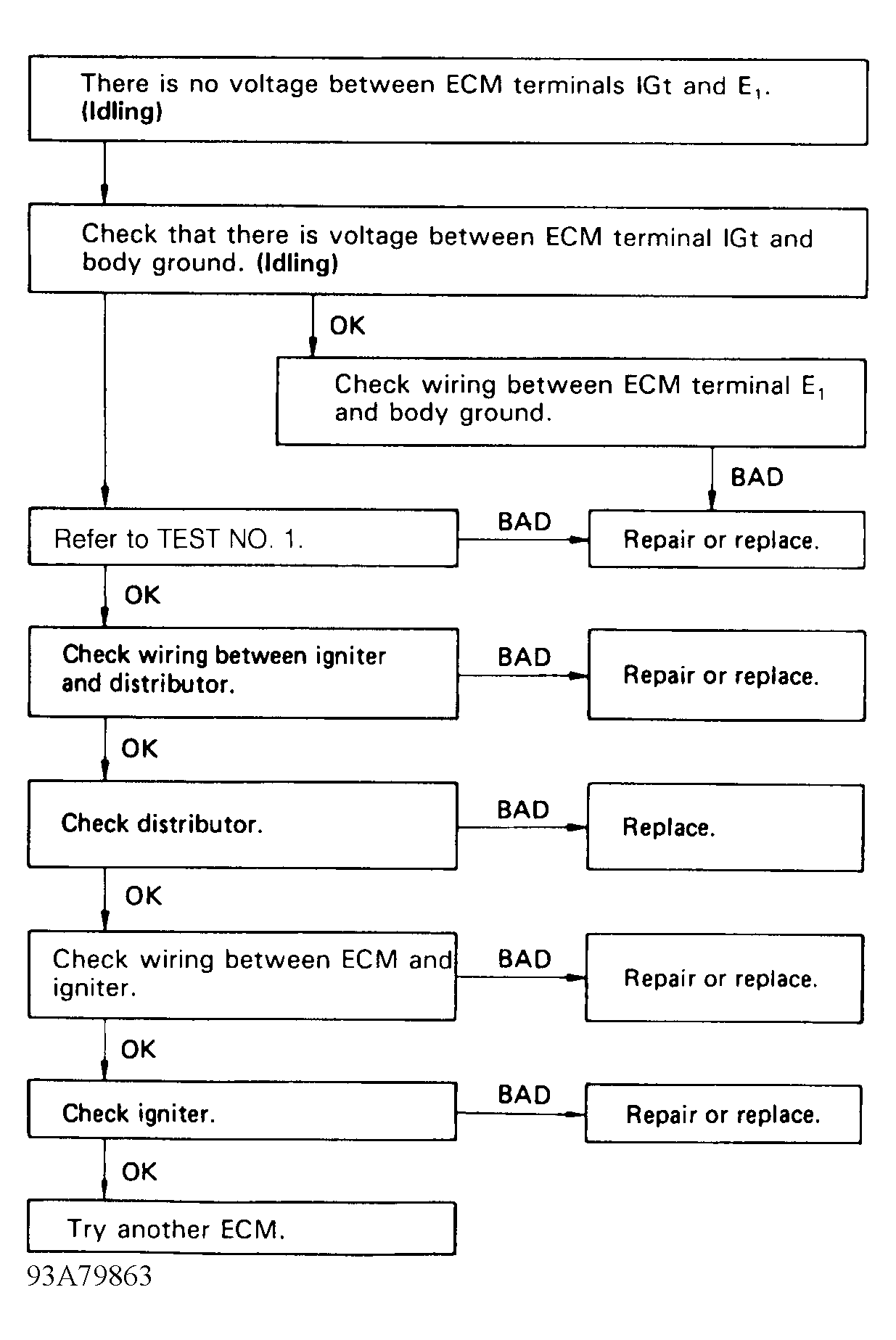

Fig 2: DTC 14 - Diagnostic Flowchart
G93A79863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
