Clutch Assembly: Notes

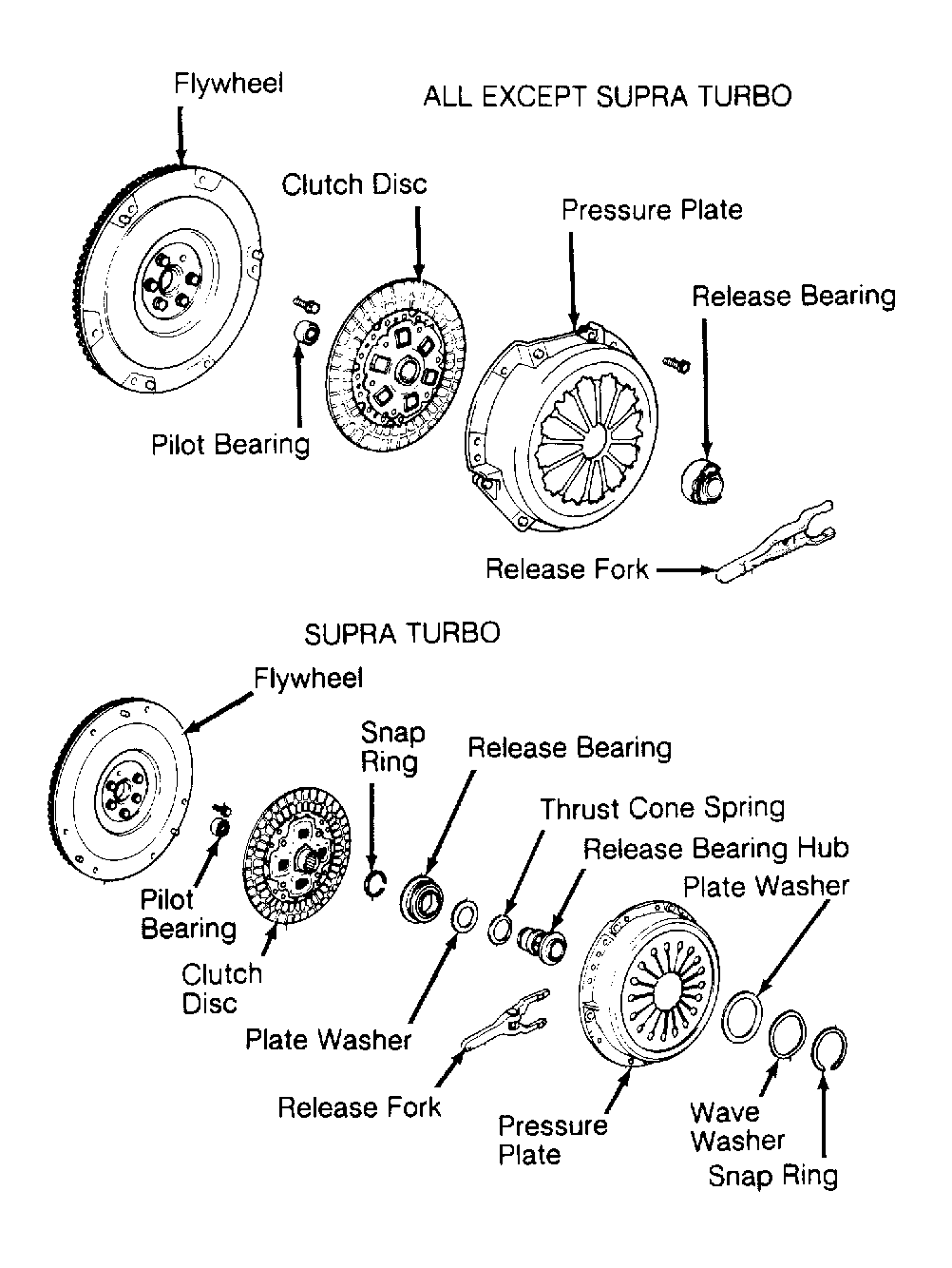

Fig 1: Exploded View Of Clutch Assembly (Similar)

NOTE: On T100 2WD models, the engine and transmission must both be removed to replace the clutch because the rear crossmember is welded to the chassis. See appropriate Engine article in ENGINES for removal procedures. When engine and transmission are removed, clutch disc and pressure plate can be removed using 4WD procedure.
