Service Point Locations

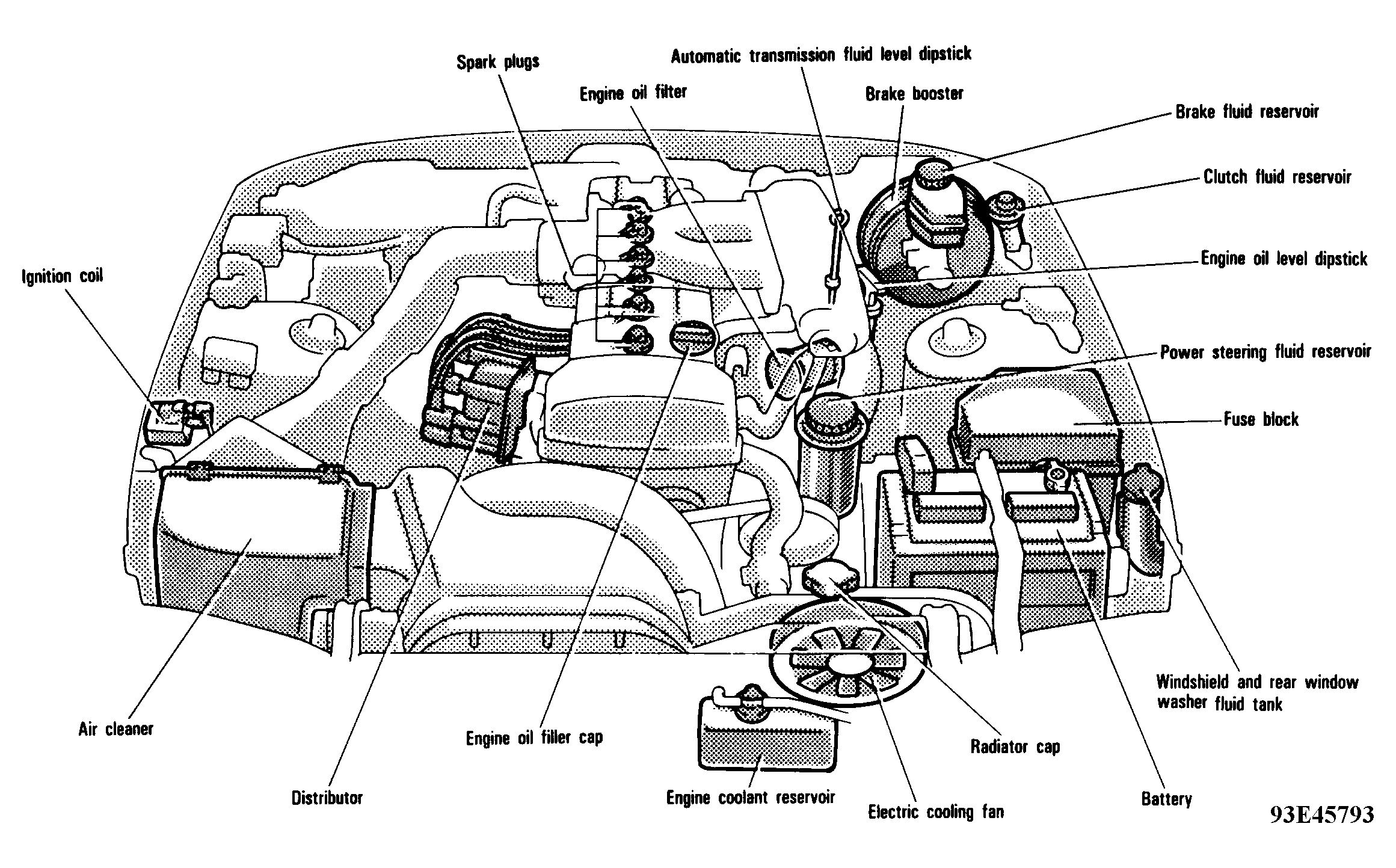

Fig 1: Service Point Locations (2JZ-GE Non-Turbo Engine)
G93E45793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

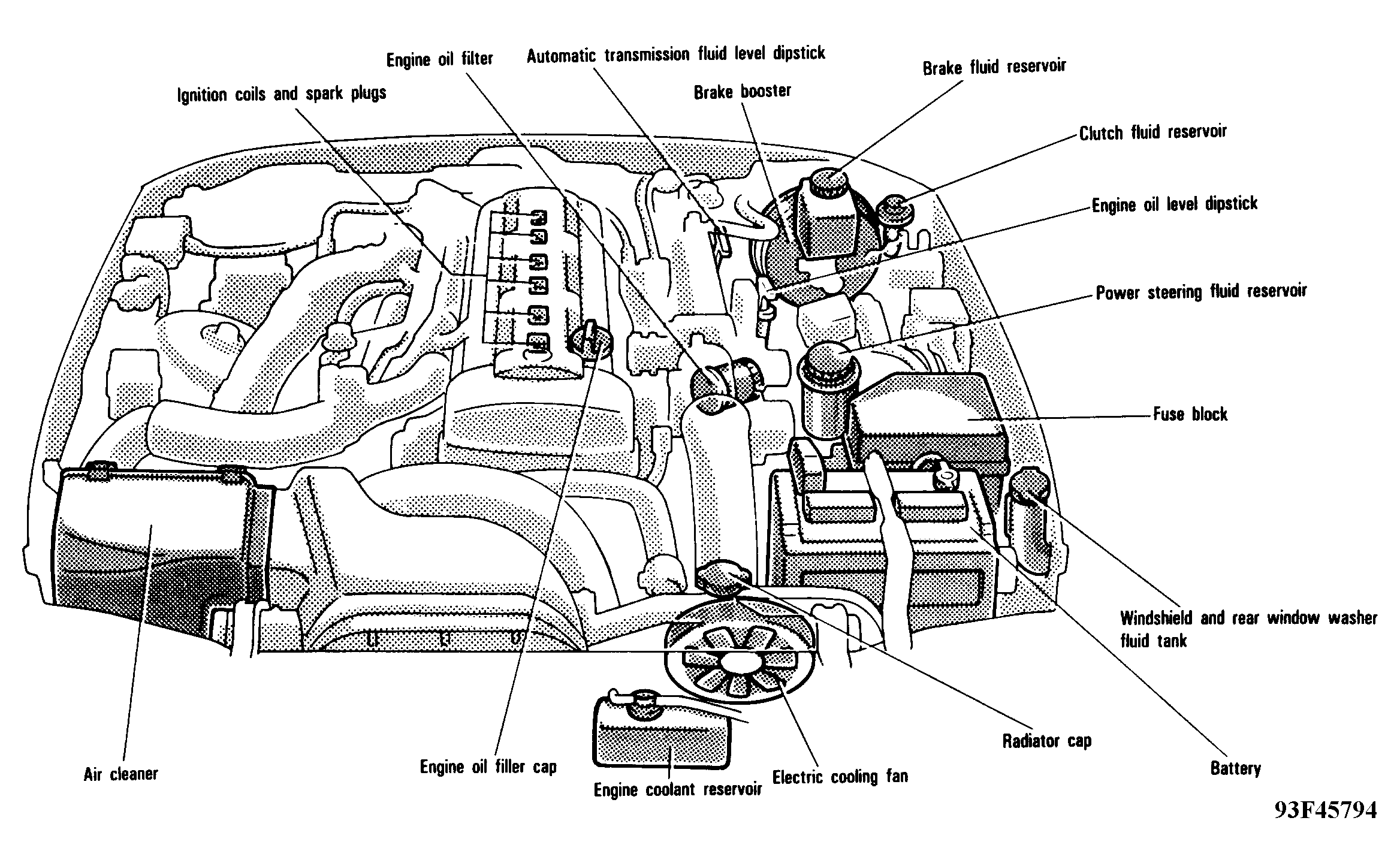

Fig 2: Service Point Locations (2JZ-GTE Turbo Engine)
G93F45794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
