Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS ECU (2JZ-GE) | On right side of passenger of passenger-side floor board, under carpet. See Figure. |

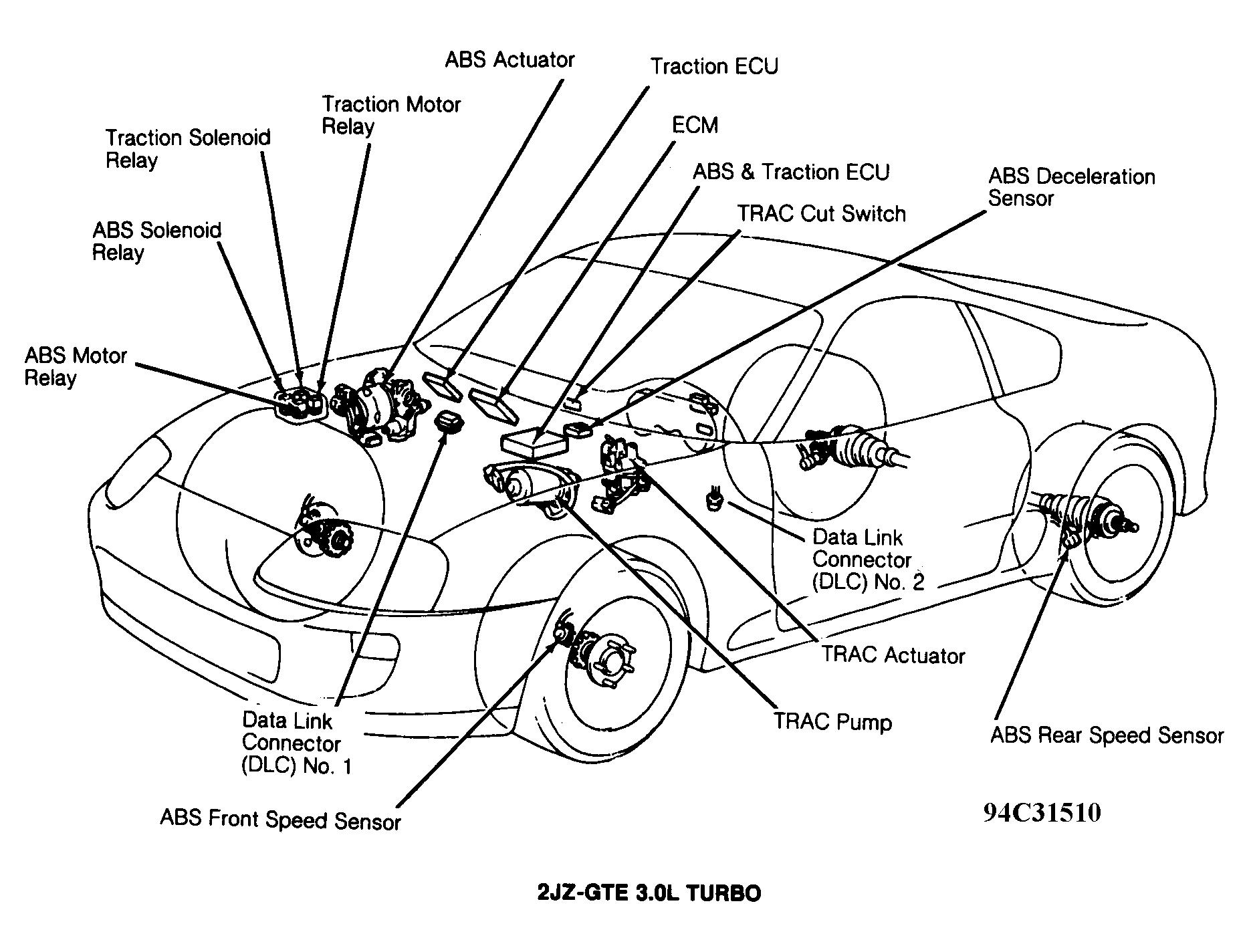

| ABS & Traction ECU (2JZ-GTE) | Behind center of dash, forward of center console. See Figure & Figure . |
| Air Bag ECU | Under rear of center console, behind gear selector. See Figure. |

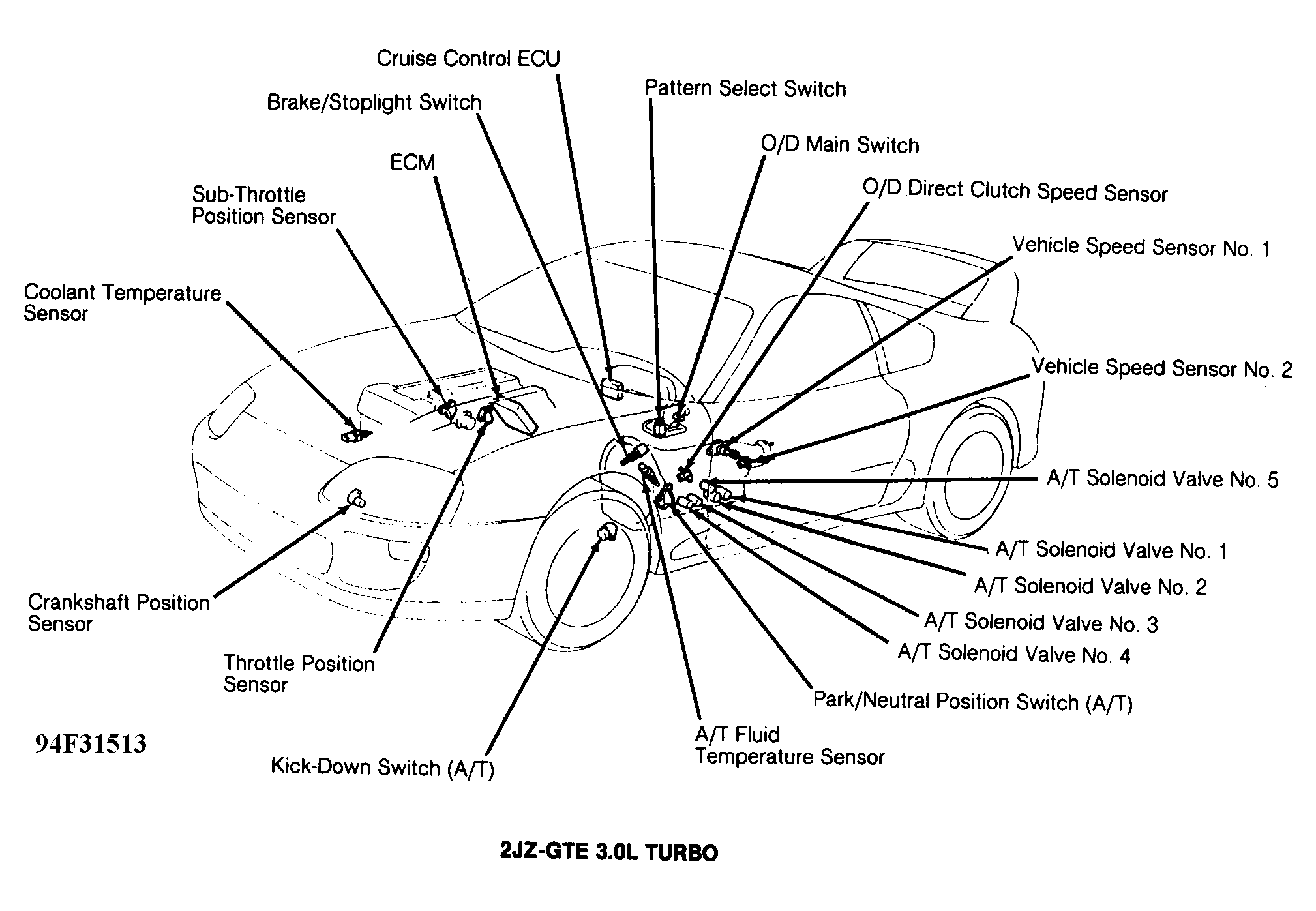

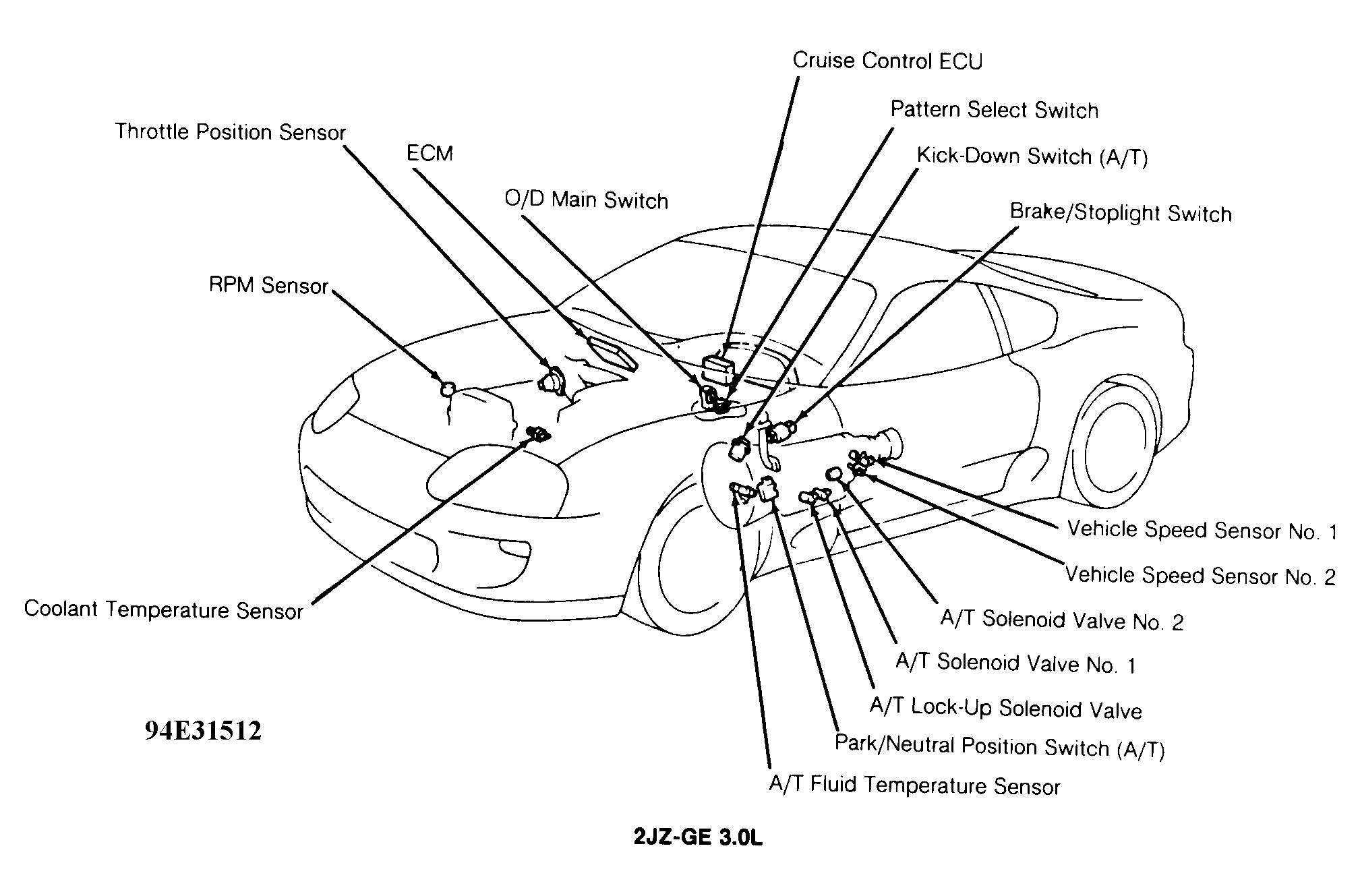

| Cruise Control ECU | Behind upper left side of dash, right of steering column. See Figure, Figure & Figure . |

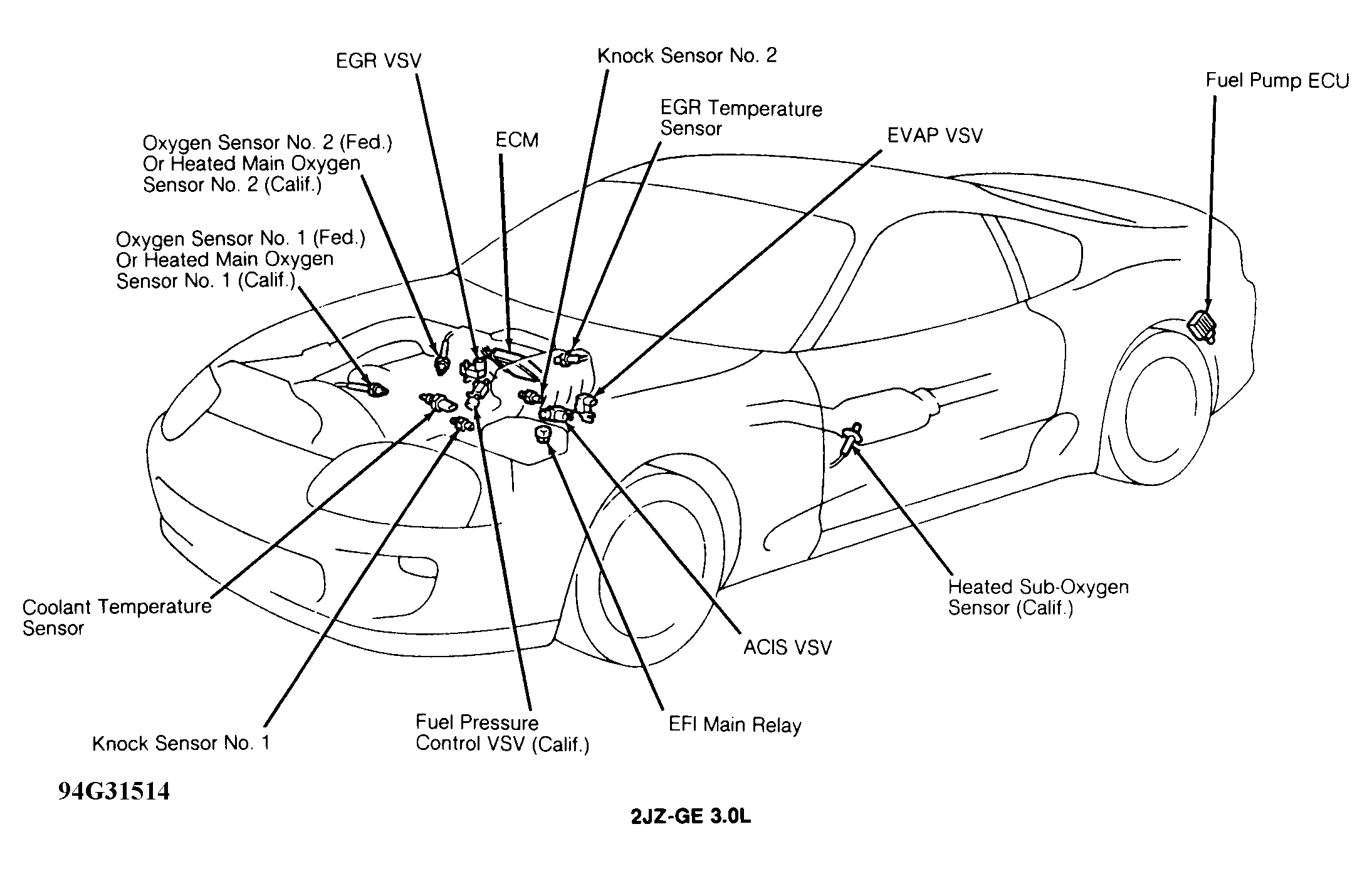

| Engine Control Module (ECM) | On left side of passenger side floor board, under carpet. See Figure, Figure, Figure & Figure . |

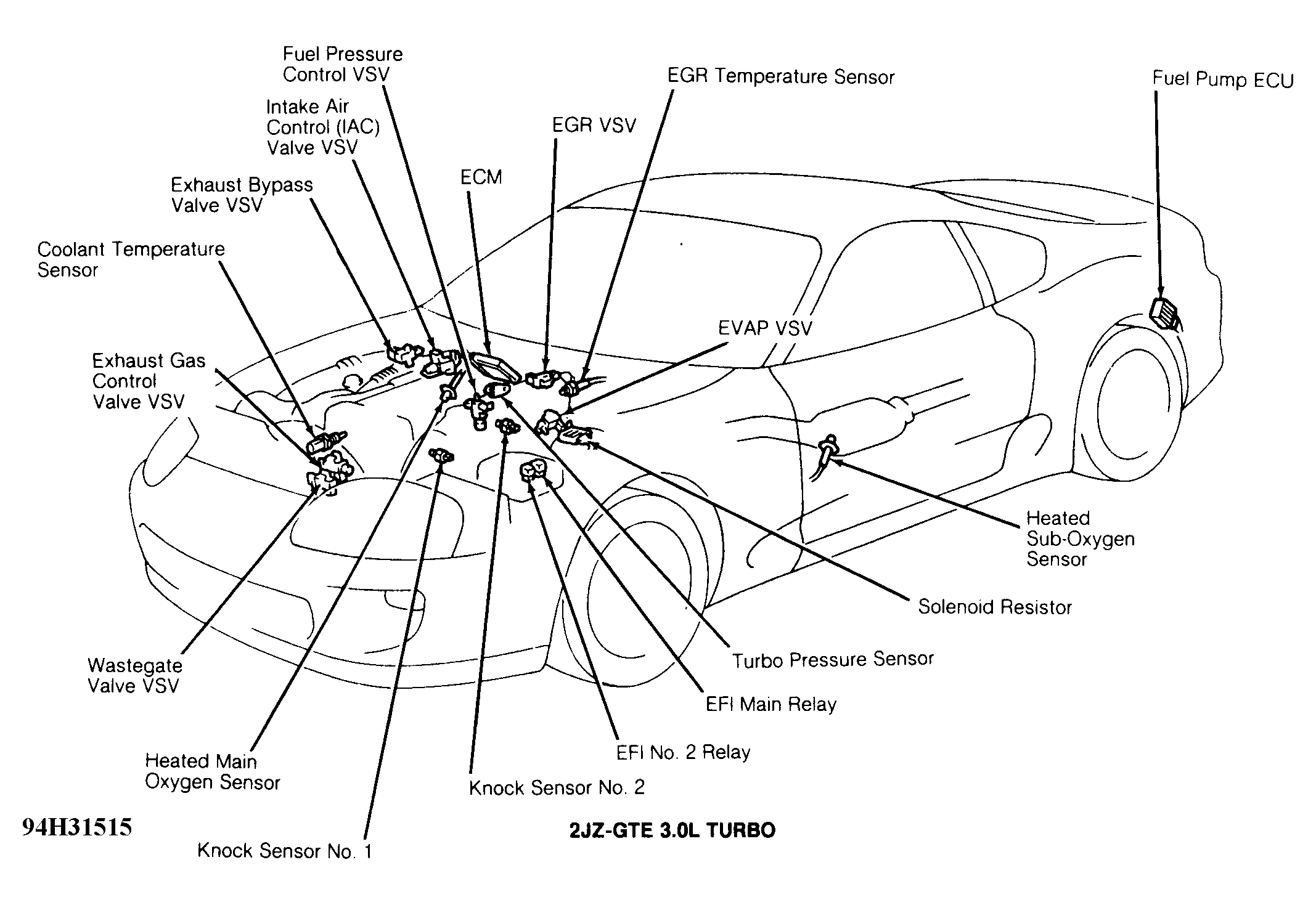

| Fuel Pump ECU | In left rear corner of luggage compartment. See Figure & Figure . |
| Progressive Power Steering (PPS) ECU | Behind right kick panel, near theft deterrent ECU. See Figure. |
| Shift Lock Control ECU (A/T) | Under center console, behind gear selector. See Figure. |
| Theft Deterrent Computer | Behind right kick panel. See Figure. |
| Traction ECU (2JZ-GTE) | On right side of passenger side floor board, under carpet. See Figure. |
