Pick-Up Coil Air Gap

Using a flat, non-magnetic feeler gauge, check air gap between signal rotor and pick-up coil projection. See Fig 2 and 7.
Replace distributor assembly if pick-up coil air gap is not within specification. See PICK-UP COIL AIR GAP SPECIFICATIONS table.

PICK-UP COIL AIR GAP SPECIFICATIONS

Application	In. (mm)
All Models	.008-.016 (.20-.40)

Fig 1: Pick-Up Coil Terminal I.D. (Previa)

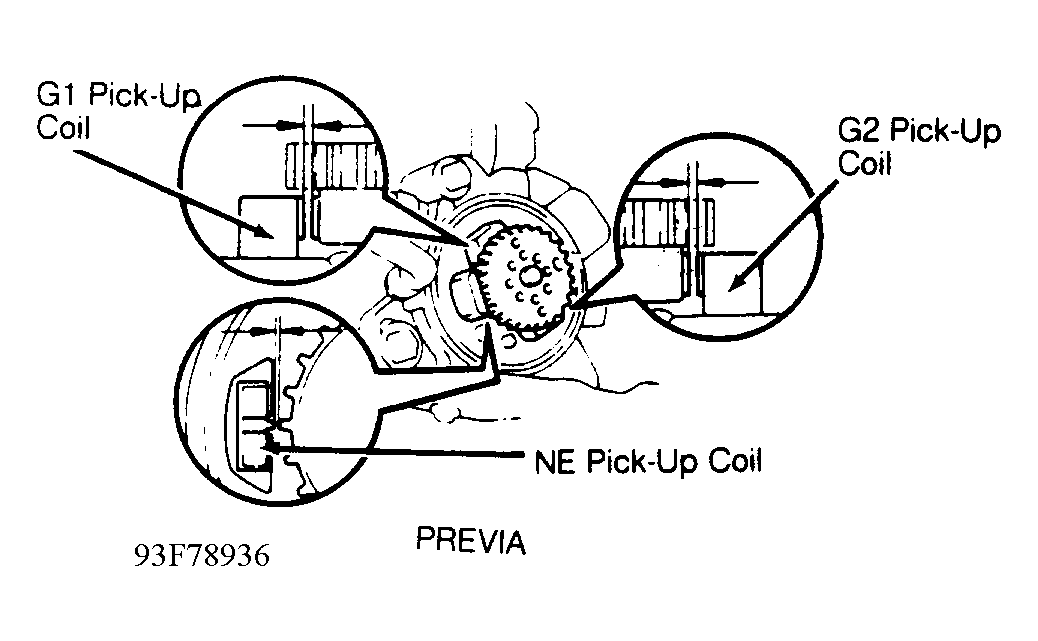

Fig 2: Checking Pick-Up Coil Air Gap (Previa)
