Code 21/Test 3 - Oxygen Sensor Signal

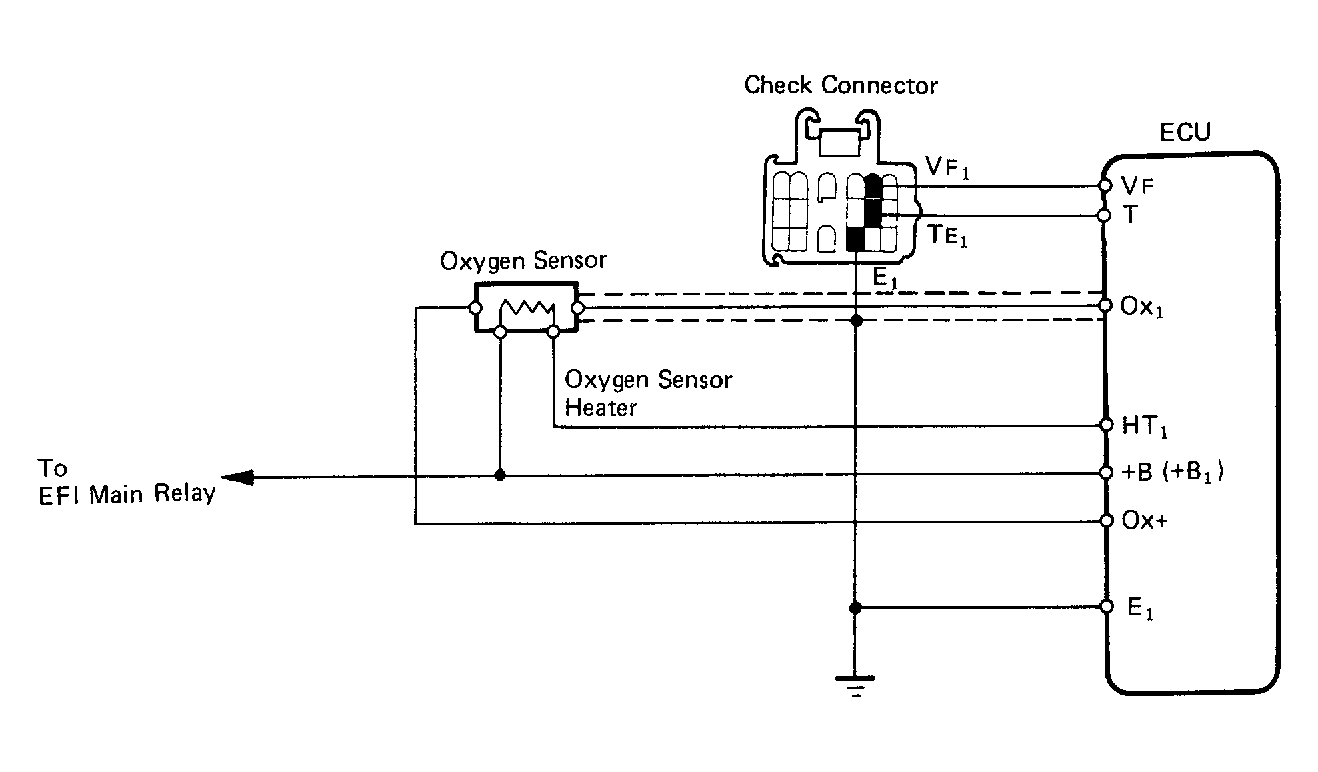

Fig 1: Code 21/Test No. 3 Schematic (Pickup) Oxygen Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

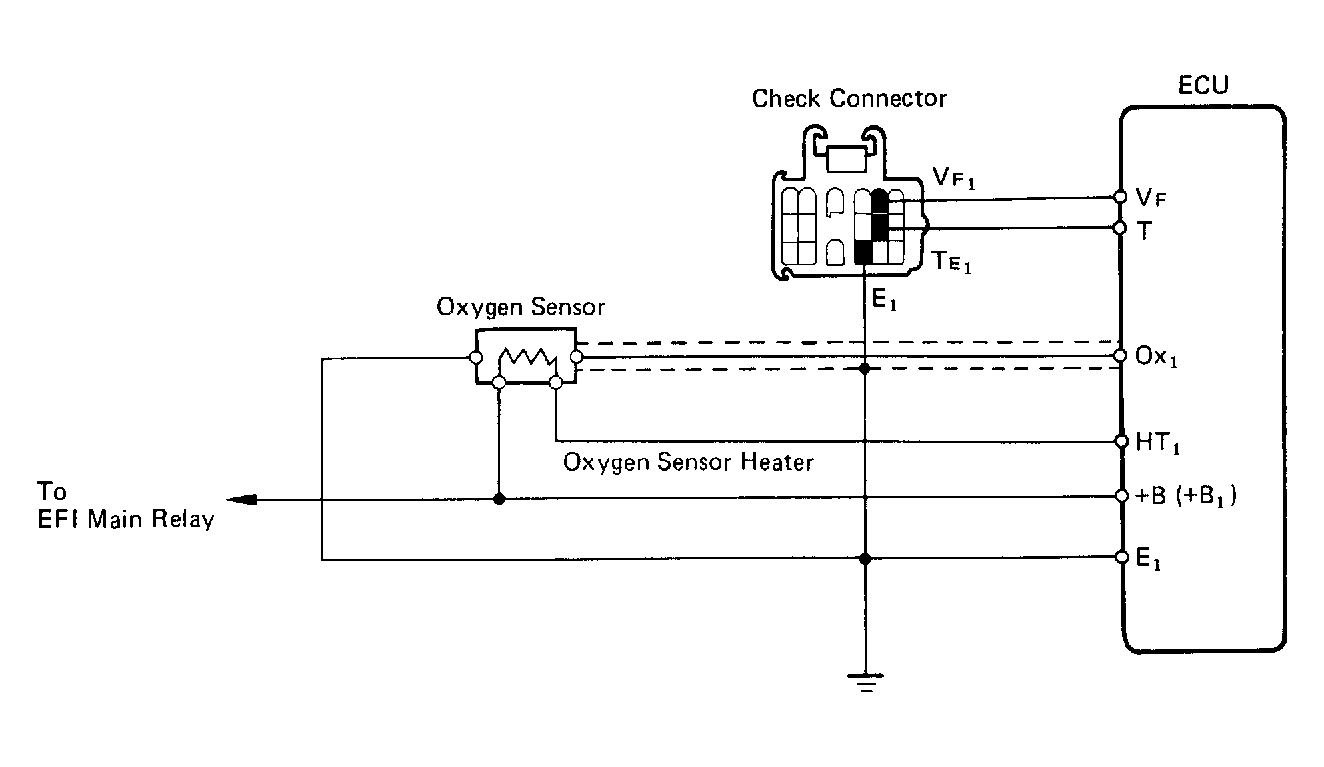

Fig 2: Code 21/Test No. 3 Schematic (4Runner) Oxygen Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

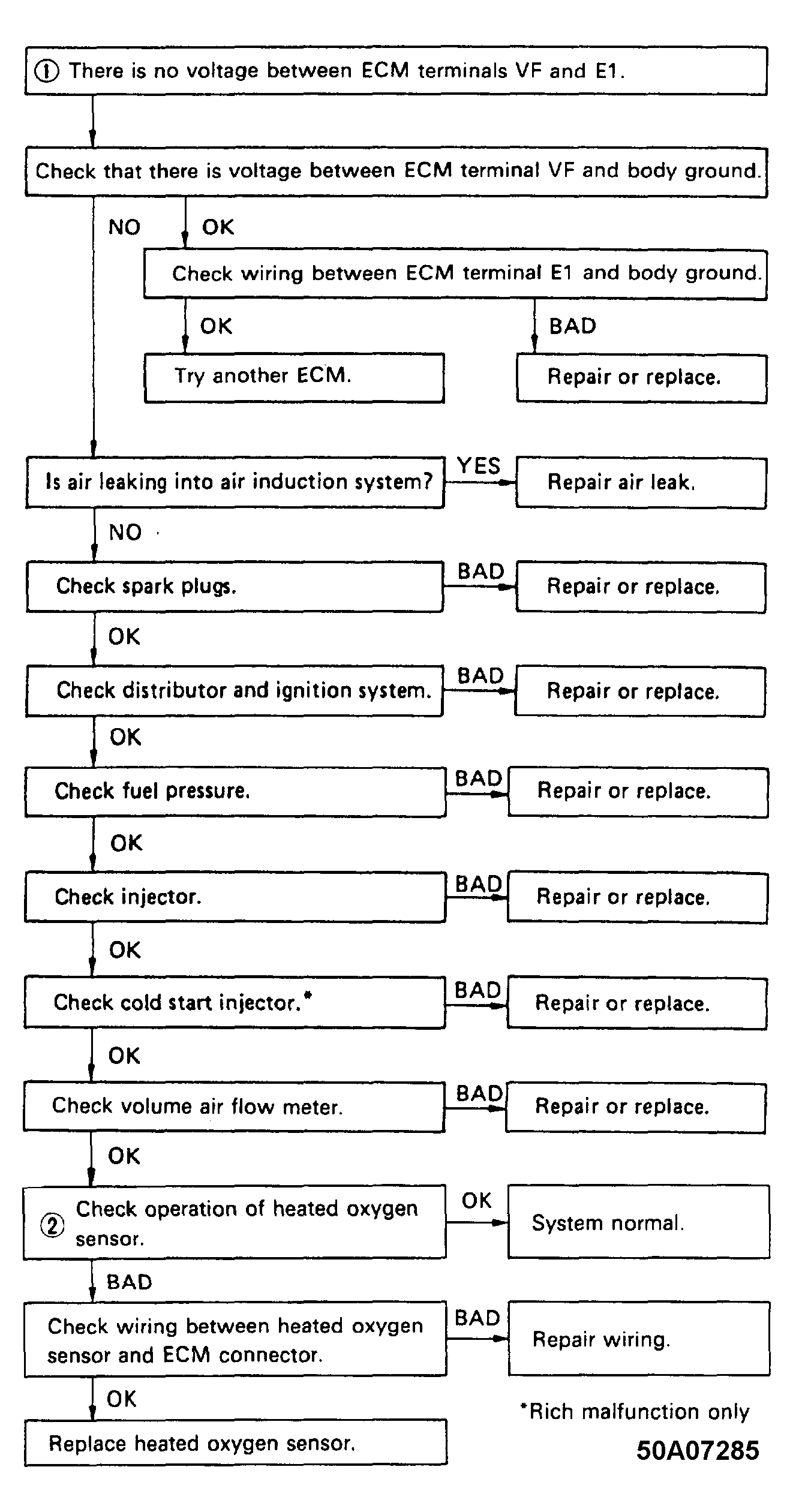

Fig 3: Code 21/Test No. 3 Flow Chart Oxygen Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
