Code 71 - EGR System Malfunction

Fig 1: Code 71 Schematic - EGR System Malfunction
G93A79491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

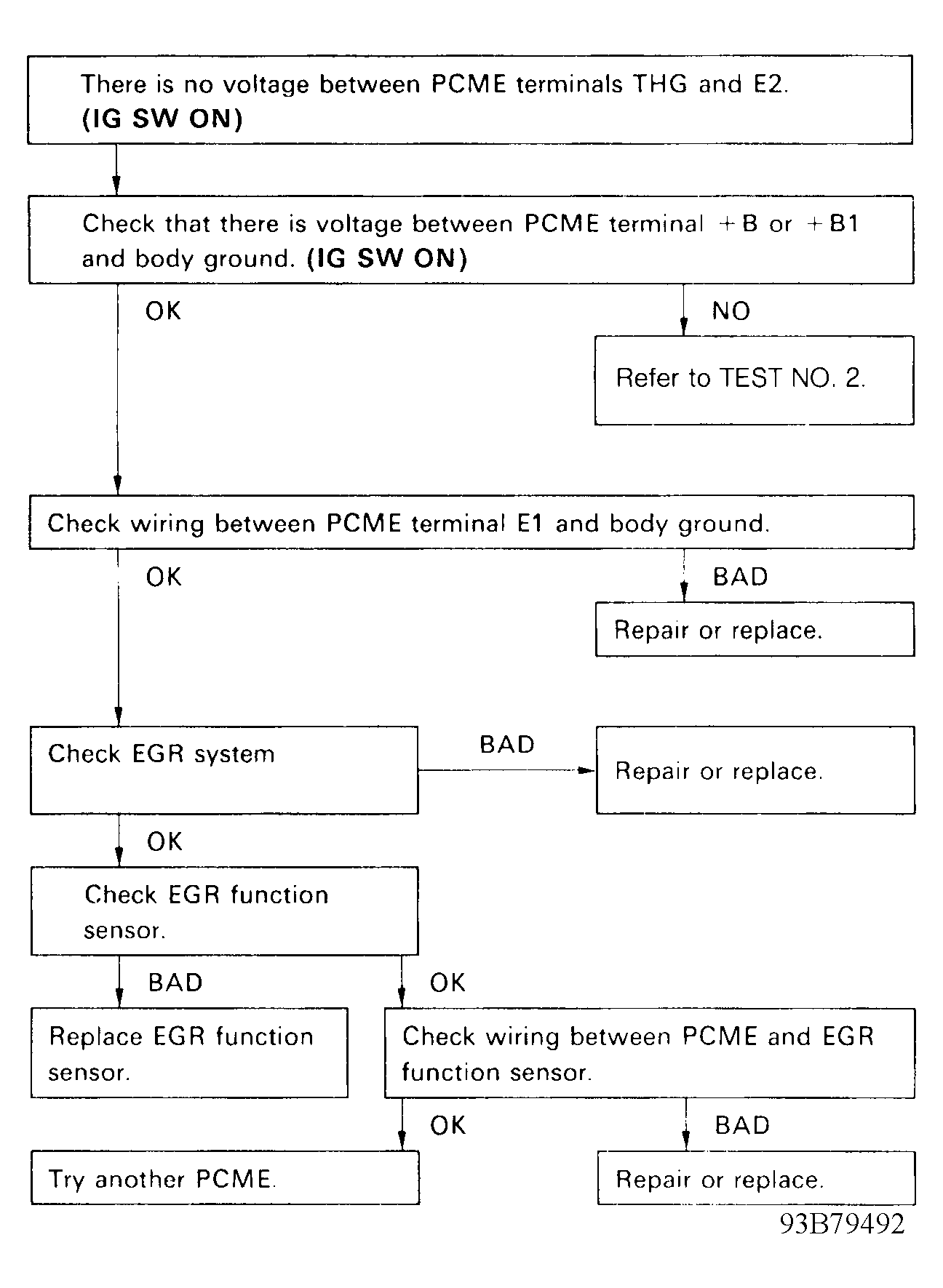

Fig 2: Code 71 Flow Chart - EGR System Malfunction
G93B79492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
