Anti-Lock Brake System: Wiring Diagram

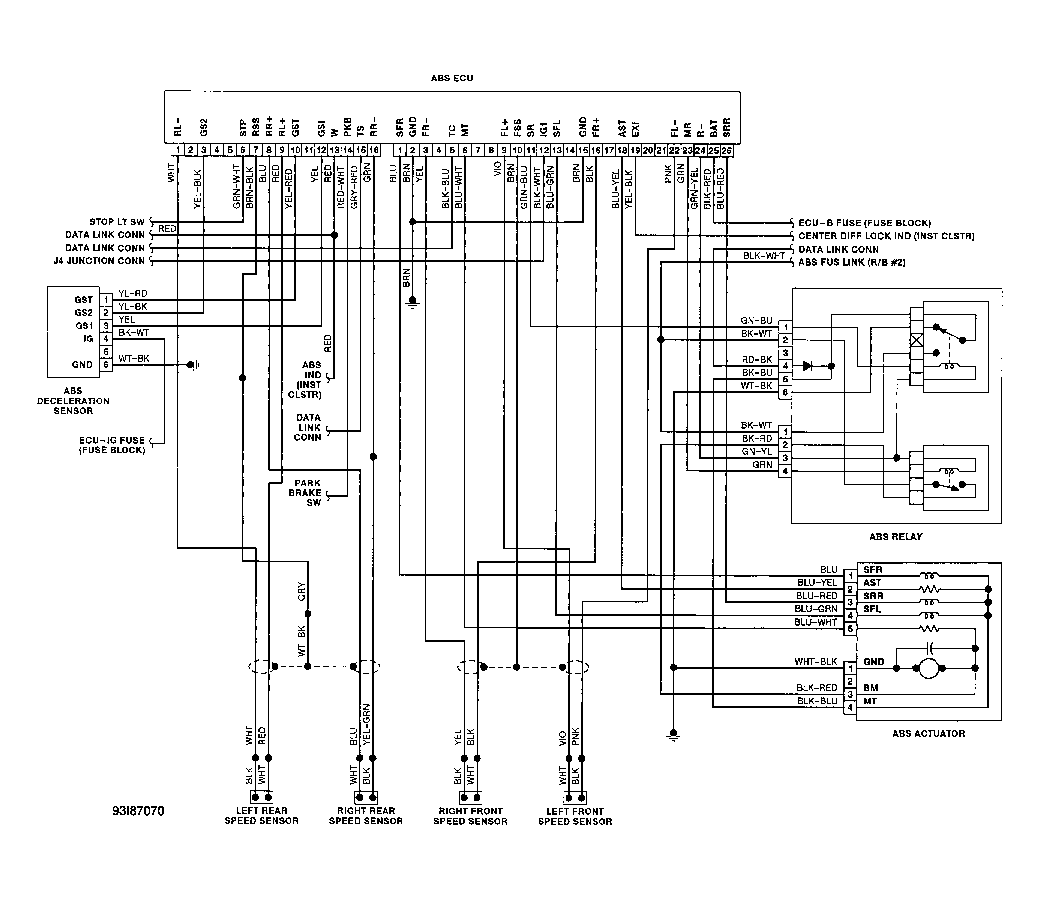

Fig 1: Anti-Lock Brake System (ABS) Wiring Diagram (Land Cruiser)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
