Abs Warning Light Circuit
Abs Warning Light Circuit

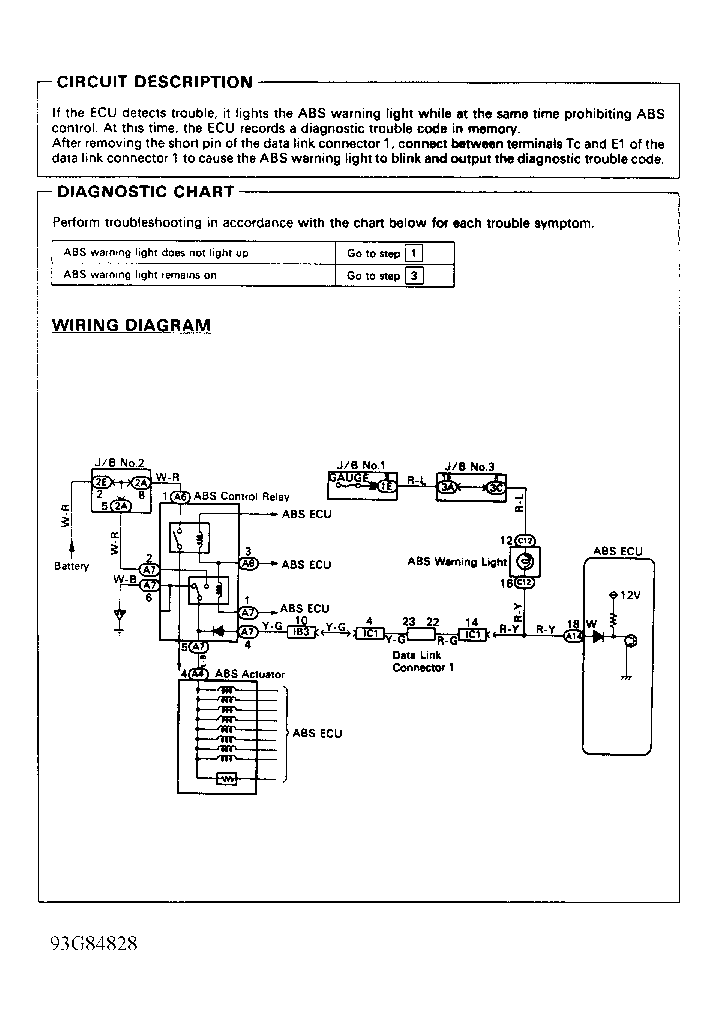

Fig 1: ABS Warning Light Circuit (1 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: ABS Warning Light Circuit (2 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: ABS Warning Light Circuit (3 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: ABS Warning Light Circuit (4 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
