Testing Anti-Theft Circuits: Notes
NOTE:

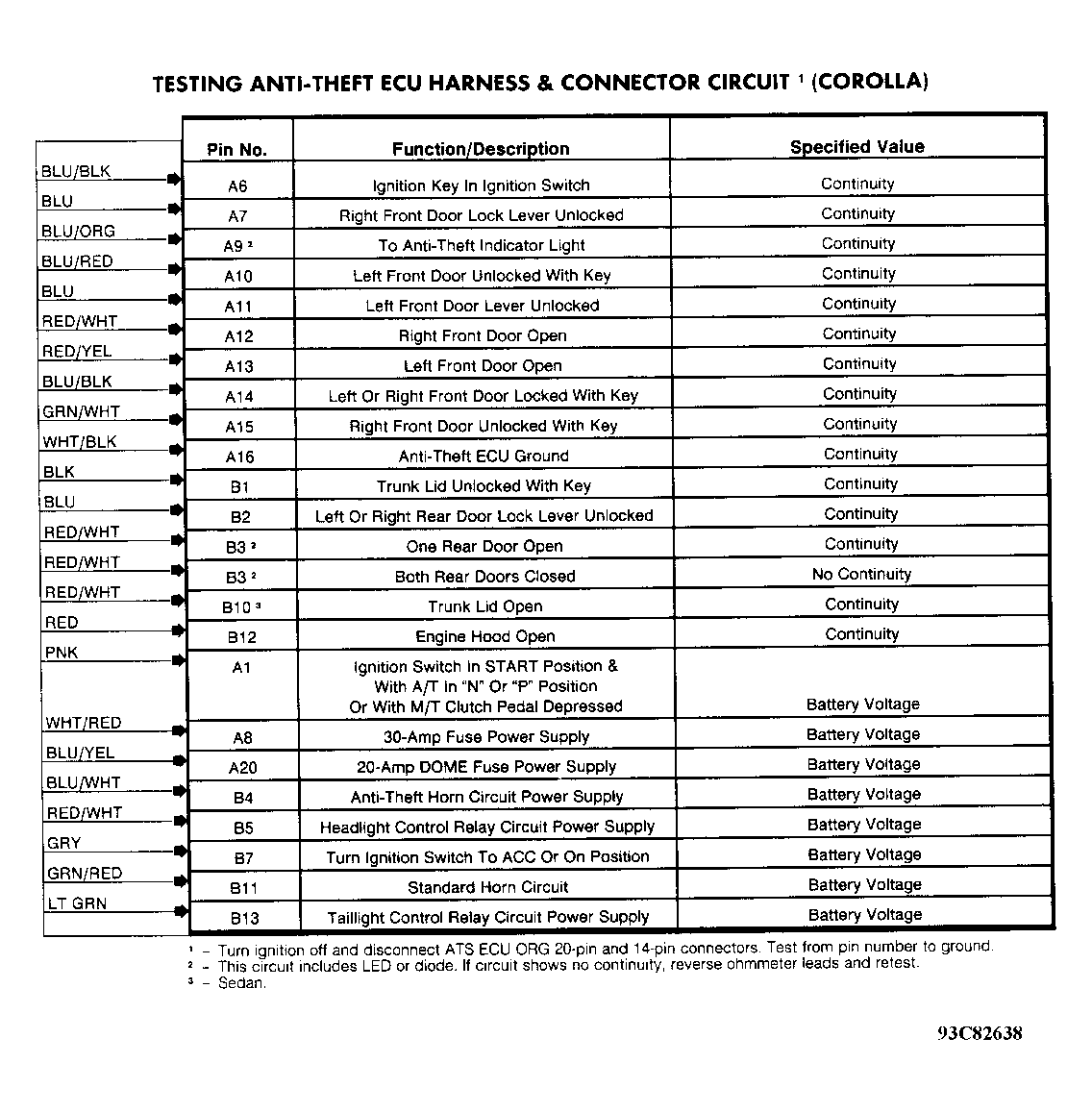

Perform all tests using a volt-ohmmeter with a minimum 10-megohm input impedance. See Fig 1 and Fig 2
for additional circuit testing.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
