Code 43 - Starter Signal

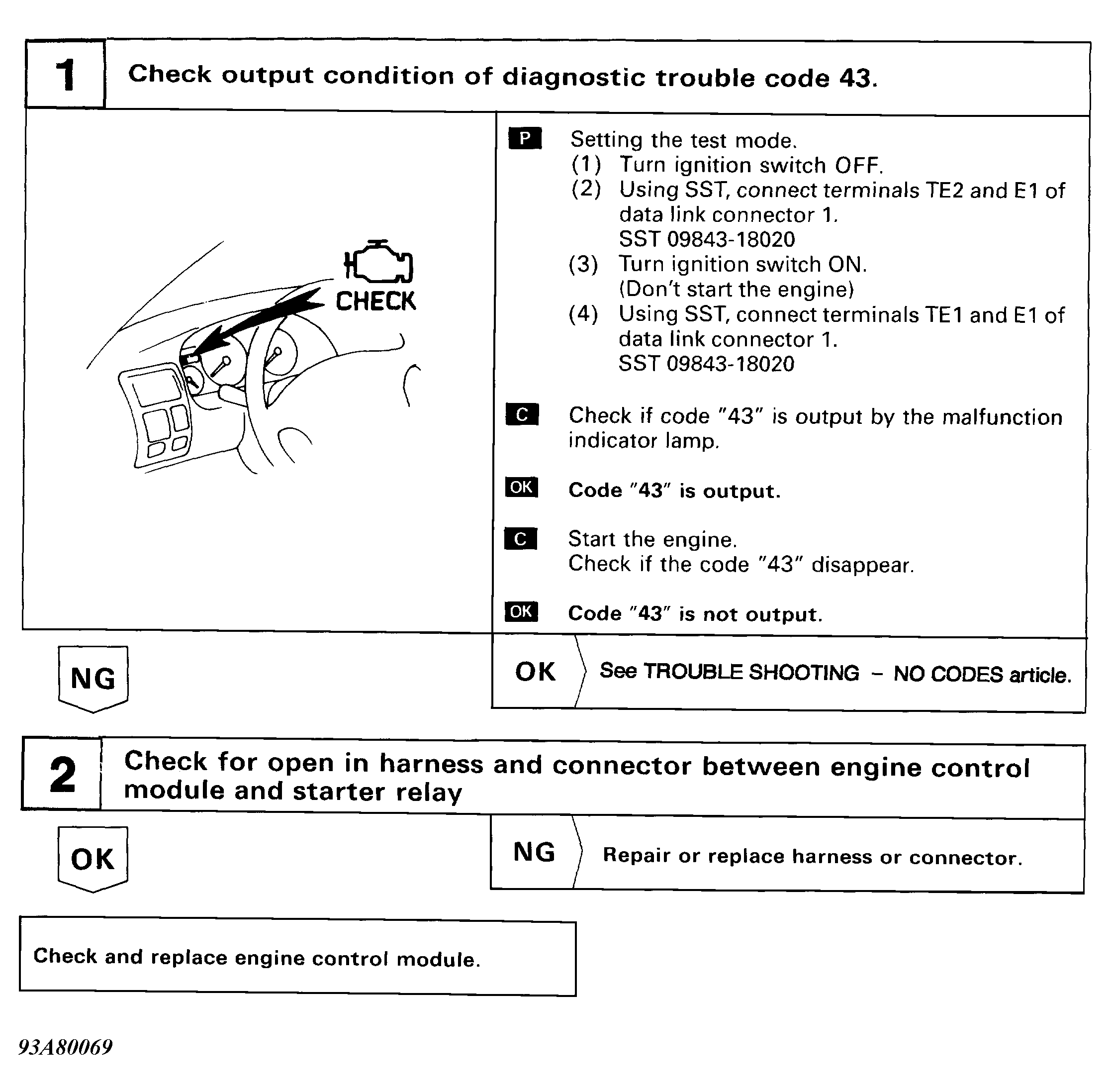

Fig 1: Code 43 Flow Chart - Starter Signal

G93A80069

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
