Test 1 - ECM Power Source

TEST 1-ECM POWER SOURCE TROUBLE

Terminals	Trouble	Condition	STD Voltage
BATT - E1	No Voltage	All	10-14V

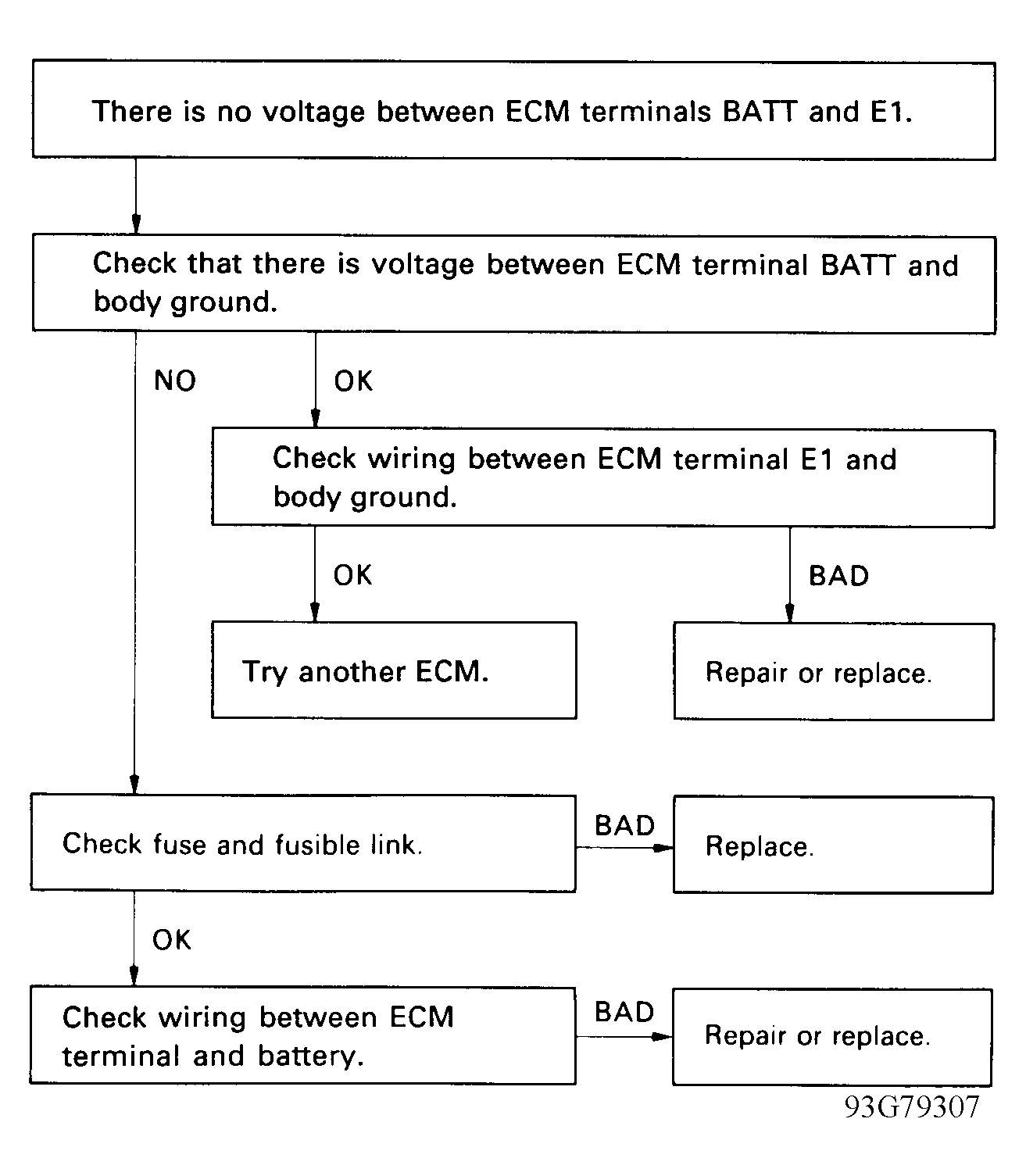

Fig 1: Test No. 1 Flow Chart - ECM Power Source

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

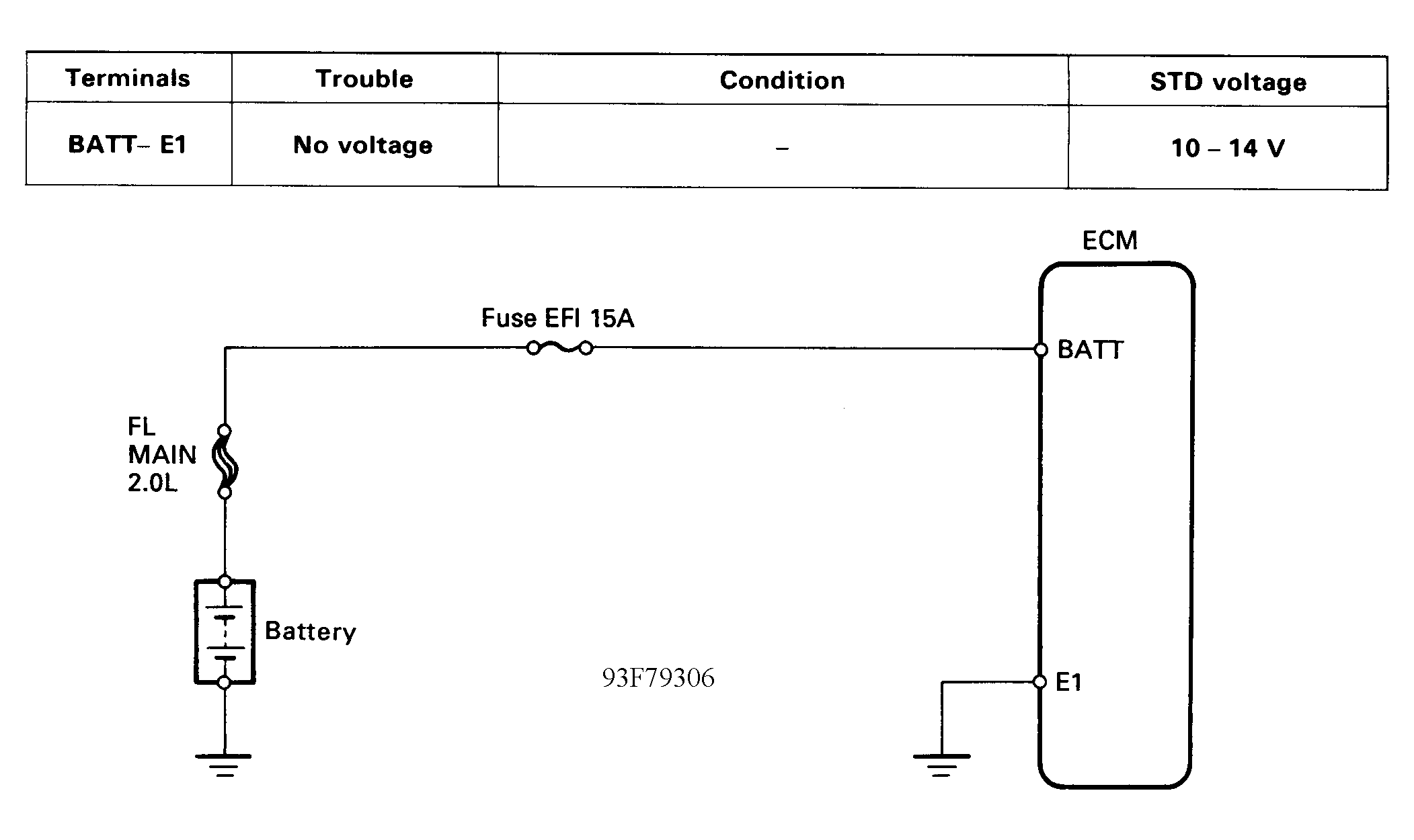

Fig 2: Test No. 1 Schematic - ECM Power Source
