Diagnostic Circuit Check

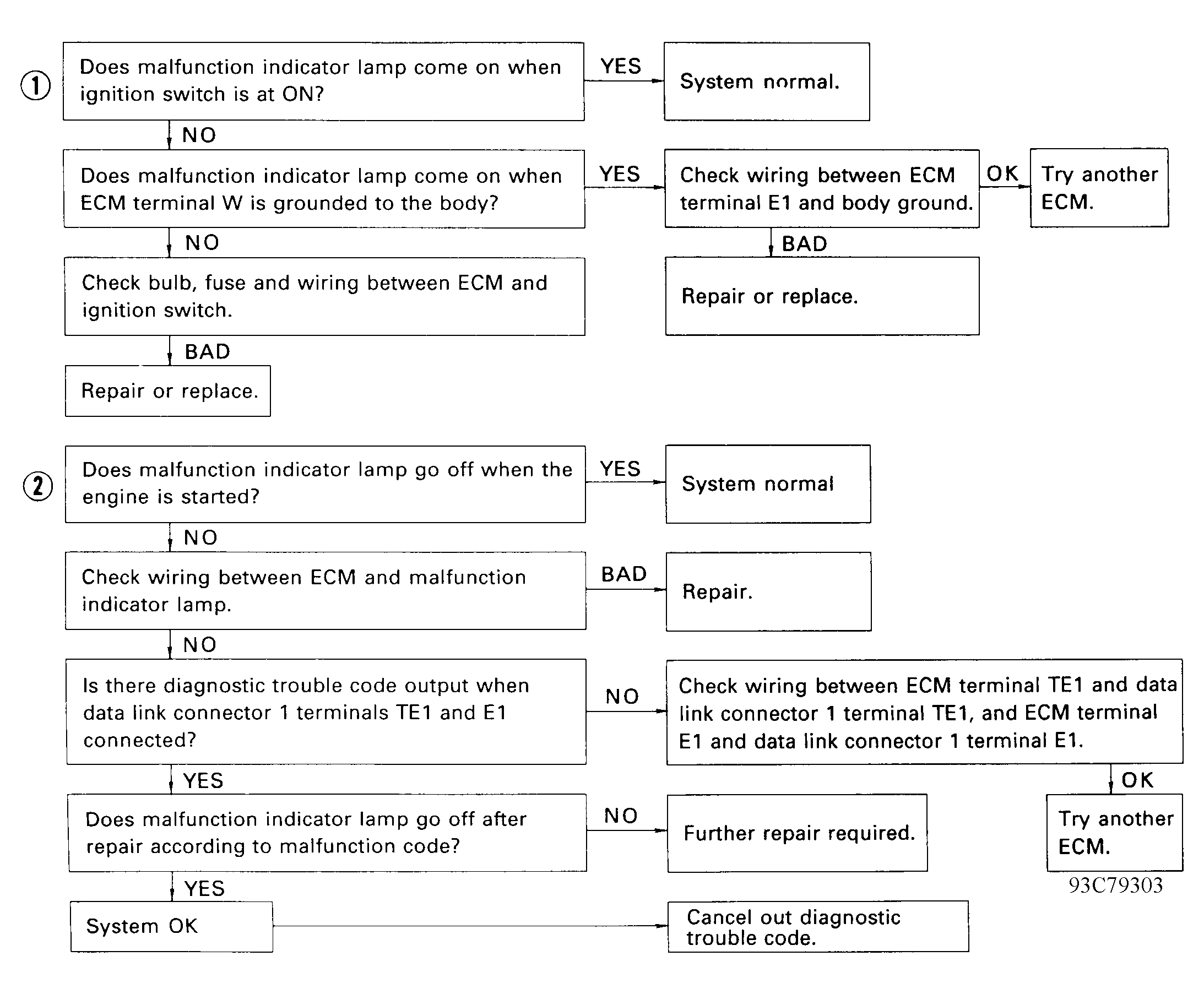

Fig 1: Diagnostic Circuit Check Flow Chart
G93C79303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

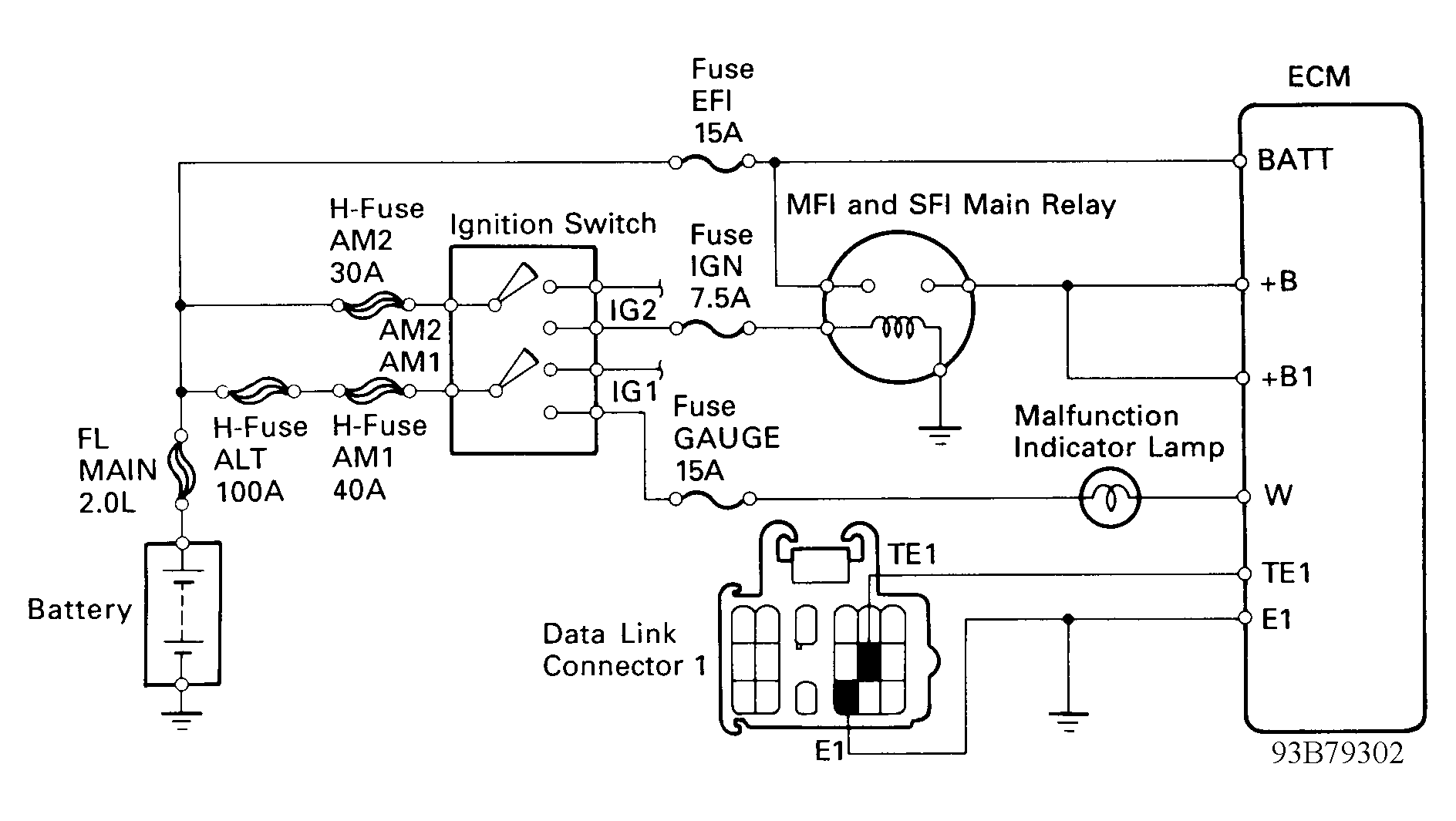

Fig 2: Diagnostic Circuit Check Schematic
G93B79302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
