Code 71/Test 12 - EGR System Malfunction

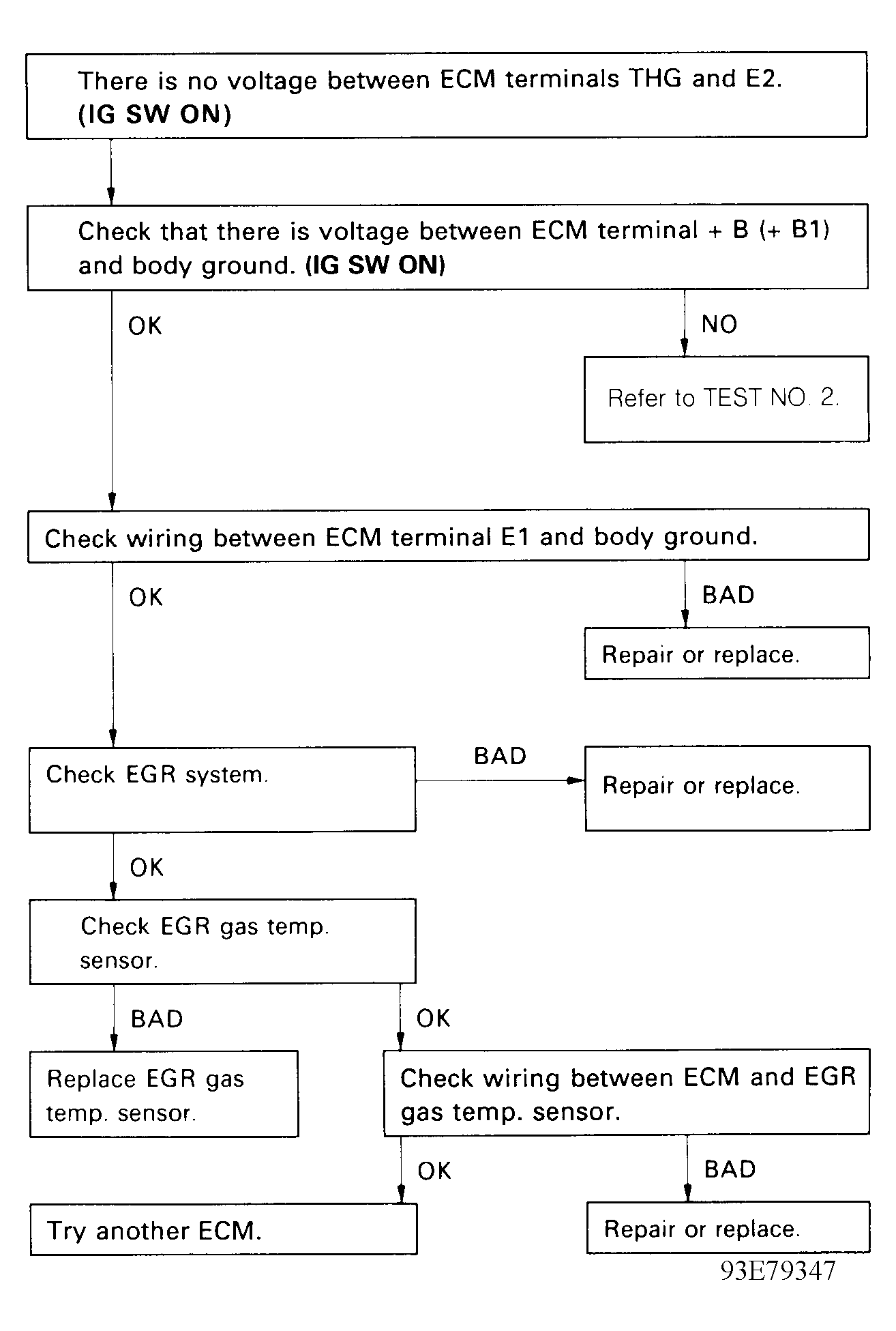

Fig 1: Code 71/Test No. 12 Flow Chart EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Code 71/Test No. 12 Schematic EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
