Code 14/Test 3 - Ignition Signal

NOTE: To check ignition system components, see the article SYSTEM/COMPONENT TESTS in this section.

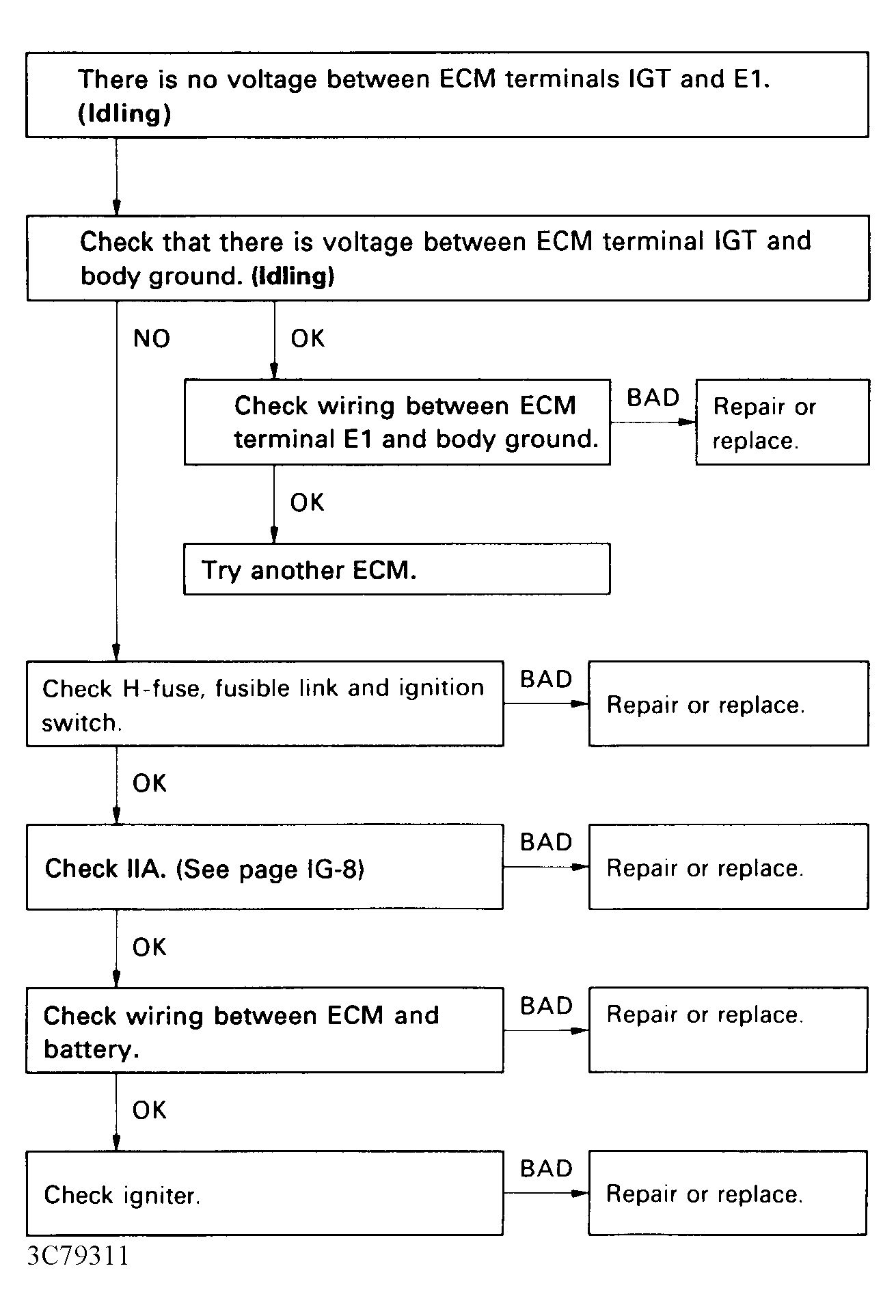

Fig 1: Code 14/Test No. 3 Flow Chart (All Engines) Ignition Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CODE 14/TEST 3-IGNITION SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
IGT - E1	No Voltage	Idling	0.8-1.2V

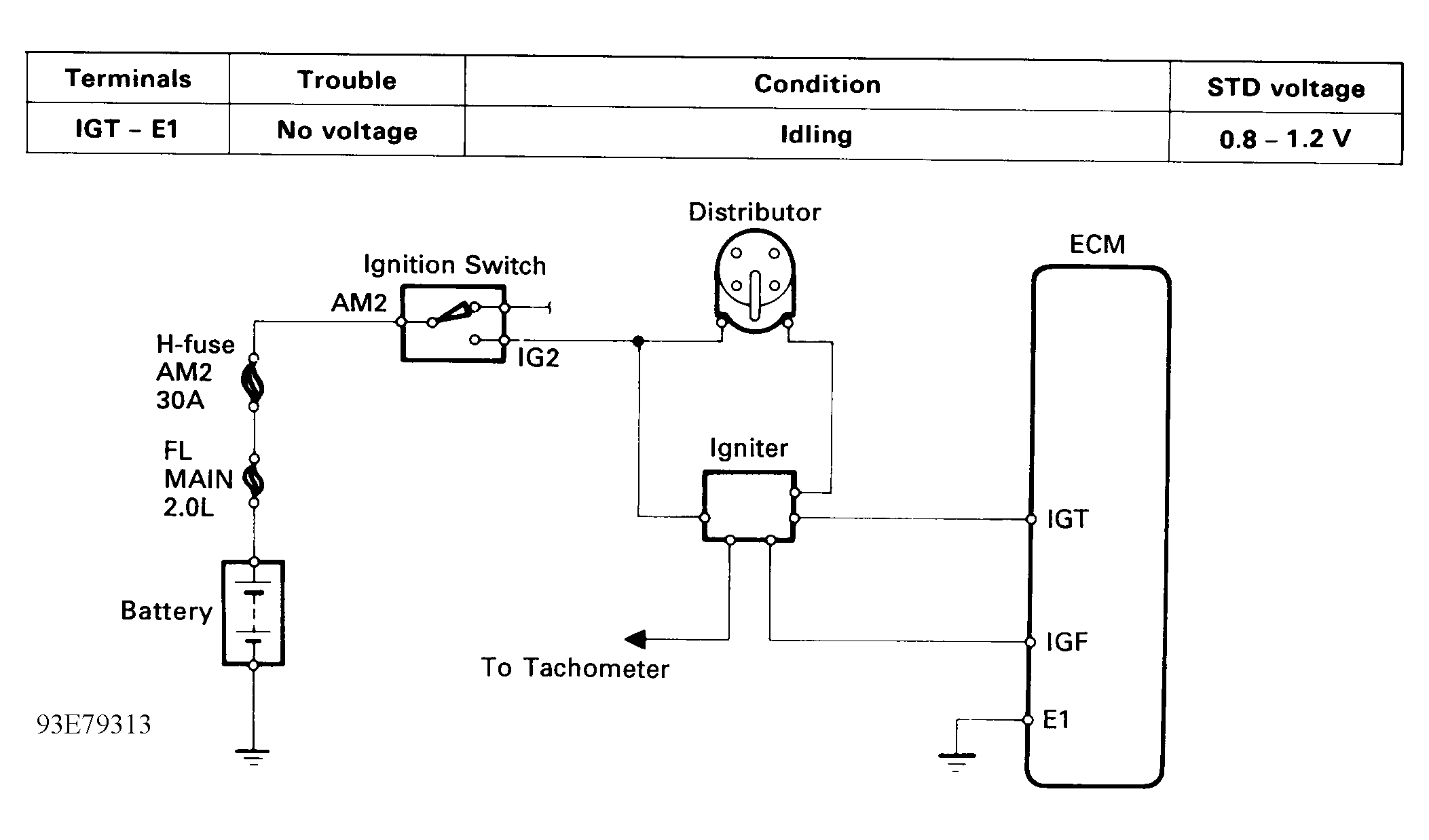

Fig 2: Code 14/Test No. 3 Schematic (3S-GTE) Ignition Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CODE 14/TEST 3-IGNITION SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
IGT - E1	No Voltage	Idling	0.7 - 1.0V

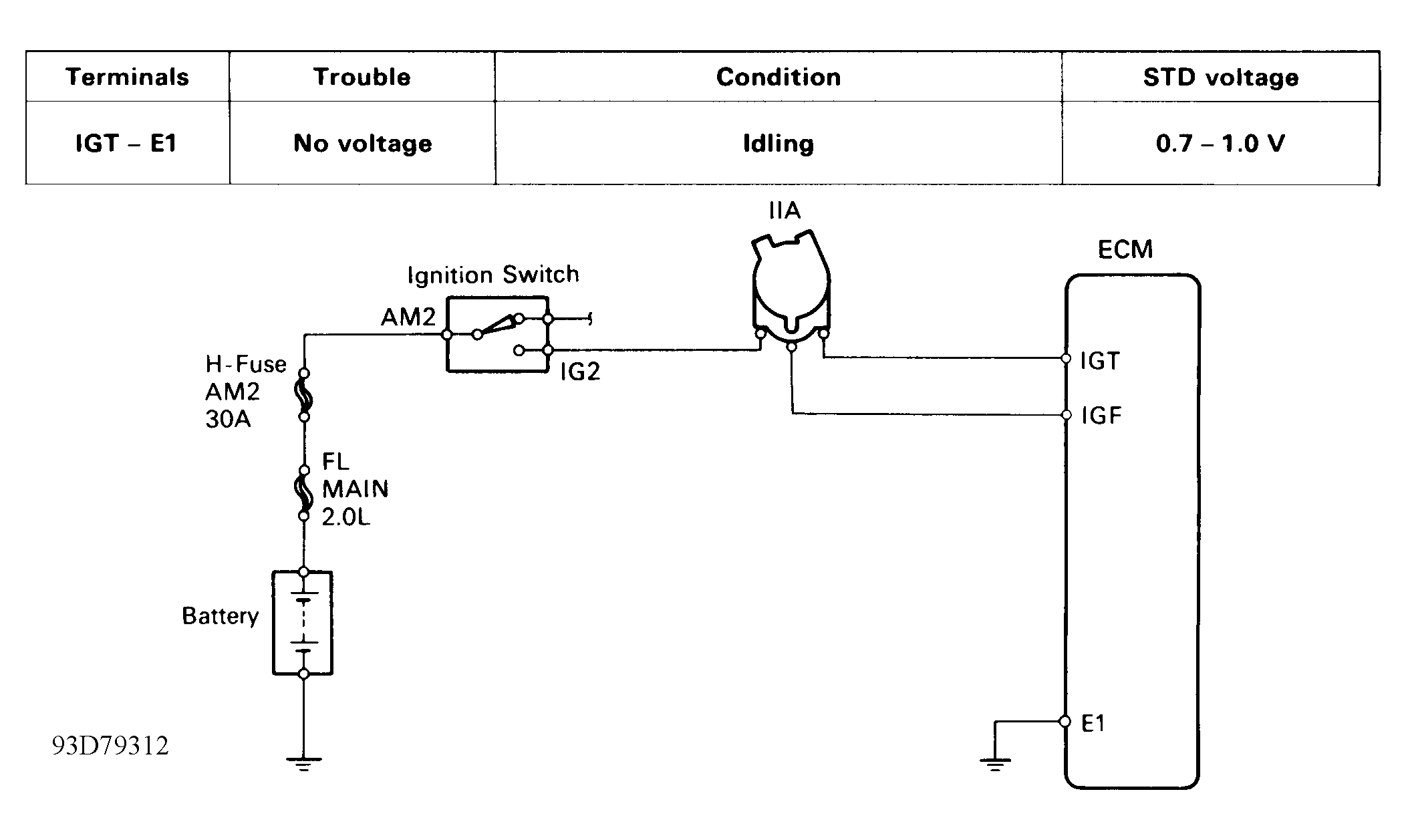

Fig 3: Code 14/Test No. 3 Schematic (4A-FE) Ignition Signal

CODE 14/TEST 3-IGNITION SIGNAL TROUBLE

No.	Terminals	Trouble	Condition	STD Voltage
9	IGT - E1	No Voltage	Idling	0.8-1.2V

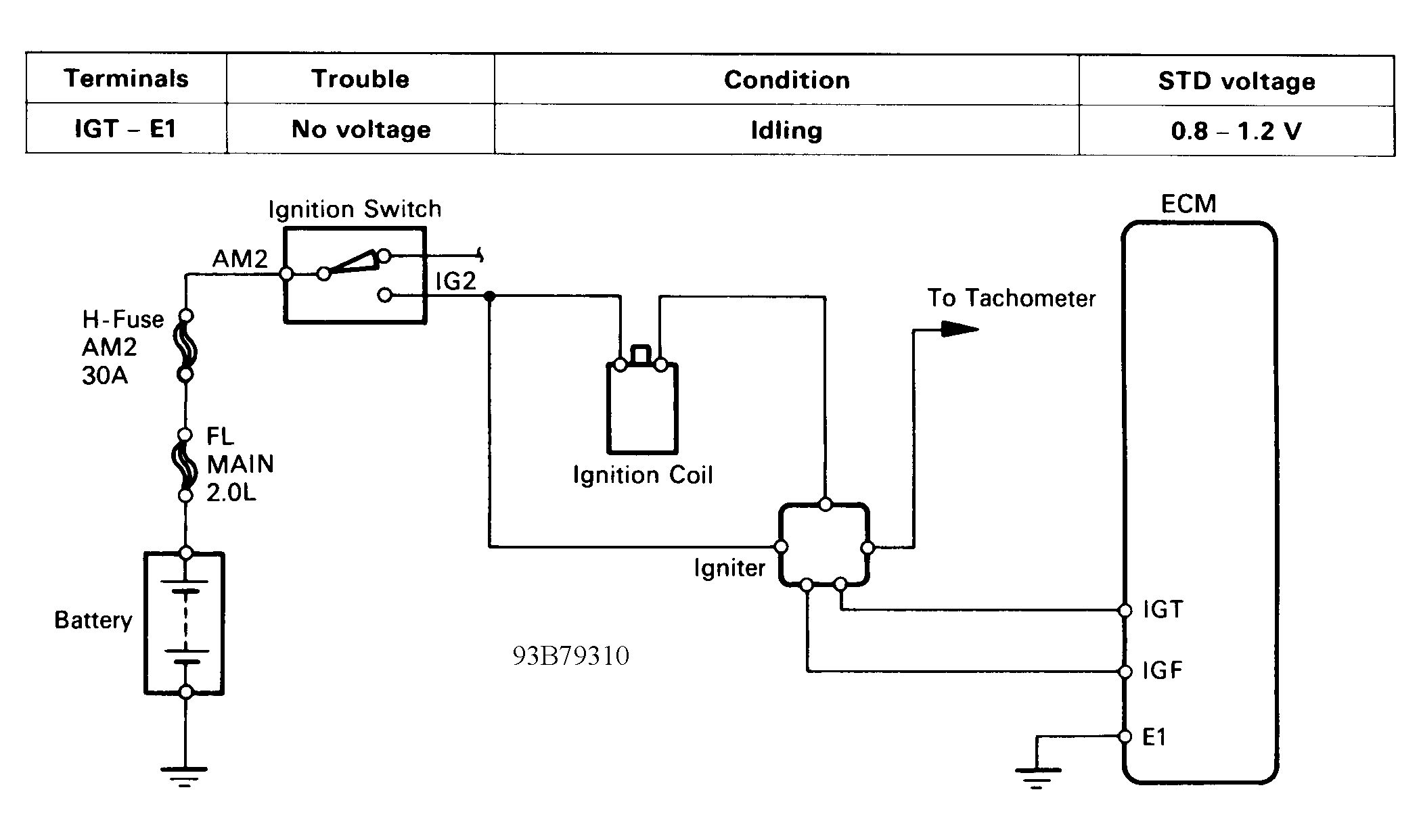

Fig 4: Code 14/Test No. 3 Schematic (5S-FE) Ignition Signal
