Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse/Relay Blocks | ||

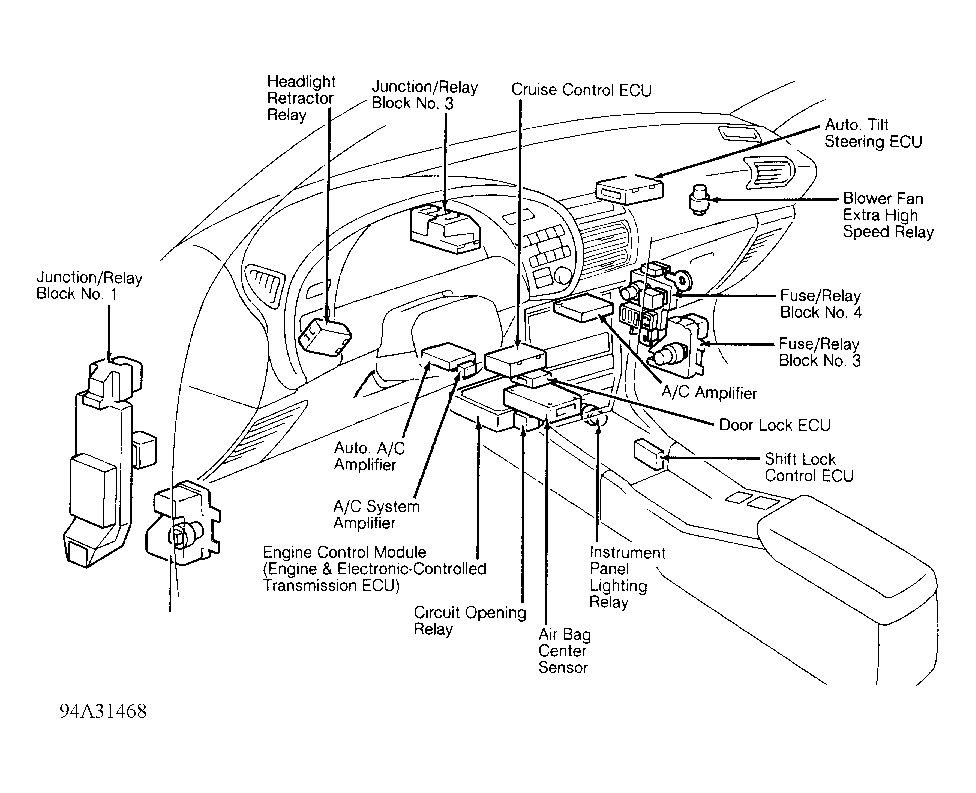

| No. 2 | Beside junction/relay block No. 1, behind left kick panel. See Figure. | |
| No. 3 | Behind right kick panel. See Figure. | |
| No. 4 | Behind right kick panel. See Figure. | |
| No. 5 | Right front corner of engine compartment. See Figure. | |
| Junction/Relay Blocks | ||
| No. 1 | Behind left kick panel. See Figure. | |
| No. 4 | In engine compartment, near battery. | |
| No. 3 | Behind left side of dash, behind instrument cluster. See Figure. | |
