Test No. 1-ECM Power Source

TEST NO. 1 - ECM POWER SOURCE TROUBLE

Terminals	Trouble	Condition	STD Voltage
BATT - E1	No Voltage	All	10 - 14V

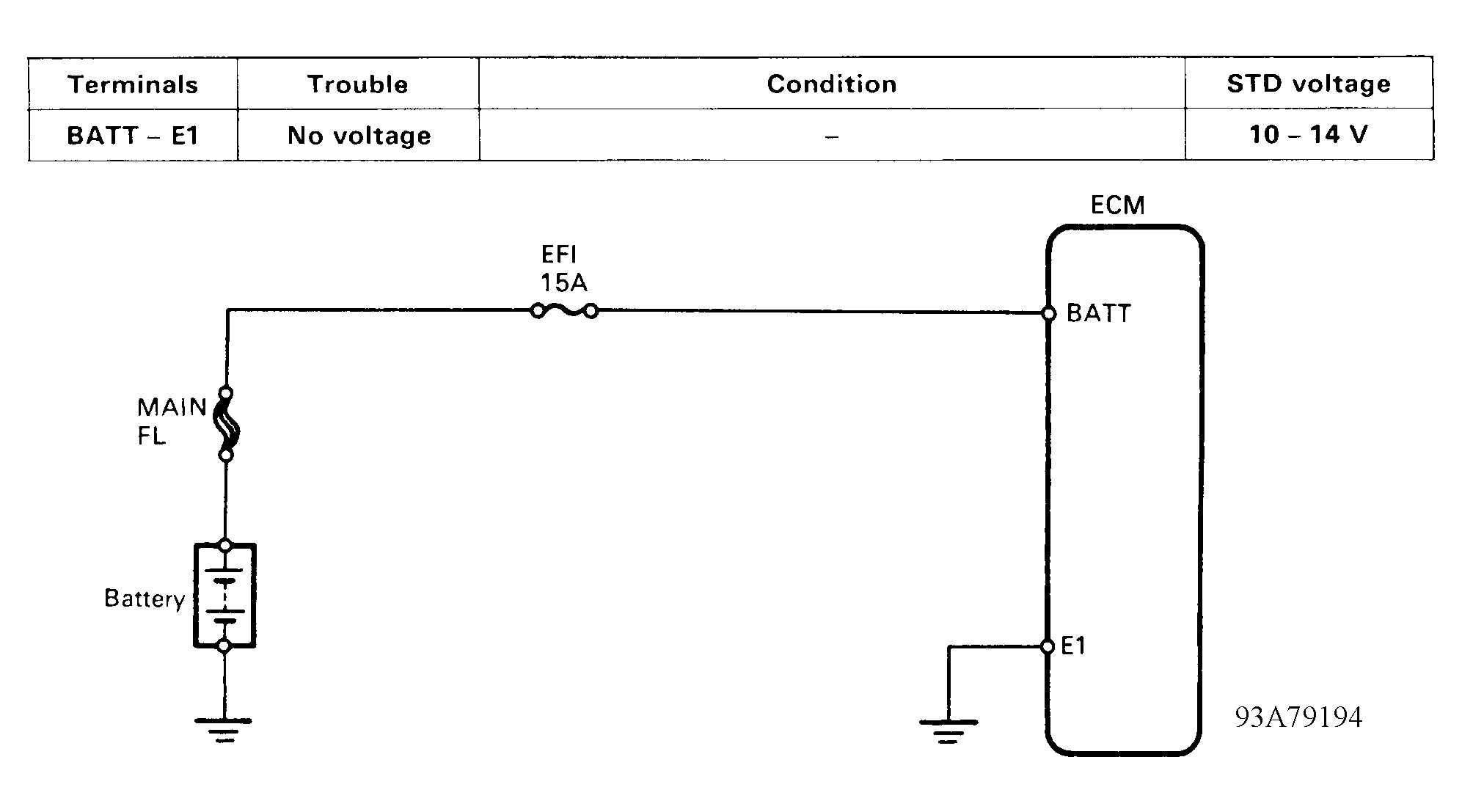

Fig 1: Test No. 1 Schematic ECM Power Source

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

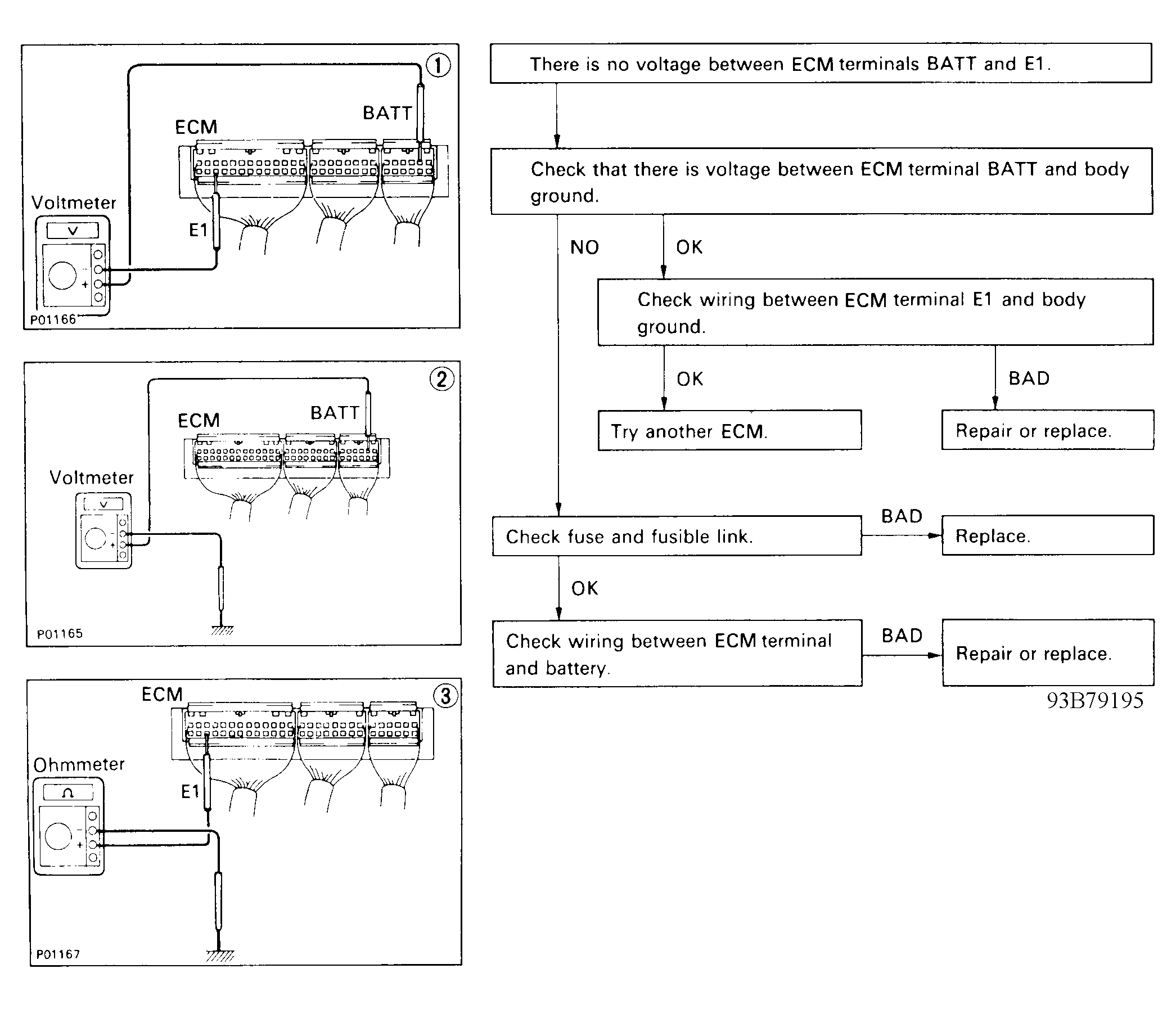

Fig 2: Test No. 1 Flow Chart ECM Power Source
