Code 71 - EGR System Malfunction

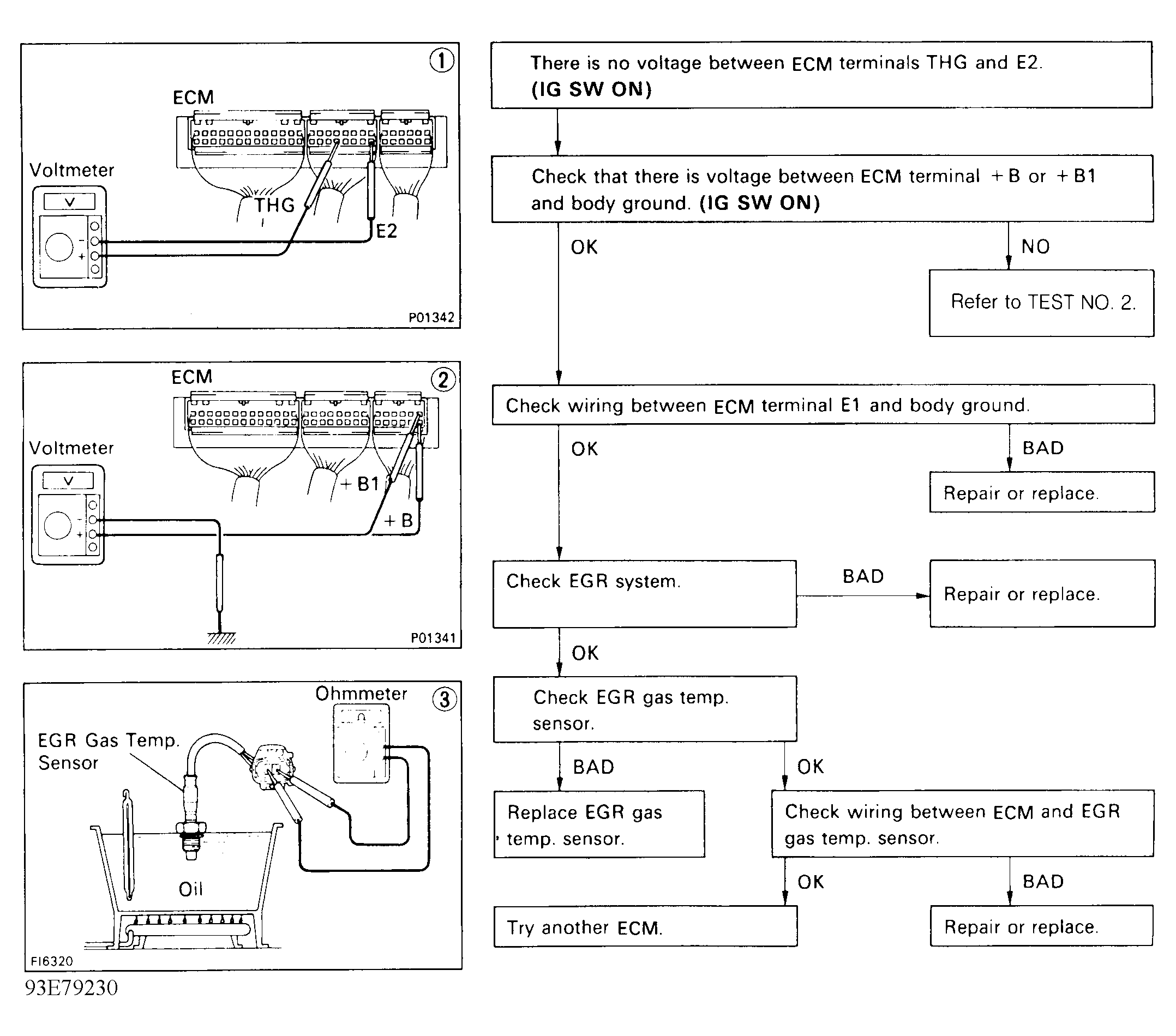

Fig 1: Code 71/Test No. 11 Flow Chart EGR System Malfunction
G93E79230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Code 71/Test No. 11 Schematic EGR System Malfunction
G93B79229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
