Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

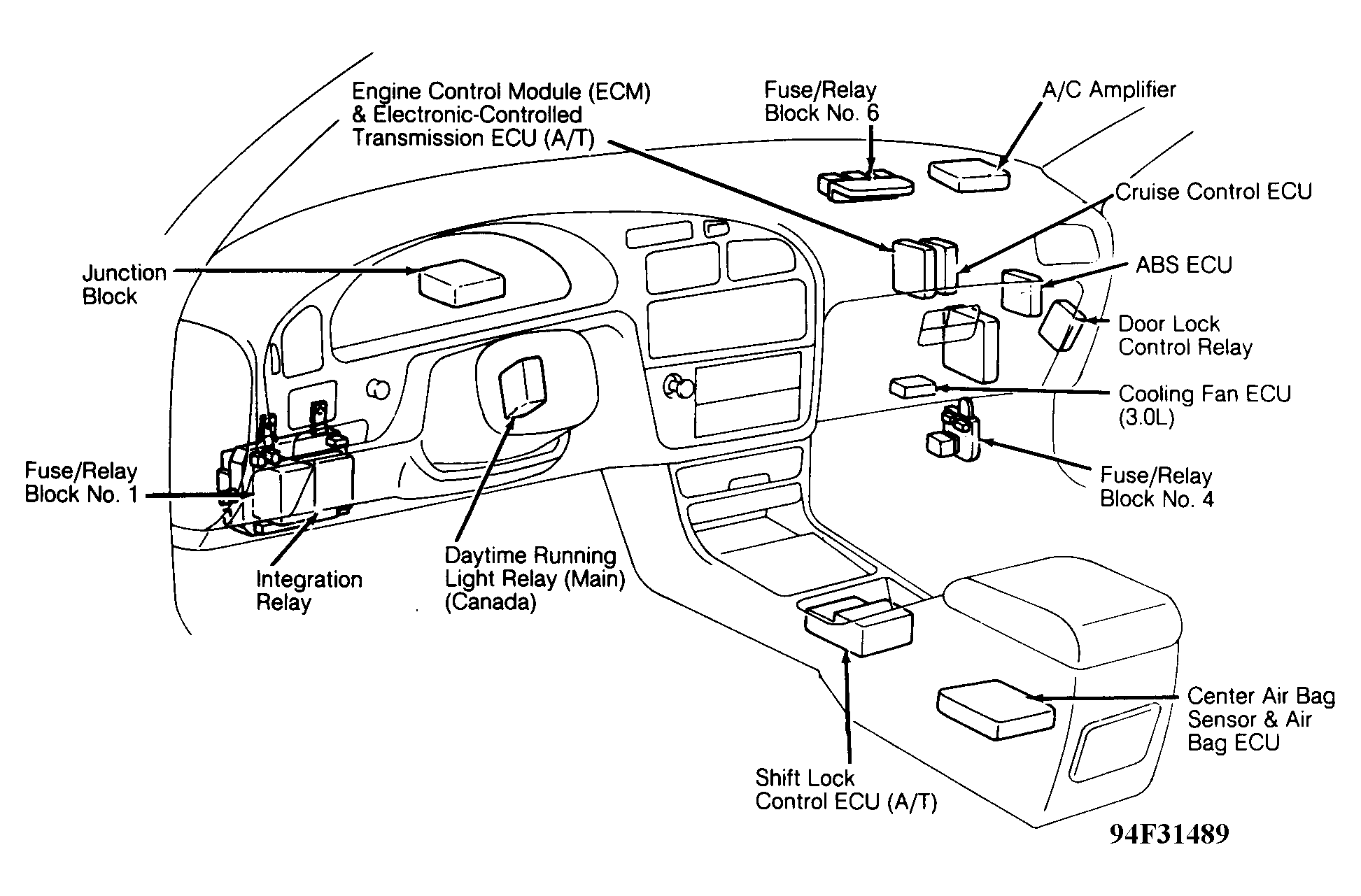

| ABS ECU | Behind right side of dash, above kick panel. See Figure. |
| Air Bag ECU | Under rear of center console. See Figure. |
| Cooling Fan ECU (3.0L) | Mounted below glove box, to right of fuse/relay block No. 4. See Figure. |
| Cruise Control ECU | Behind right side of dash, above glove box, right of ECM. See Figure. |
| Electronic Controlled Transmission ECU (A/T) | Behind right sid of dash, above glove box, right of ECM. See Figure. |
| Engine Control Module (ECM) | Behind right side of dash, above glove box. See Figure. |

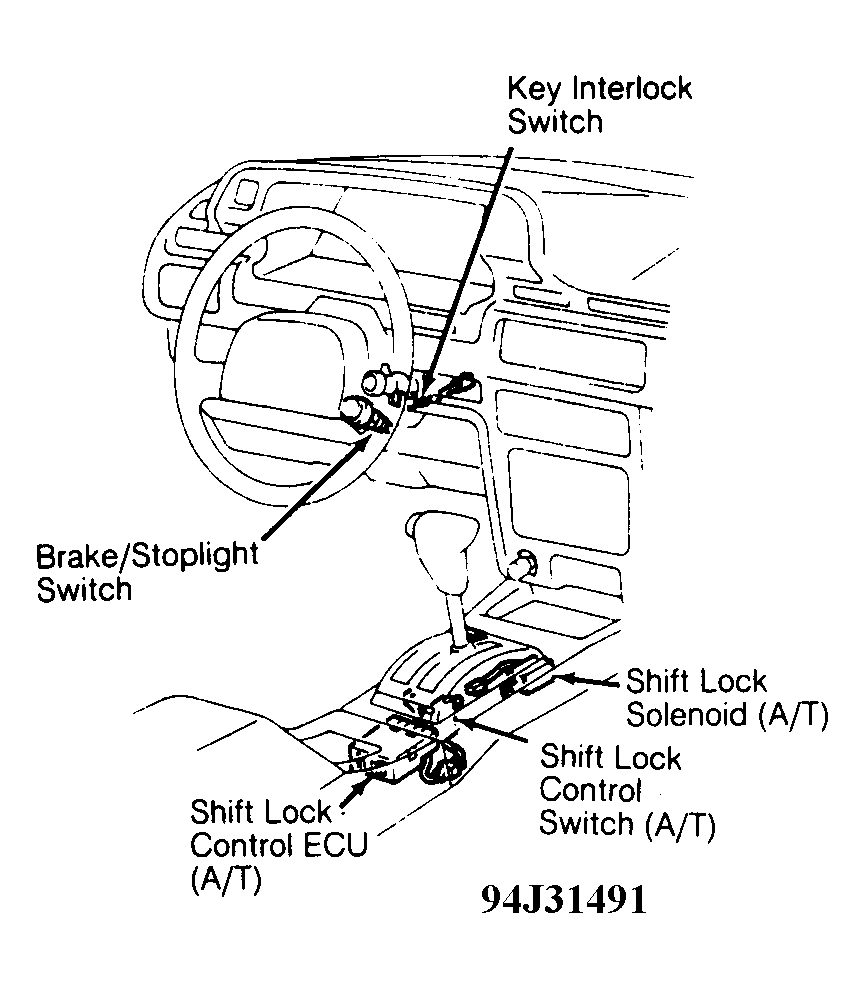

| Shift Lock Control ECU (A/T) | Under center console, behind gear selector. See Figure & Figure . |
