Steering Column - Standard: Overhaul: Corolla: Disassembly

1. Drill out tapered head bolts and use screw extractor to remove upper bracket bolts. Remove upper bracket from column tube.
2. Remove upper snap ring and remove steering column main shaft from column tube. Remove snap rings from main shaft. See Fig 1.

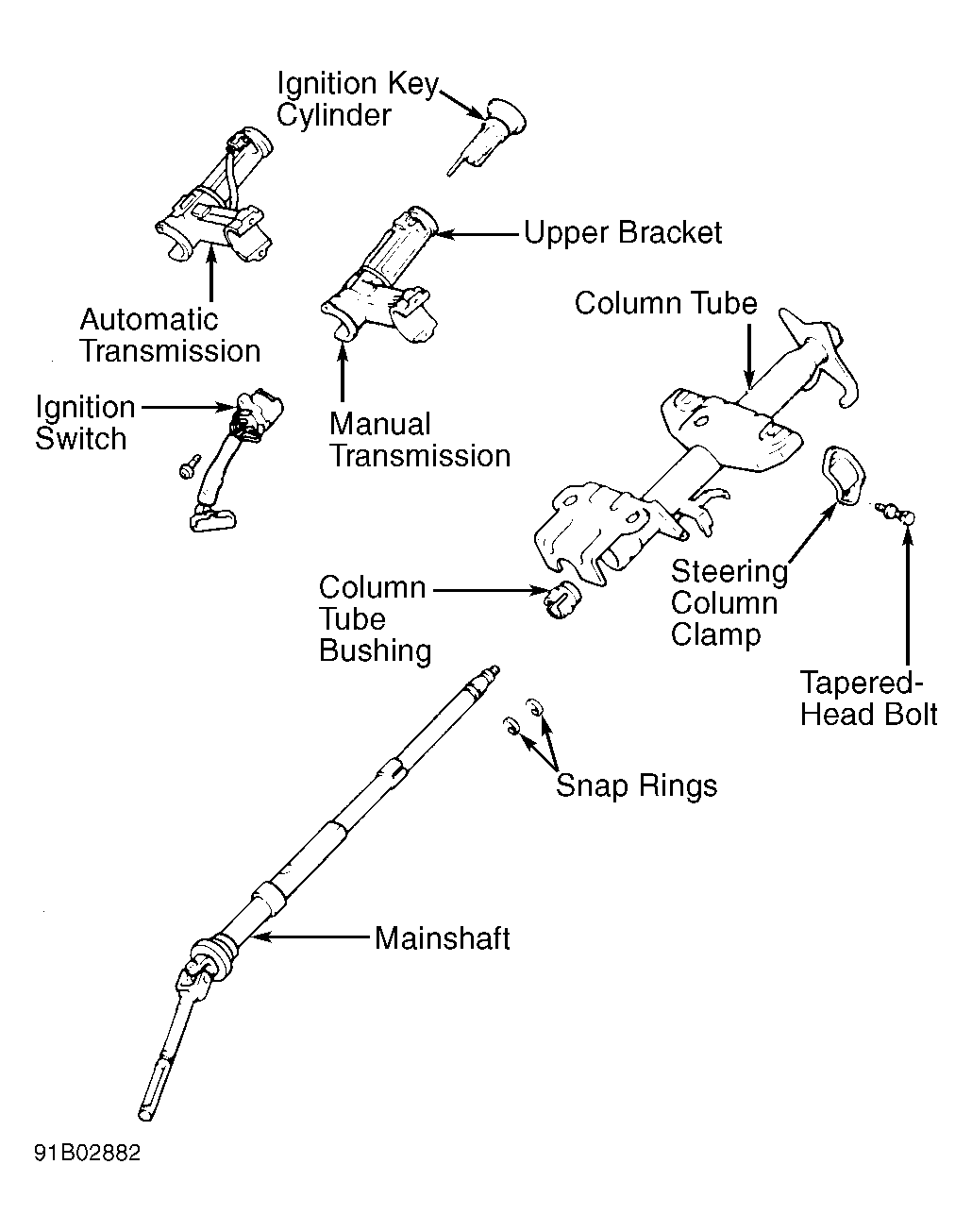

Fig 1: Exploded View Of Steering Column (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
