Neutral/Start Switch
WARNING: This page is about a different car, the 1992 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

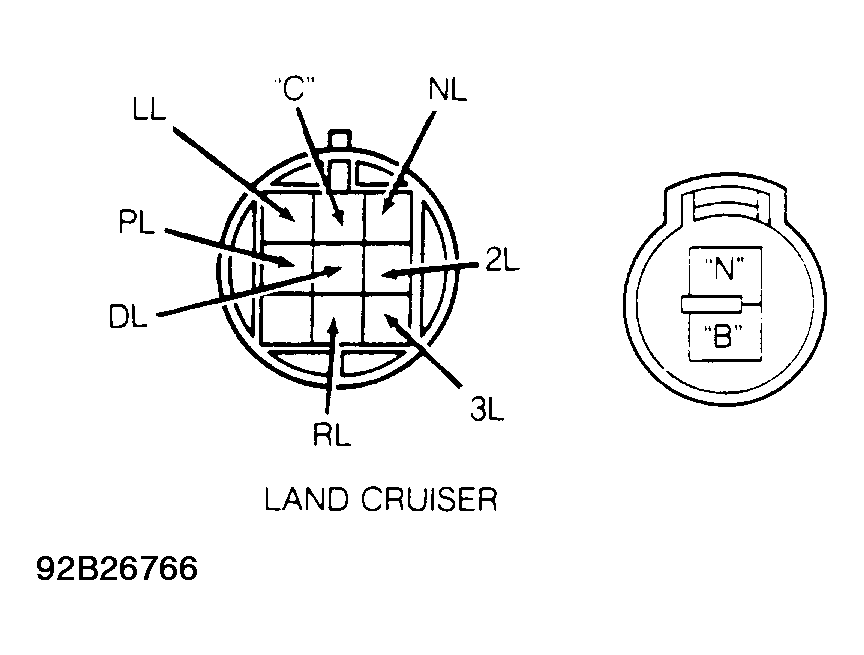

Disconnect electrical connector from neutral/start switch at transmission or transaxle. Note terminal identification. See Fig 1. Using ohmmeter, check for continuity at specified terminals with gearshift in proper positions. See NEUTRAL/START SWITCH SPECIFICATIONS table. Replace neutral/start switch if defective.
NEUTRAL/START SWITCH SPECIFICATIONS
| Application & Gearshift Position | Terminal Continuity |
|---|---|
| Park | "B" & "N", "C" & PL |
| Reverse | "C" & RL |
| Neutral | "B" & "N", "C" & NL |
| Drive | "C" & DL |
| 3 | "C" & 3L |
| 2 | "C" & 2L |
| Low | "C" & LL |
