Test No. 11 - Injector Circuit

TEST NO. 11-INJECTOR CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
No. 10, 20 & 30 To E01 & E02	No Voltage	Ignition Switch ON	10-14V

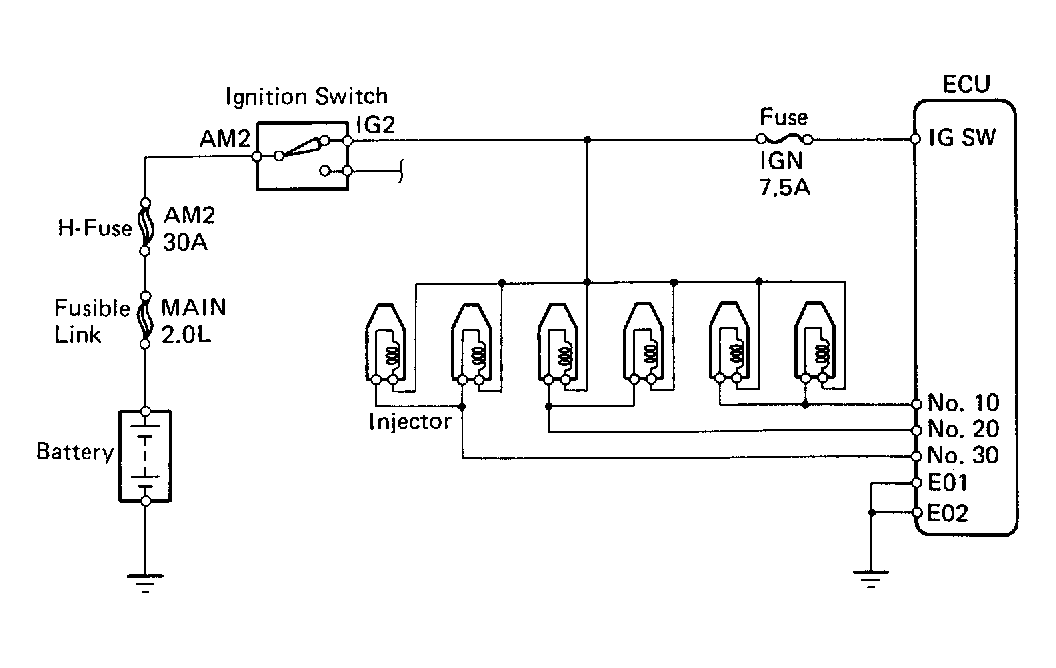

Fig 1: Test No. 11 Schematic (7M-GE Non-Turbo) Injector Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

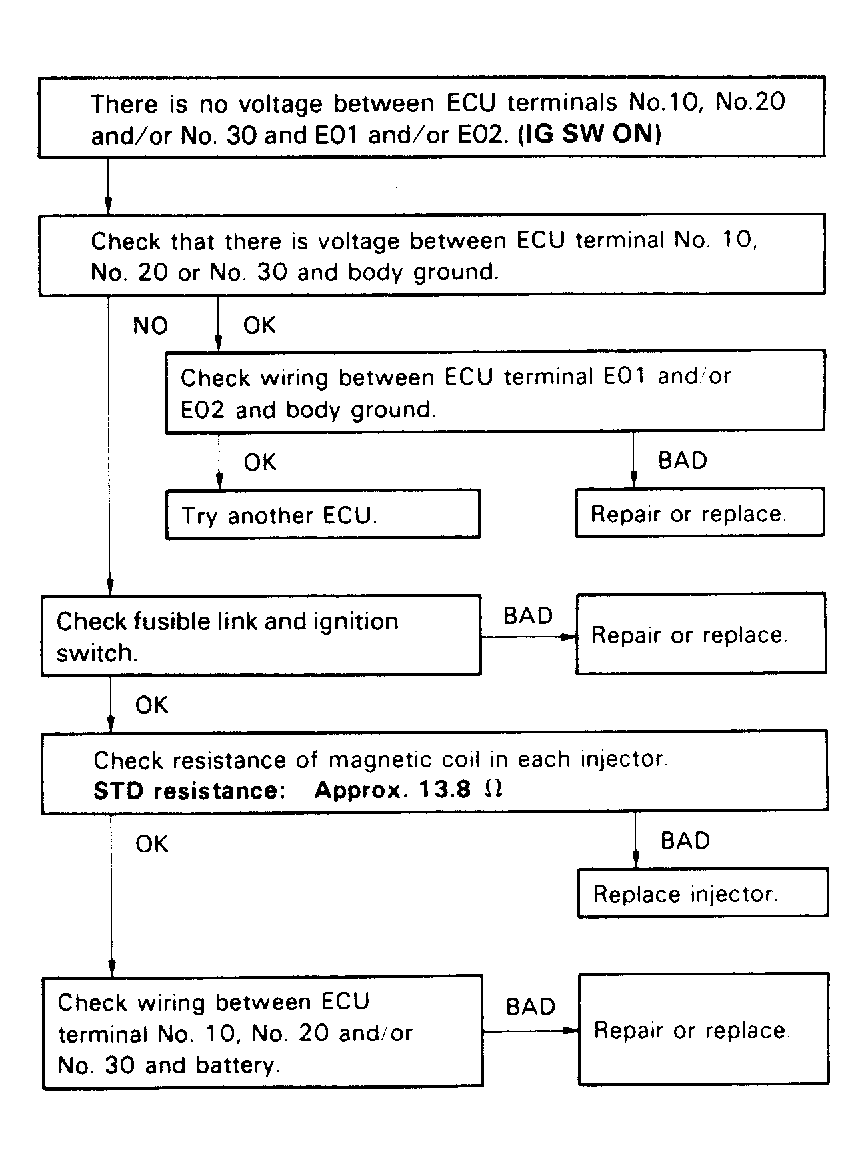

Fig 2: Test No. 11 Flow Chart (7M-GE Non-Turbo) Injector Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

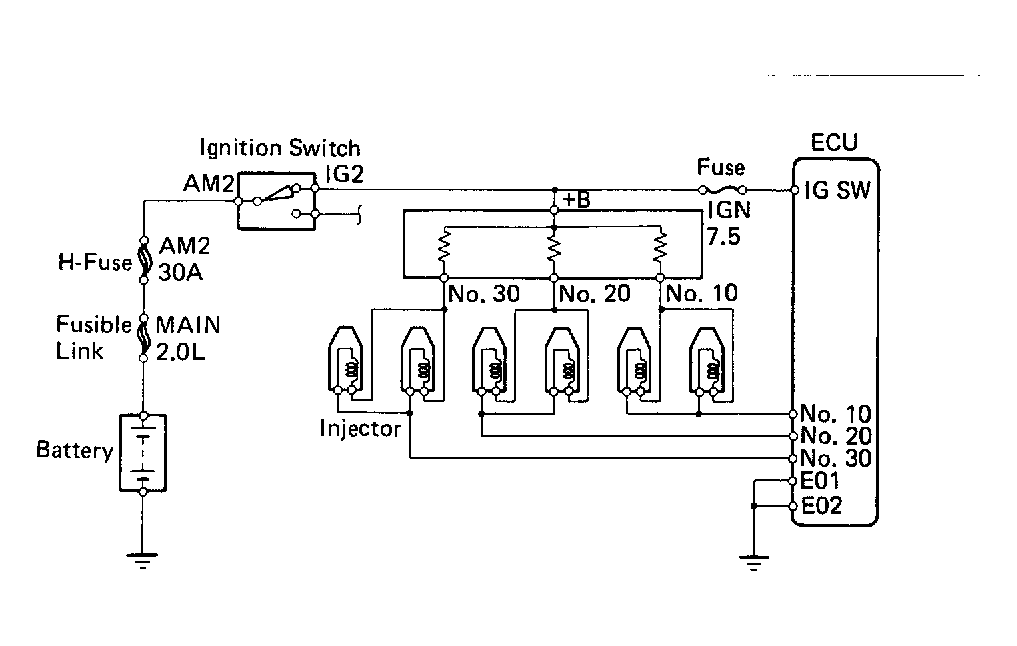

Fig 3: Test No. 11 Schematic (7M-GTE Turbo) Injector Circuit

Fig 4: Test No. 11 Component Diagram (7M-GTE Turbo) Injector Circuit

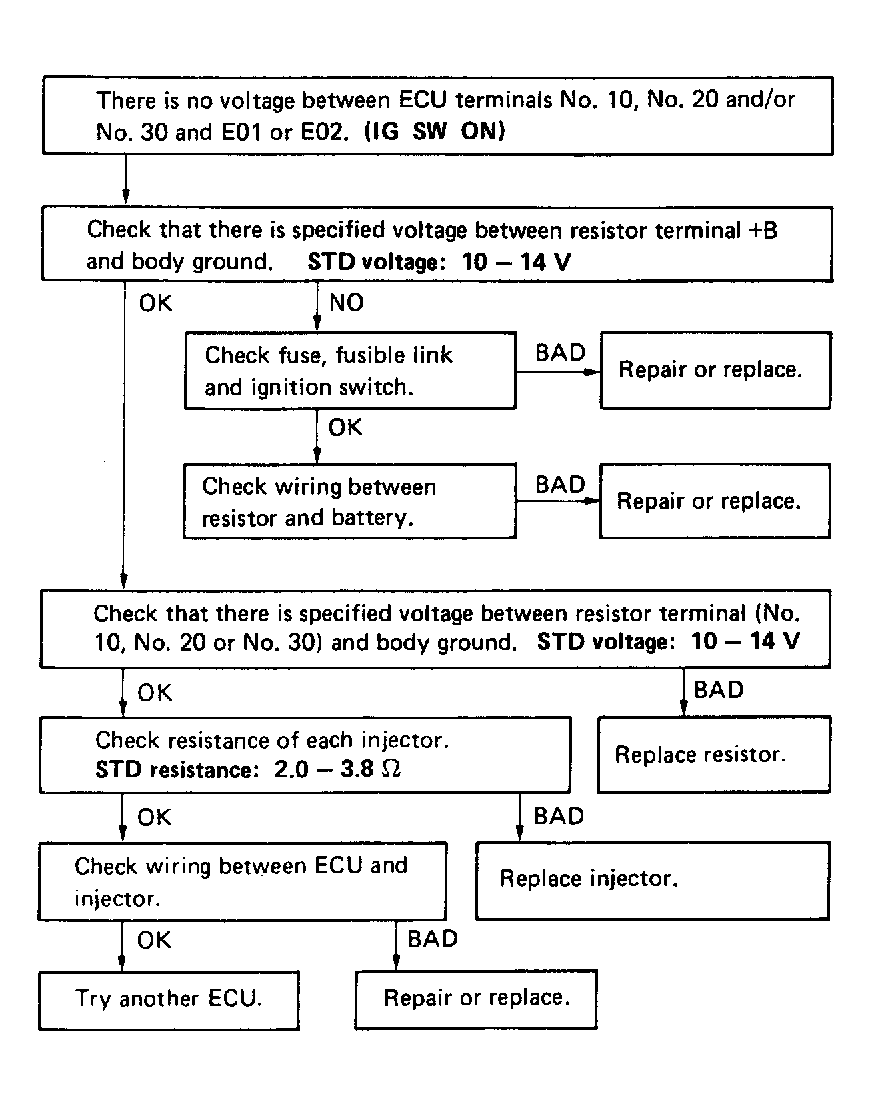

Fig 5: Test No. 11 Flow Chart (Turbo) Injector Circuit
