Code 14/Test No. 2 - Ignition Signal

NOTE: To check ignition system components, see I - SYS/COMP TESTS article in the ENGINE PERFORMANCE Section.

CODE 14/TEST NO. 2-IGNITION SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
IGT - E1	No Voltage	Idling	0.7 - 1.0V

CODE 14/TEST NO. 2-IGNITION SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
IGT - E1	No Voltage	Idling	0.7 - 1.0V
IGDA-E1	"	Idling	1 - 3V
IGDB-E1	"	"	"

Fig 1: Code 14/Test No. 2 Schematic (7M-GE Non-Turbo) Ignition Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Code 14/Test No. 2 Flow Chart (7M-GE Non-Turbo) Ignition Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Code 14/Test No. 2 Schematic, Terminal IGT (7M-GTE Turbo) Ignition Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Code 14/Test No. 2 Flow Chart, Terminal IGT (7M-GTE Turbo) Ignition Signal

Fig 5: Code 14/Test No. 2 Schematic, Terminals IGDA & IGDB (7M-GTE Turbo) Ignition Signal

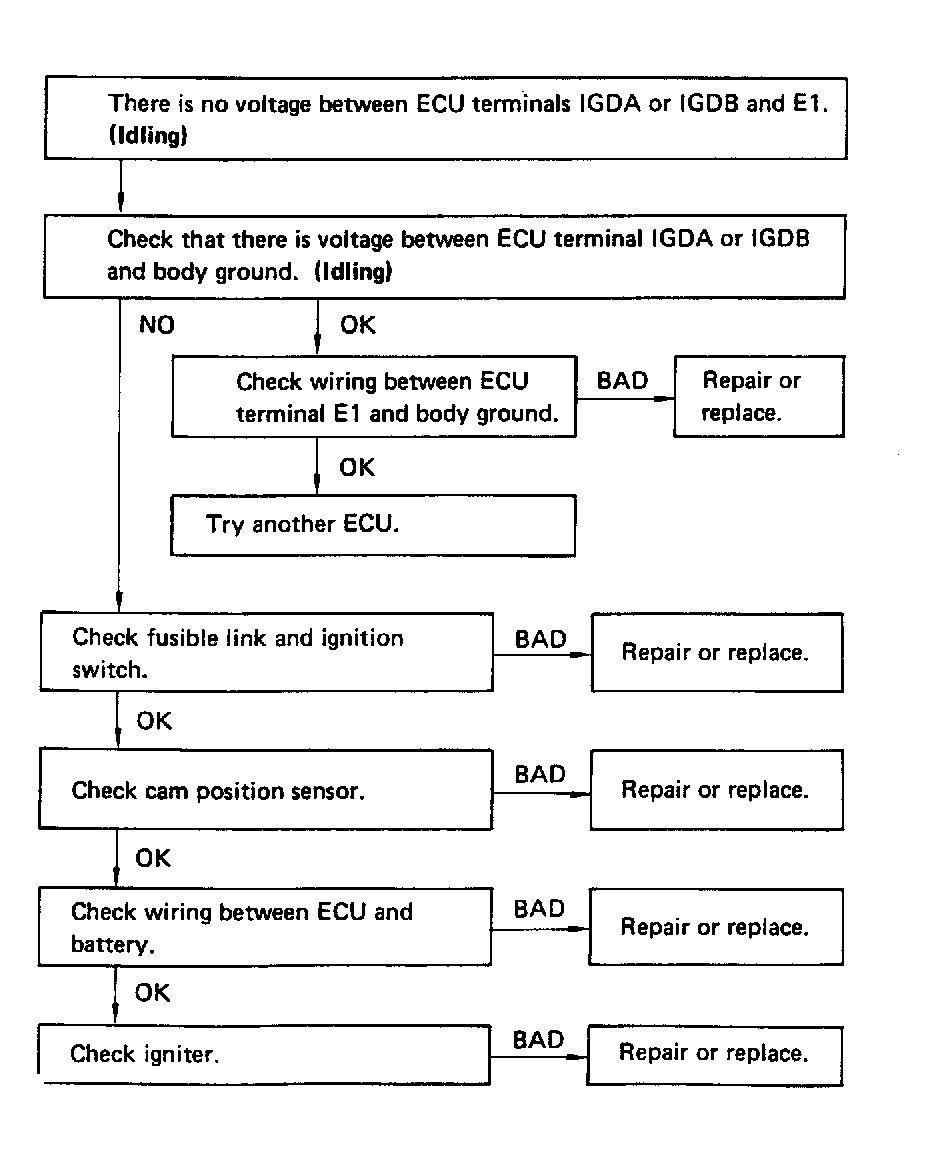

Fig 6: Code 14/Test No. 2 Flow Chart, Terminals IGDA & IGDB (7M-GTE Turbo) Ignition Signal
