Anti-Lock Brake System: Description

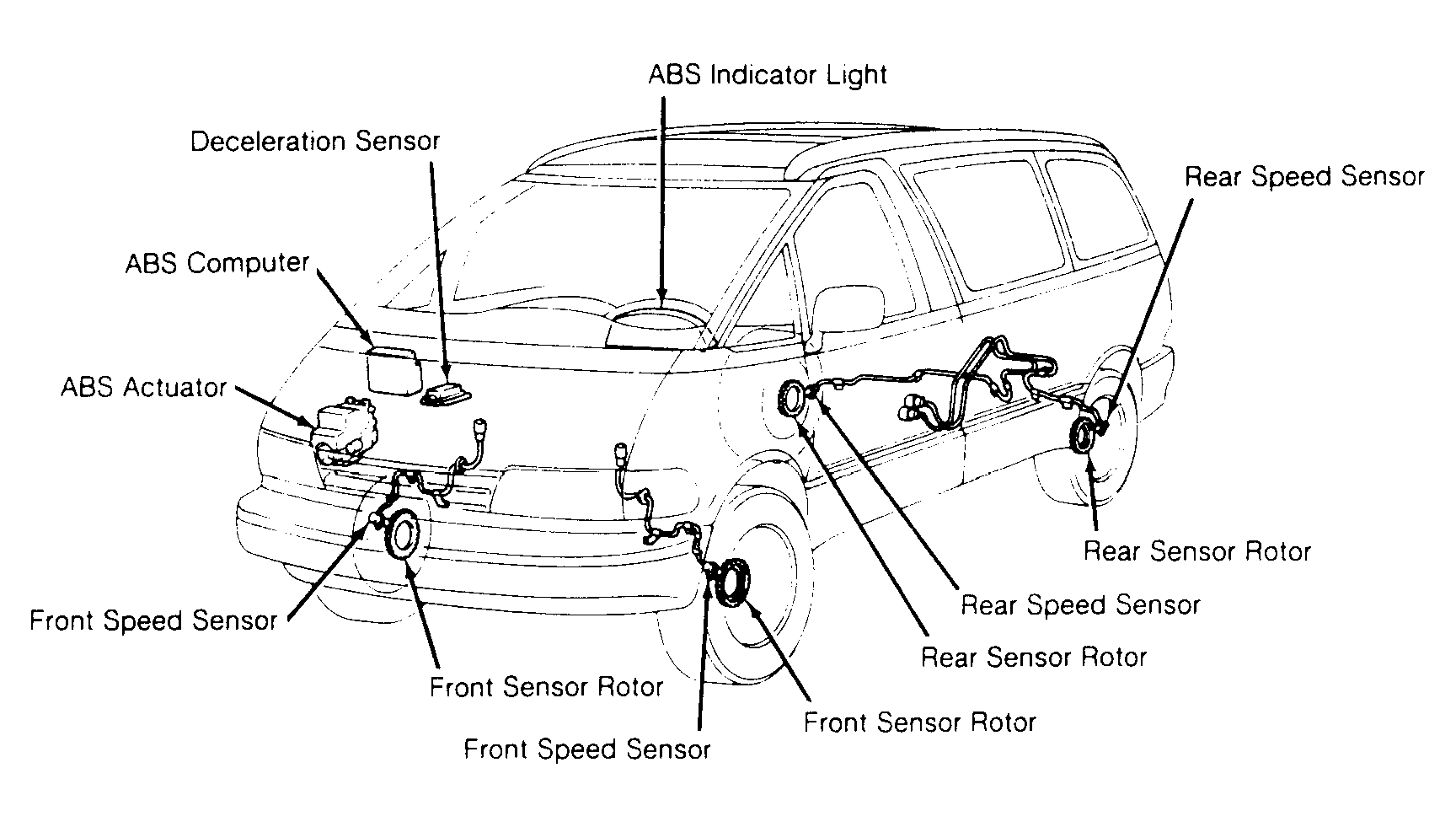

The Anti-Lock Brake System (ABS) consists of deceleration sensor (4WD), ABS actuator, ABS computer and 4 speed sensors. See Fig 1. An ABS indicator light is located on the instrument panel, in the combination meter. ABS indicator light comes on for 3 seconds as a bulb test when ignition is turned on.
NOTE:
For more information see BRAKES SYSTEM article.
