Steering System - Electronic Power: Description

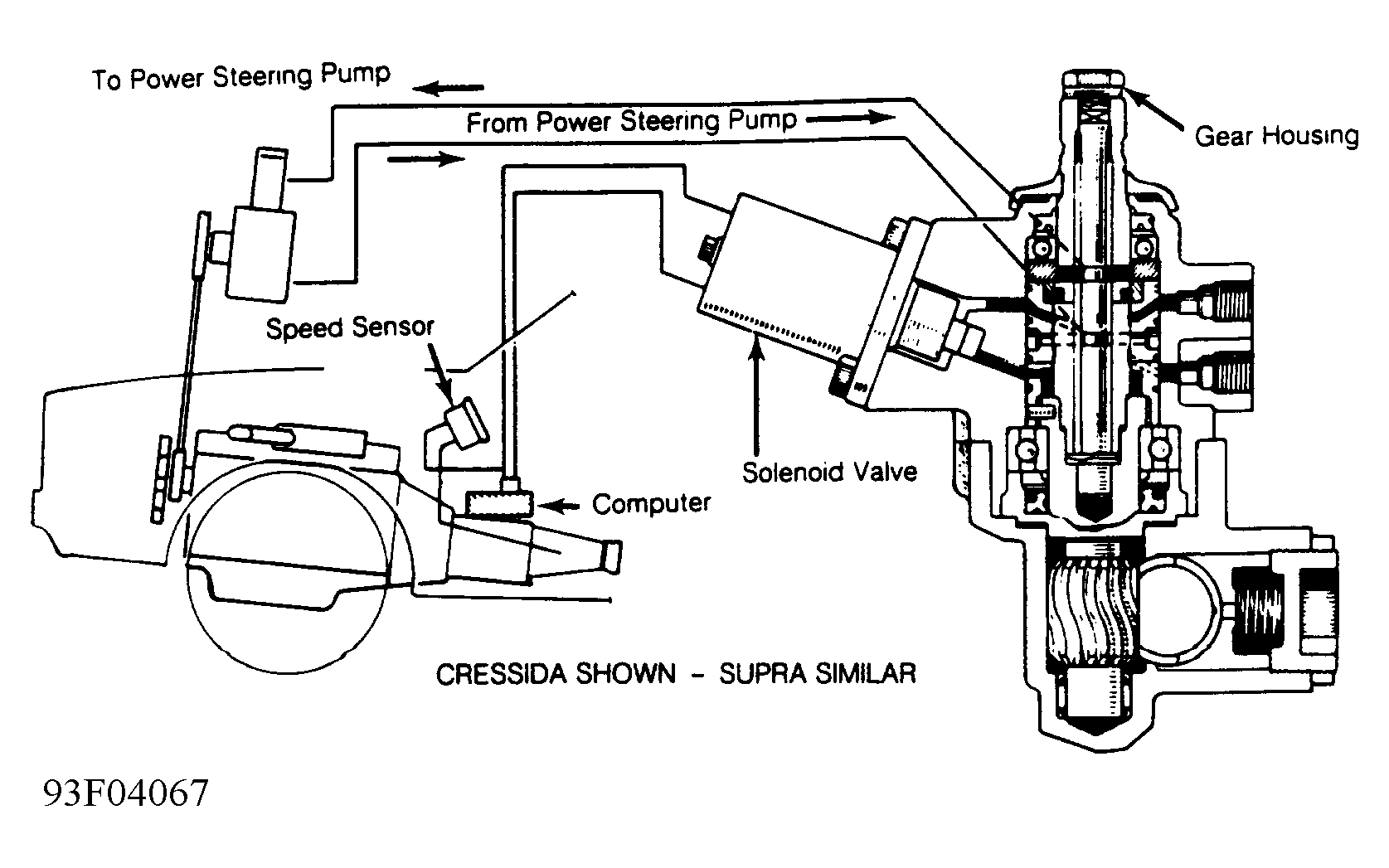

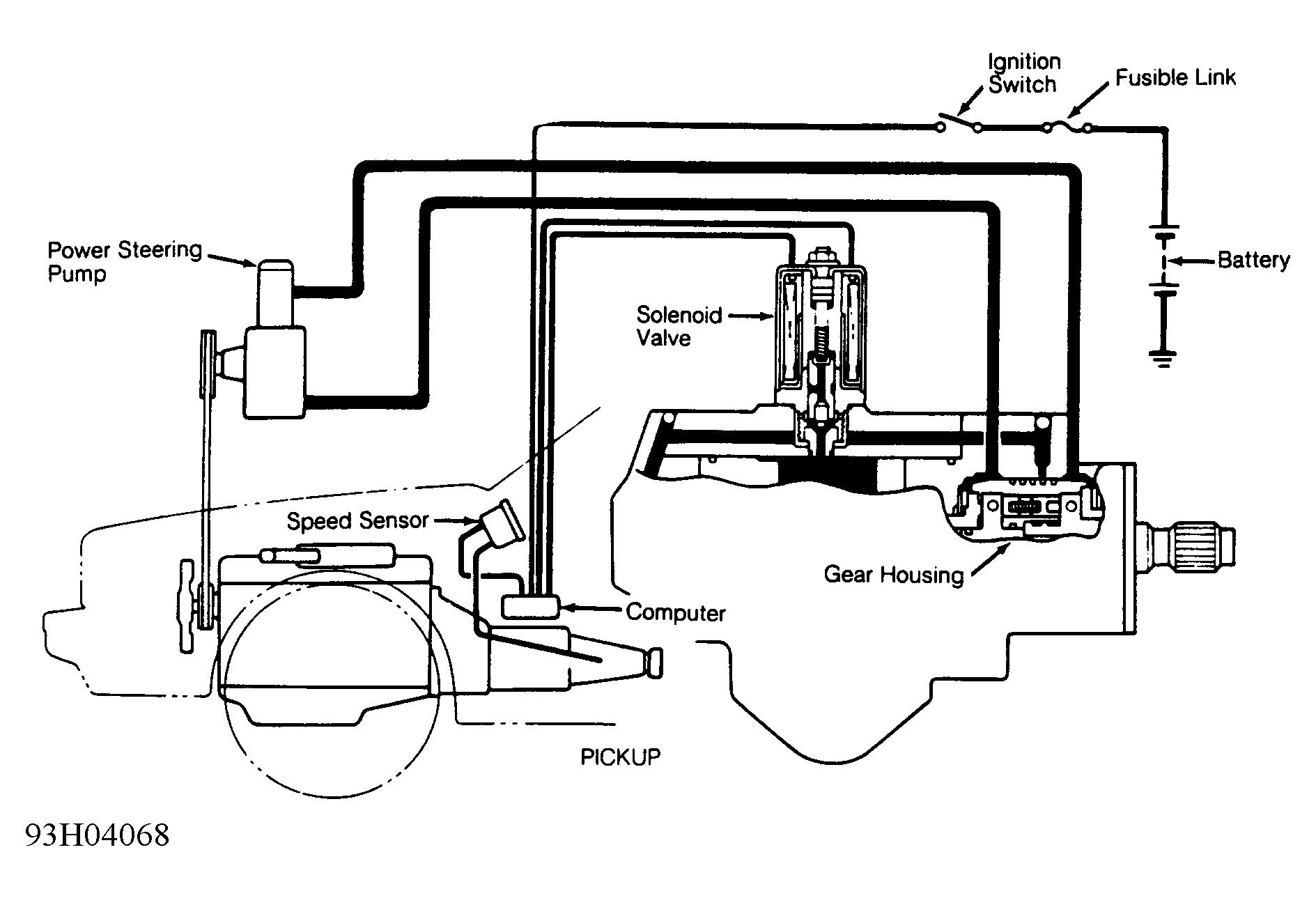

Electronically controlled power steering system consists of speed sensor (driven off speedometer), computer, solenoid valve and other conventional power steering components. See Fig 1 or Fig 2 .
Computer-controlled solenoid valve reduces hydraulic pressure to steering gear at high speeds to increase steering effort. With vehicle at low speeds or stationary, solenoid valve increases hydraulic pressure to steering gear to reduce steering effort.
