Code 43/Test No. 7 - Starter Signal

CODE 43/TEST NO. 7-STARTER SIGNAL TROUBLE

Terminal	Trouble	Condition	STD Voltage
STA-E1	No Voltage	Ignition Switch in START Position	6-12V

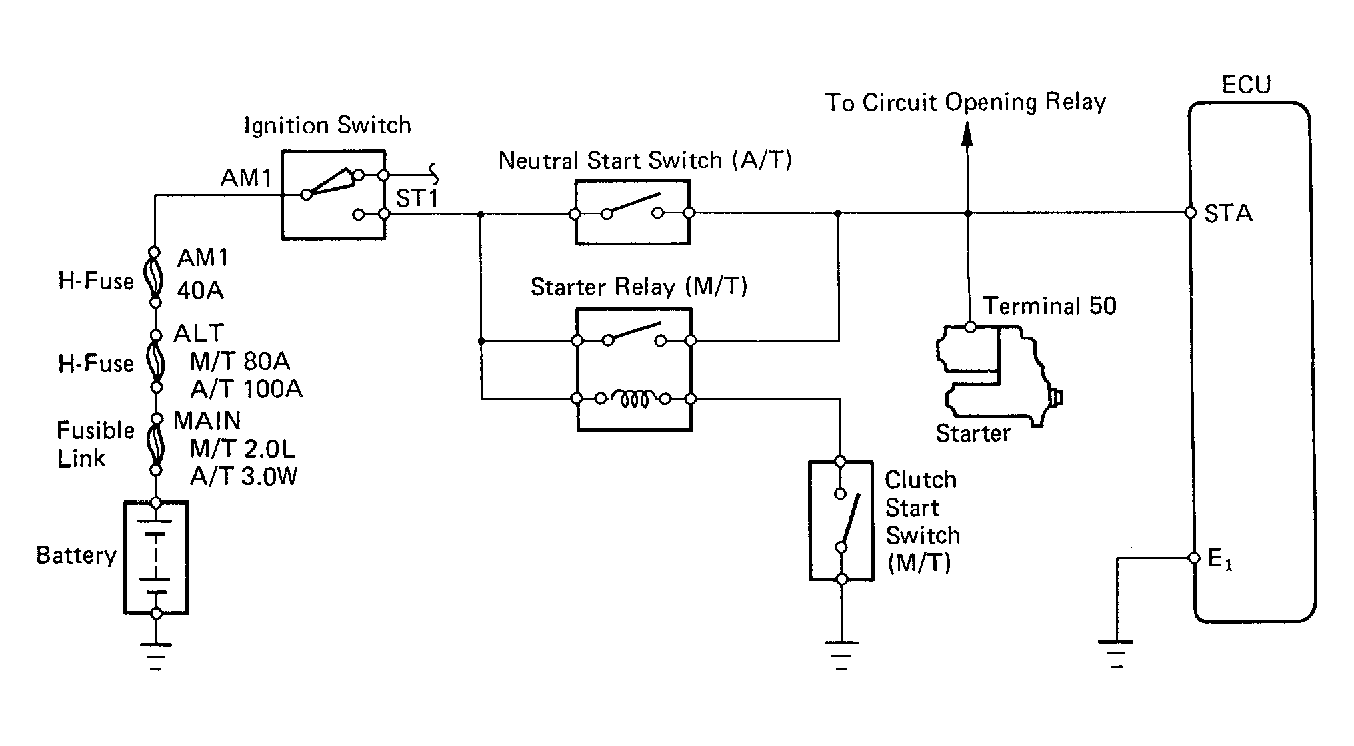

Fig 1: Code 43/Test No. 7 Schematic Starter Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Code 43/Test No. 7 Component Diagram Starter Signal

Fig 3: Code 43/Test No. 7 Flow Chart Starter Signal
