Charge Light Relay (Land Cruiser)

  1. Locate charge light relay in engine compartment relay box. Disconnect relay from harness connector. Connect ohmmeter between terminals No. 1 and 2. Continuity should not exist.
  2. Connect ohmmeter positive lead to charge light relay terminal No. 4 and negative lead to terminal No. 3. See Figure (STEP 1). Continuity should not exist. Reverse ohmmeter leads. Continuity should exist. Replace relay if it does not test as indicated.
  3. If relay tests as indicated, apply 12 volts to terminal No. 3. Connect terminal No. 4 to ground common to battery ground. See Figure (STEP 2). Using an ohmmeter, continuity should exist between relay terminals No. 1 and 2. Replace relay if continuity does not exist.

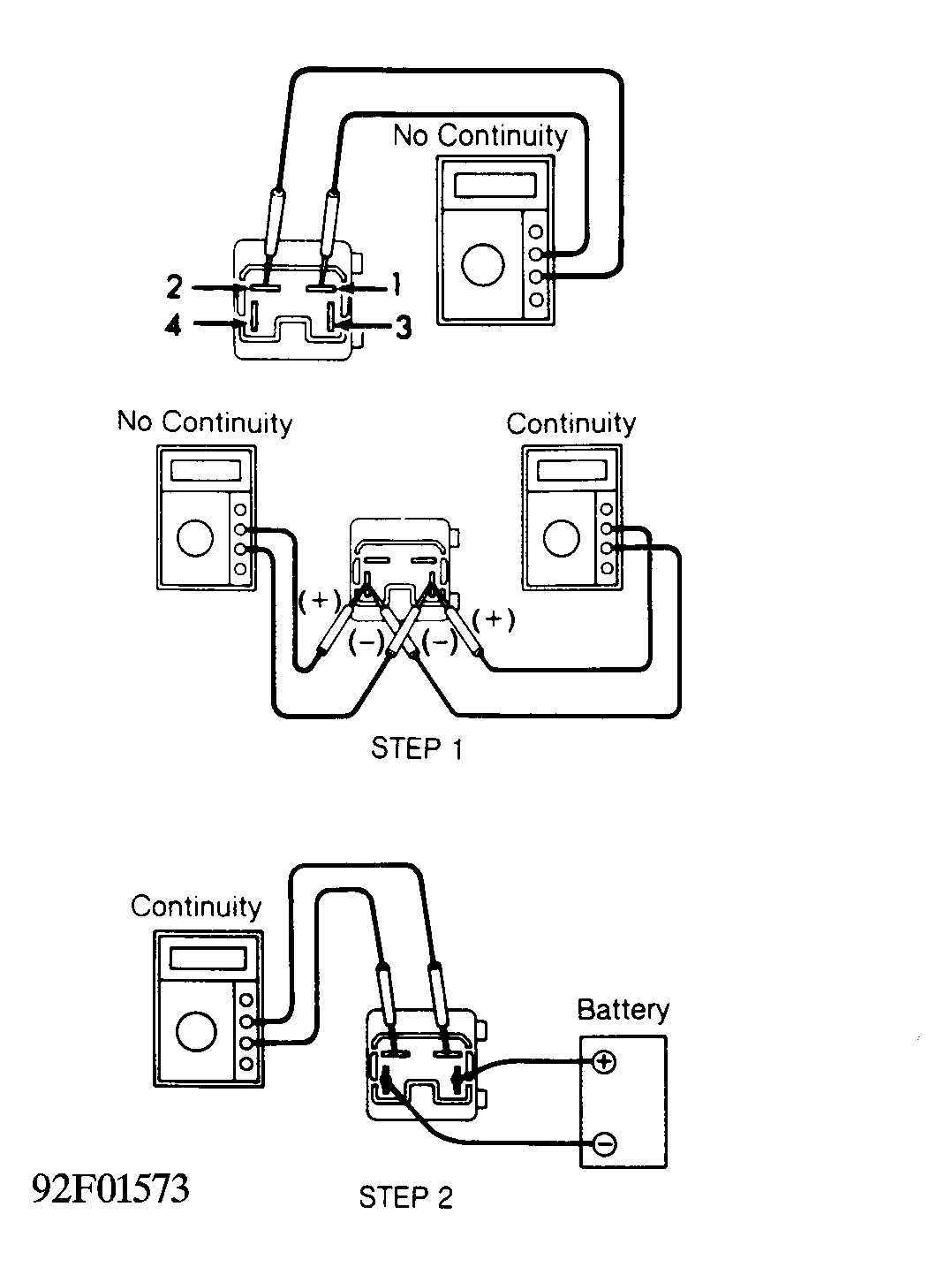

Fig 1: Testing Charge Light Relay (Land Cruiser)
G92F01573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
