Anti-Lock Brake System: Wiring Diagram

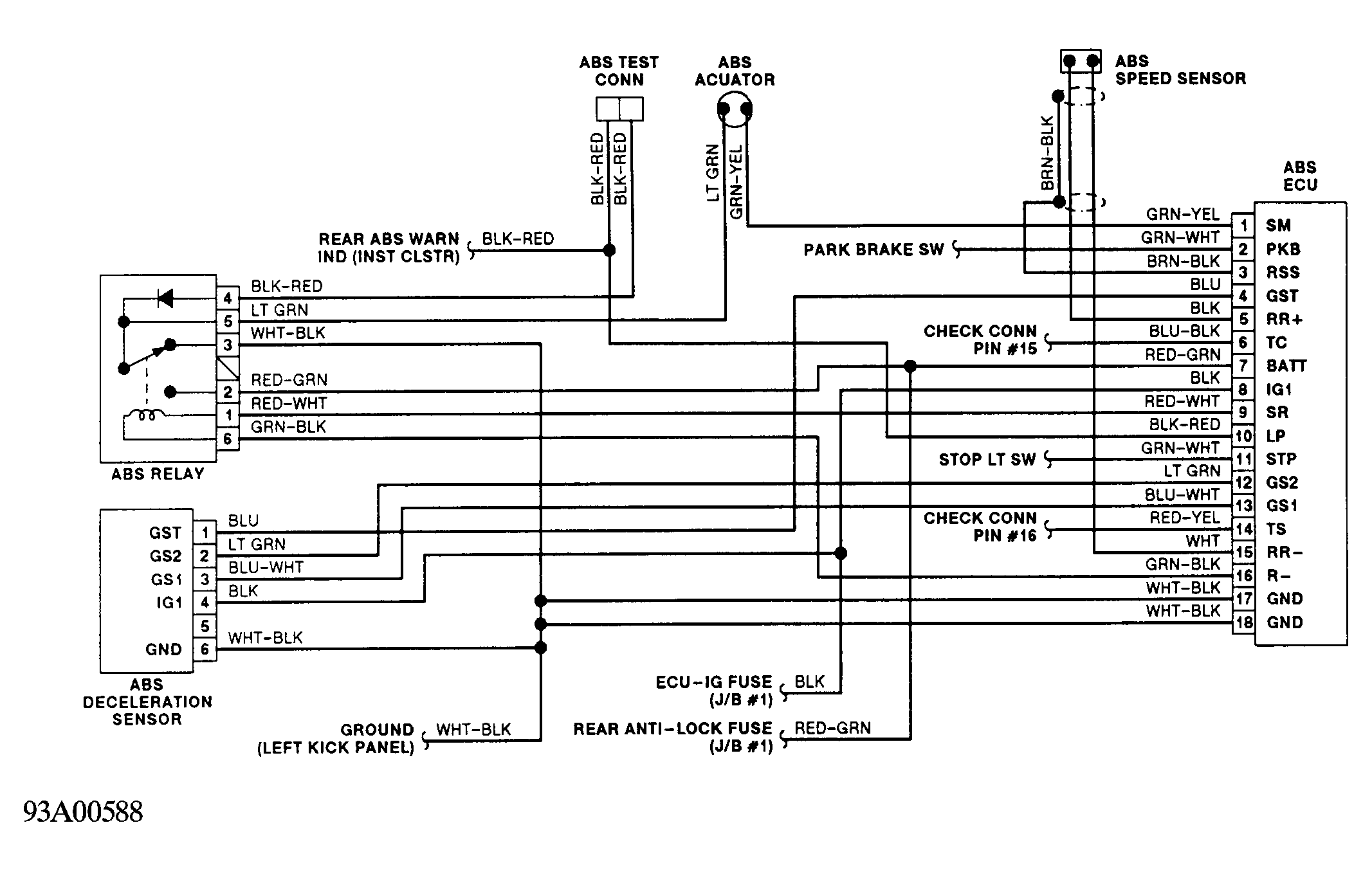

Fig 1: Anti-Lock Brake System Wiring Diagram

G93A00588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
