Right Side Power Window Motor (Circuit Breaker Operation)

1. Disconnect the connector from the power window switch.
2. Connect the positive (+) lead from the battery to terminal No. 1 and the negative (-) lead to terminal No. 4 on the wire harness side connector. Raise window to fully closed position. See Fig 1.
3. Continue to apply voltage, and check that there is a circuit breaker operation noise within approximately 4-40 seconds.
4. Reverse polarity, and check that the window begins to descend within approximately 60 seconds. See Fig 1.
5. If operation is not as specified, replace motor.

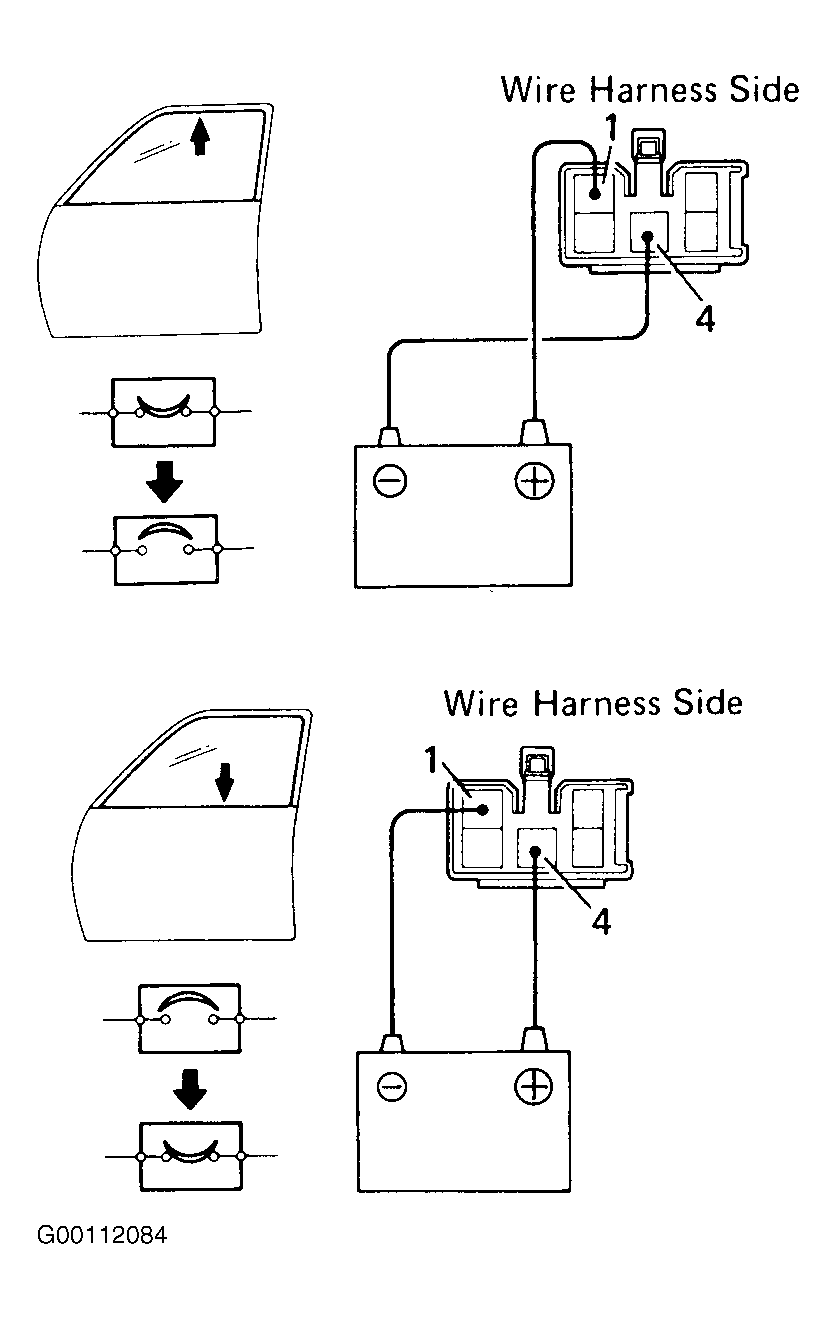

Fig 1: Testing Right Side Power Window Motor Circuit Breaker Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
