Master Switch

Inspect the switch continuity between terminals. See Fig 1 and Fig 2 . If continuity is not as specified, replace the switch.

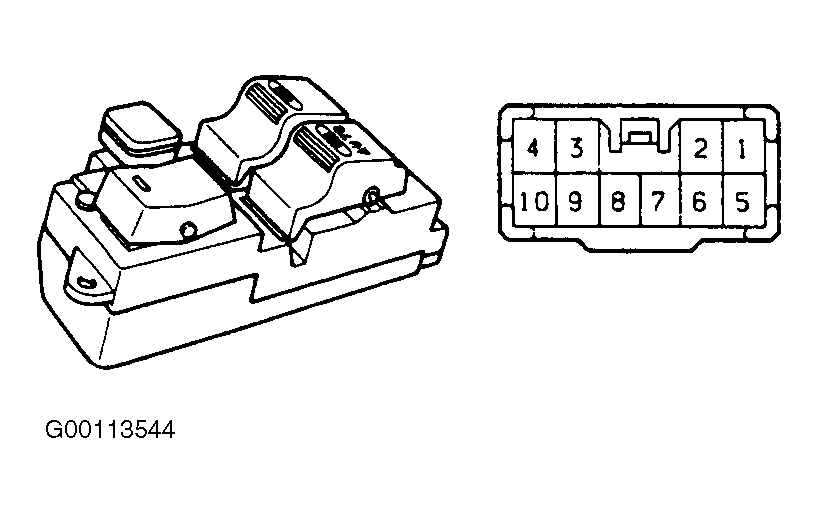

Fig 1: Identifying Master Switch Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

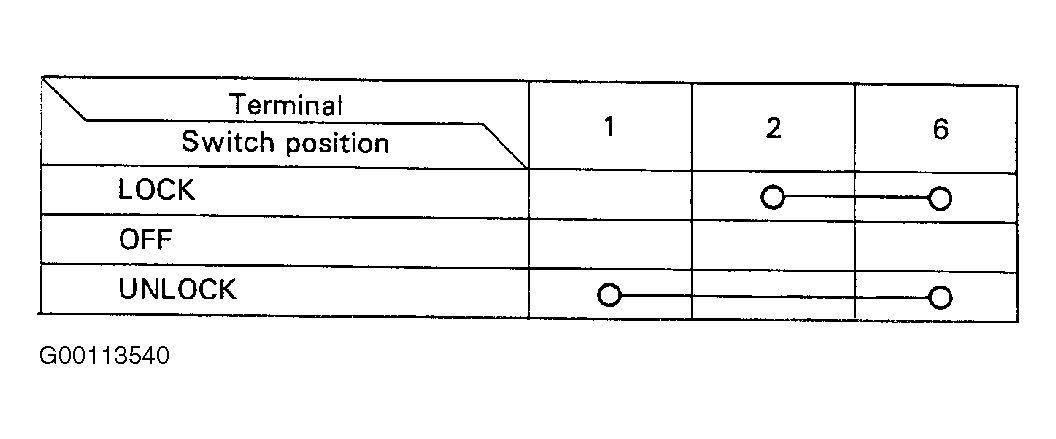

Fig 2: Testing Master Switch Continuity
