Component Locations

For component locations, refer to illustrations. See Fig 1-Fig 5 .

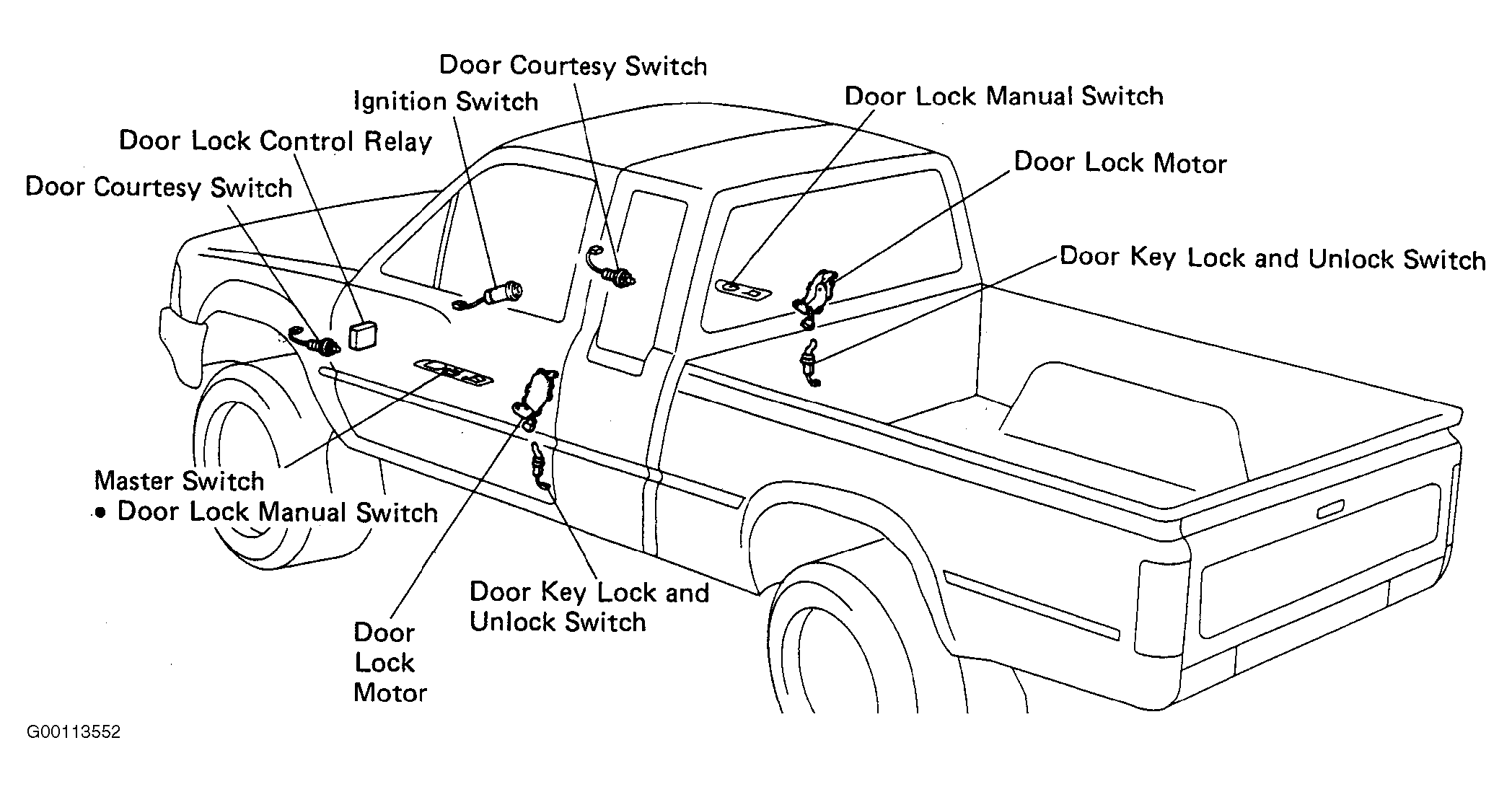

Fig 1: Locating Power Door Lock Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating Door Lock Control Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Fuse/Relay (Junction) Block No. 1 (Left Kick Panel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

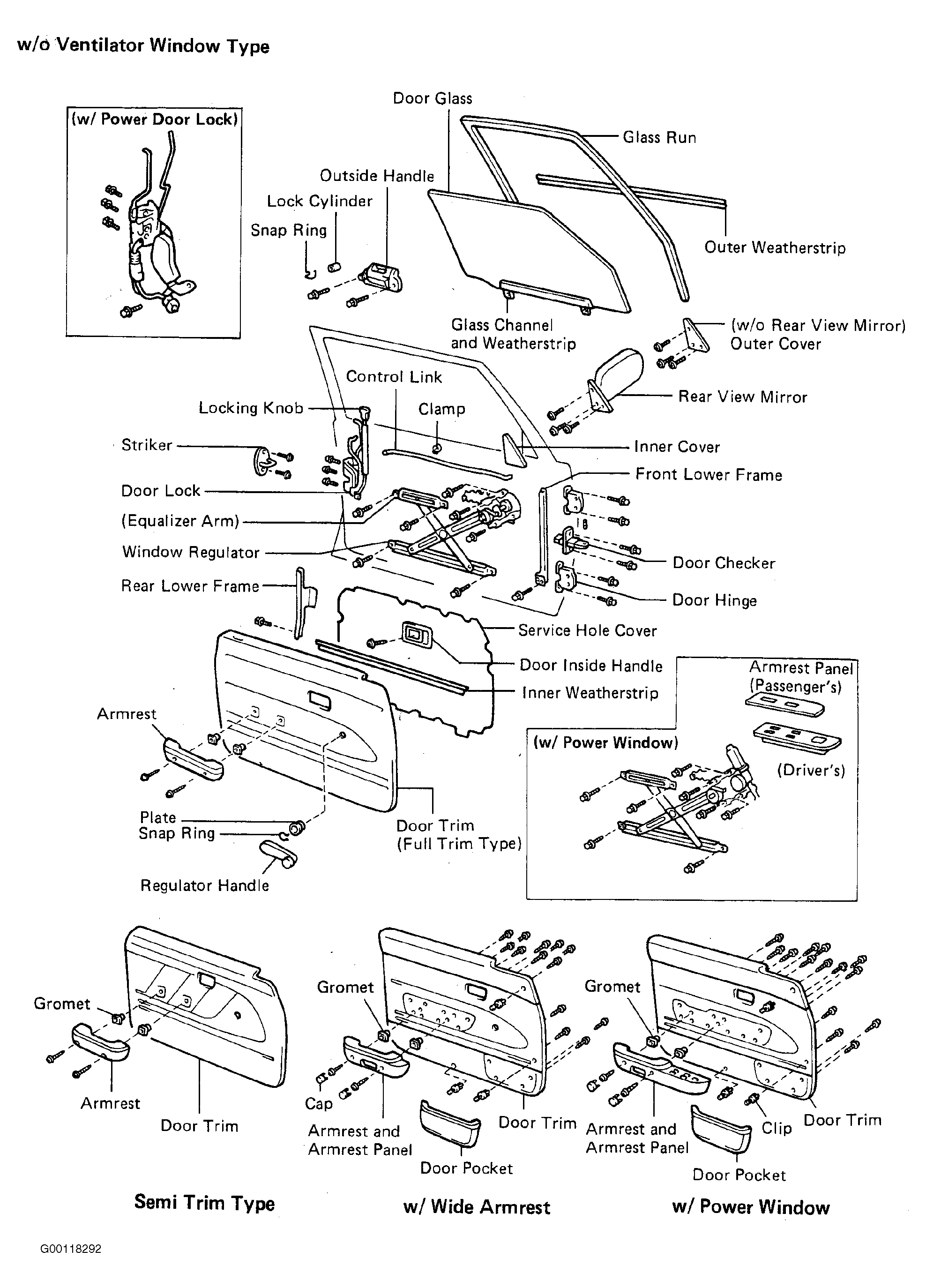

Fig 4: Exploded View Of Door Trim Panel (W/O Ventilator Window)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

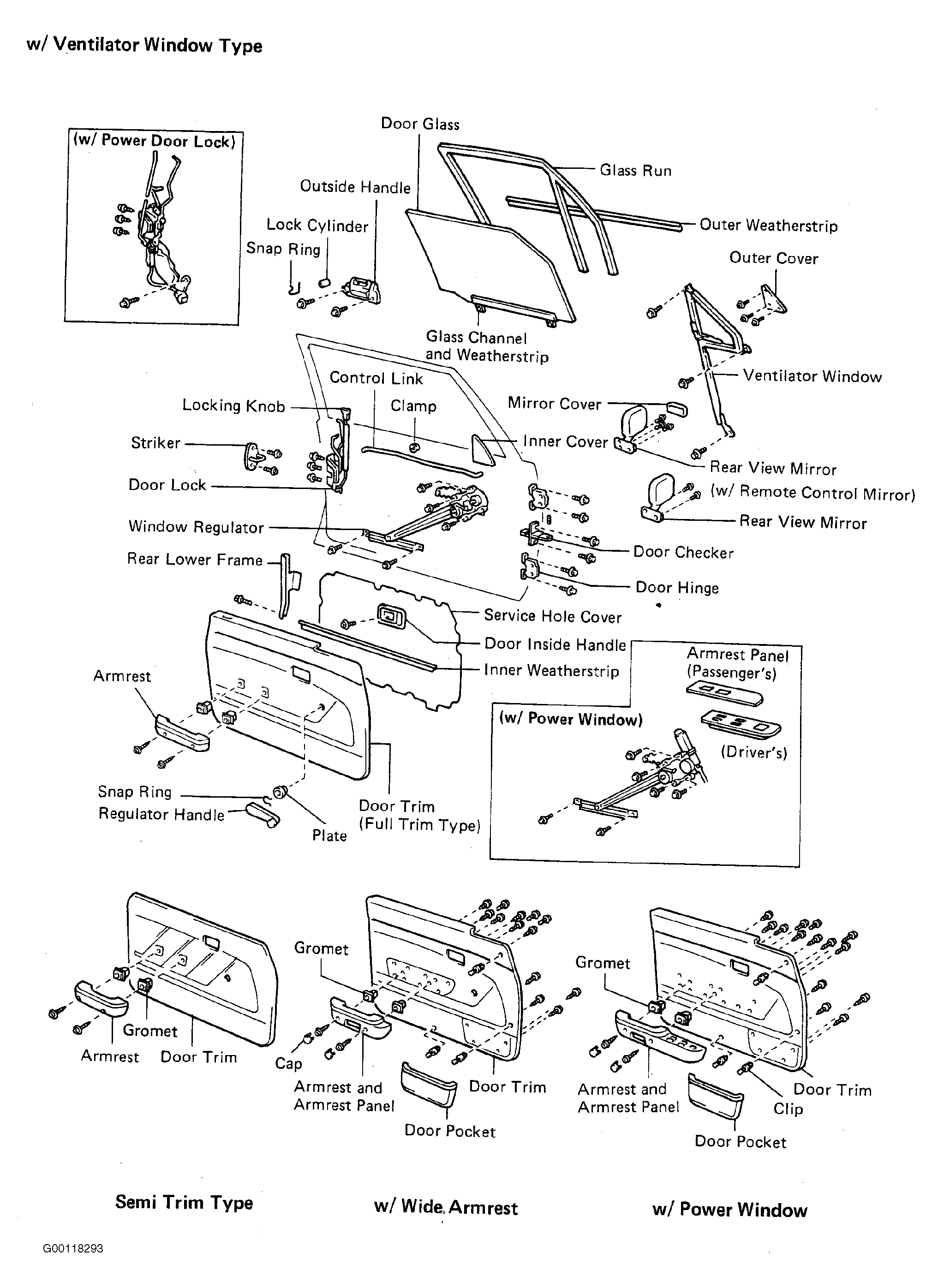

Fig 5: Exploded View Of Door Trim Panel (W/Ventilator Window)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
