System Operation Check
System Operation Check
After identifying power window problem, perform appropriate component test. See
COMPONENT TESTS
.

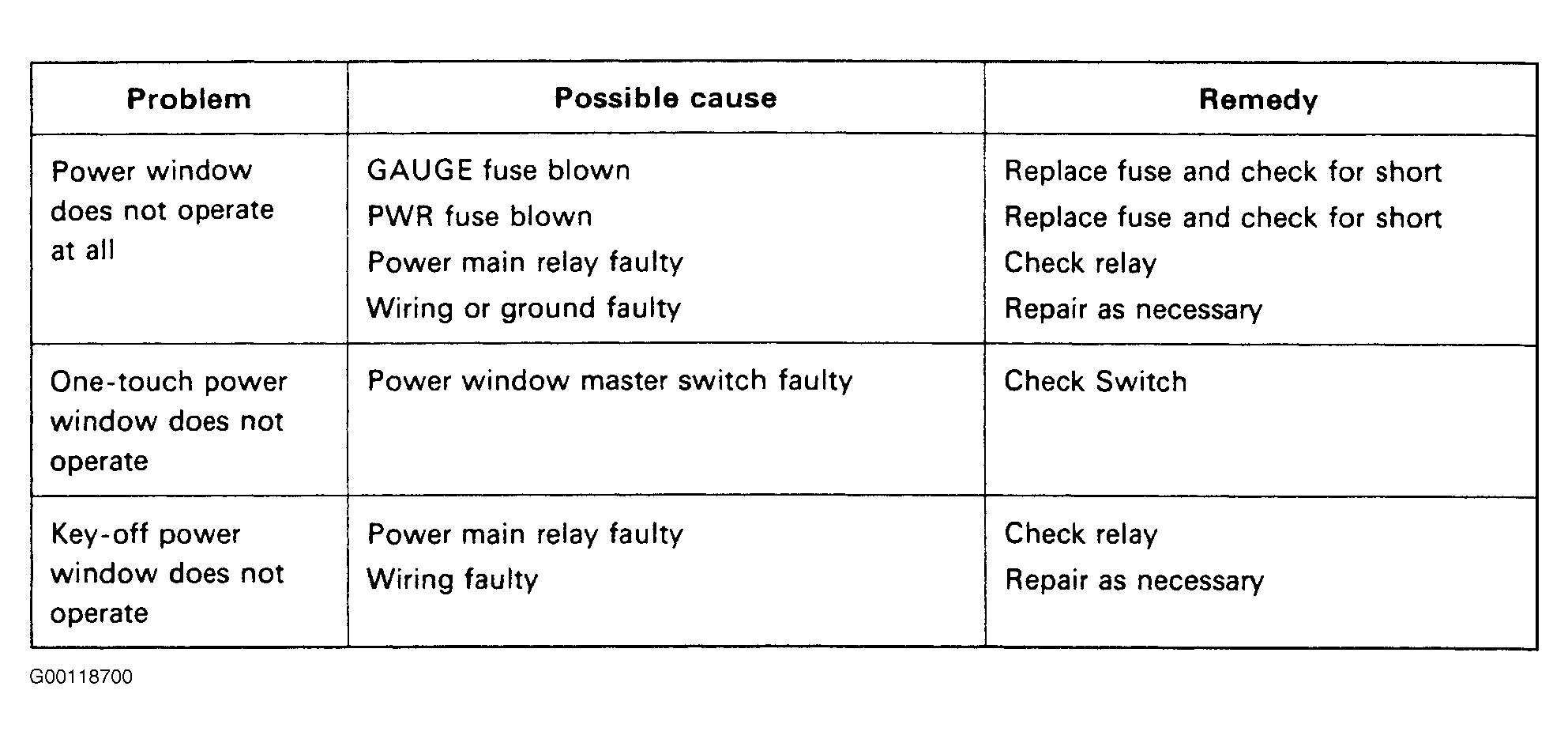

Fig 1: Trouble Shooting Power Window System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
