Power Main Relay

Inspect power main relay between terminals. See Fig 1. If continuity is not as specified, replace relay.

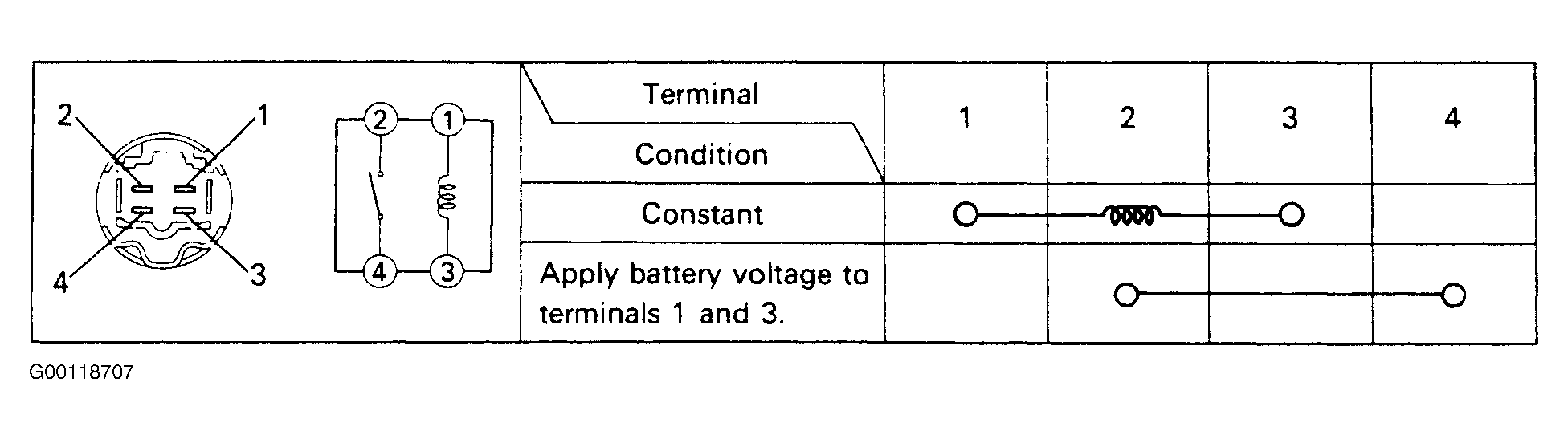

Fig 1: Testing Power Main Relay

G00118707

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
