Door Lock Control Relay

Disconnect the connector from the relay. Inspect the connector on the wire harness side, between terminals as shown. See Fig 1. If circuit is as specified, inspect the door lock signal.

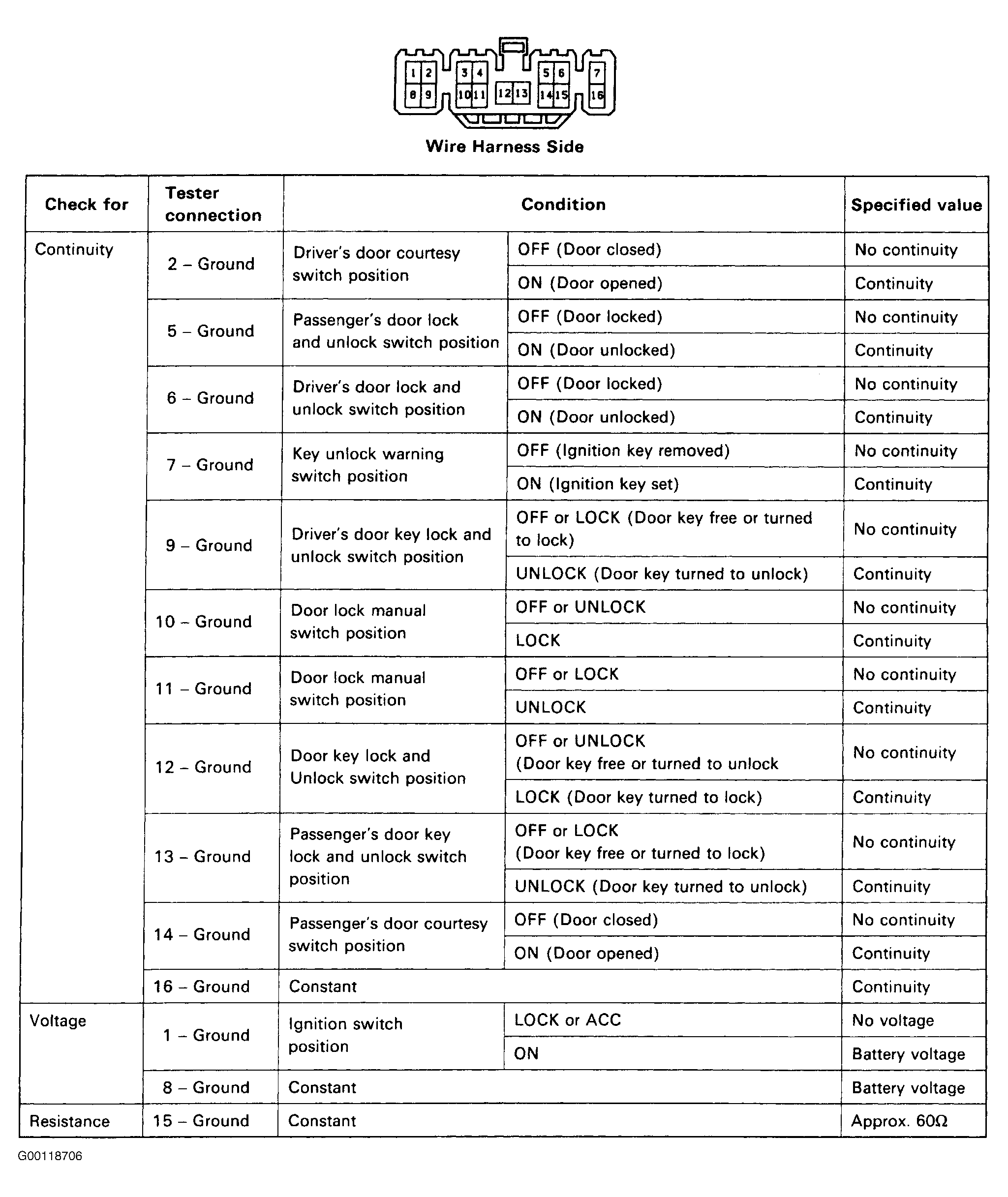

Fig 1: Testing Door Lock Relay Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
