Steering Sensor

  1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 5. See Fig 1 and Fig 2 .
  2. Connect the tester.
  3. Insert thick card at parts A and B and measure the resistance between ground and terminal 2 or 4 when the light is cut out.

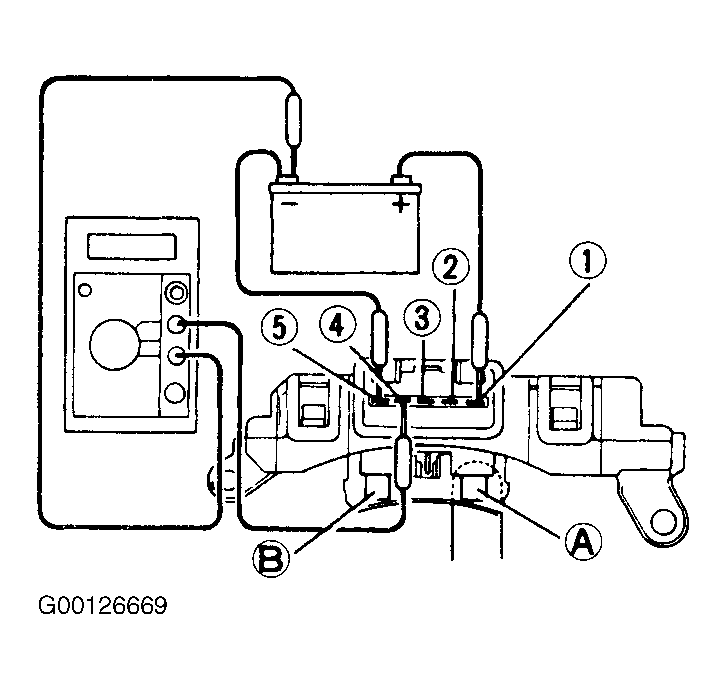

Fig 1: Identifying Steering Sensor Terminals
G00126669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

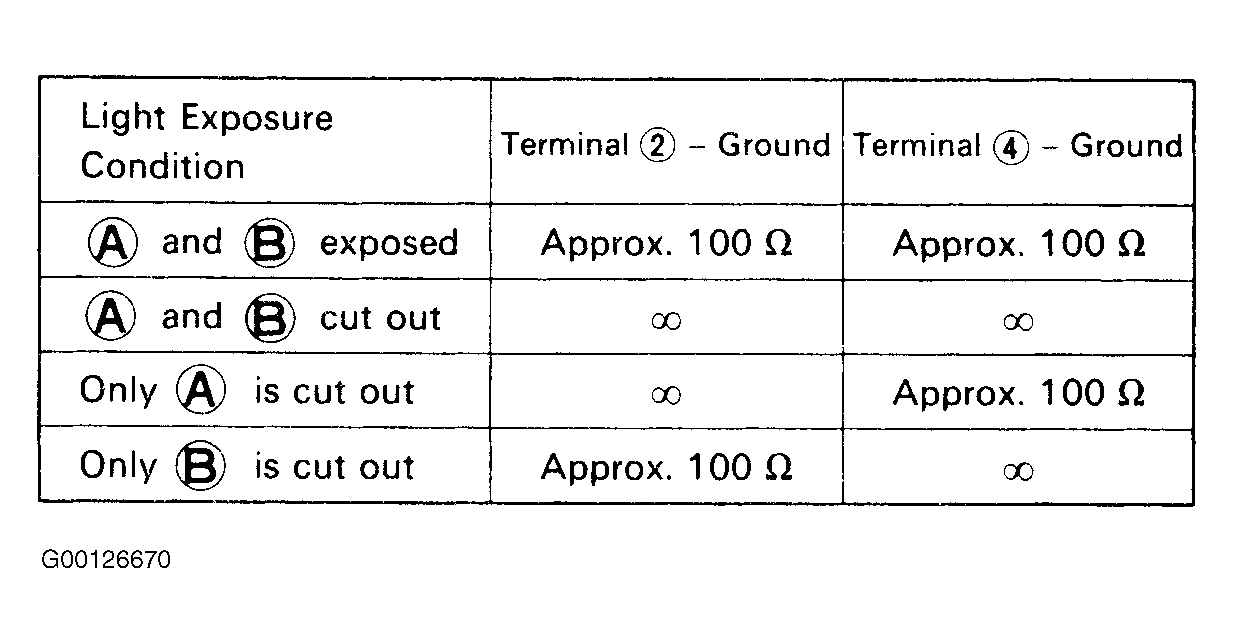

Fig 2: Testing Steering Sensor Operation
G00126670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
