Steering Gear: Notes

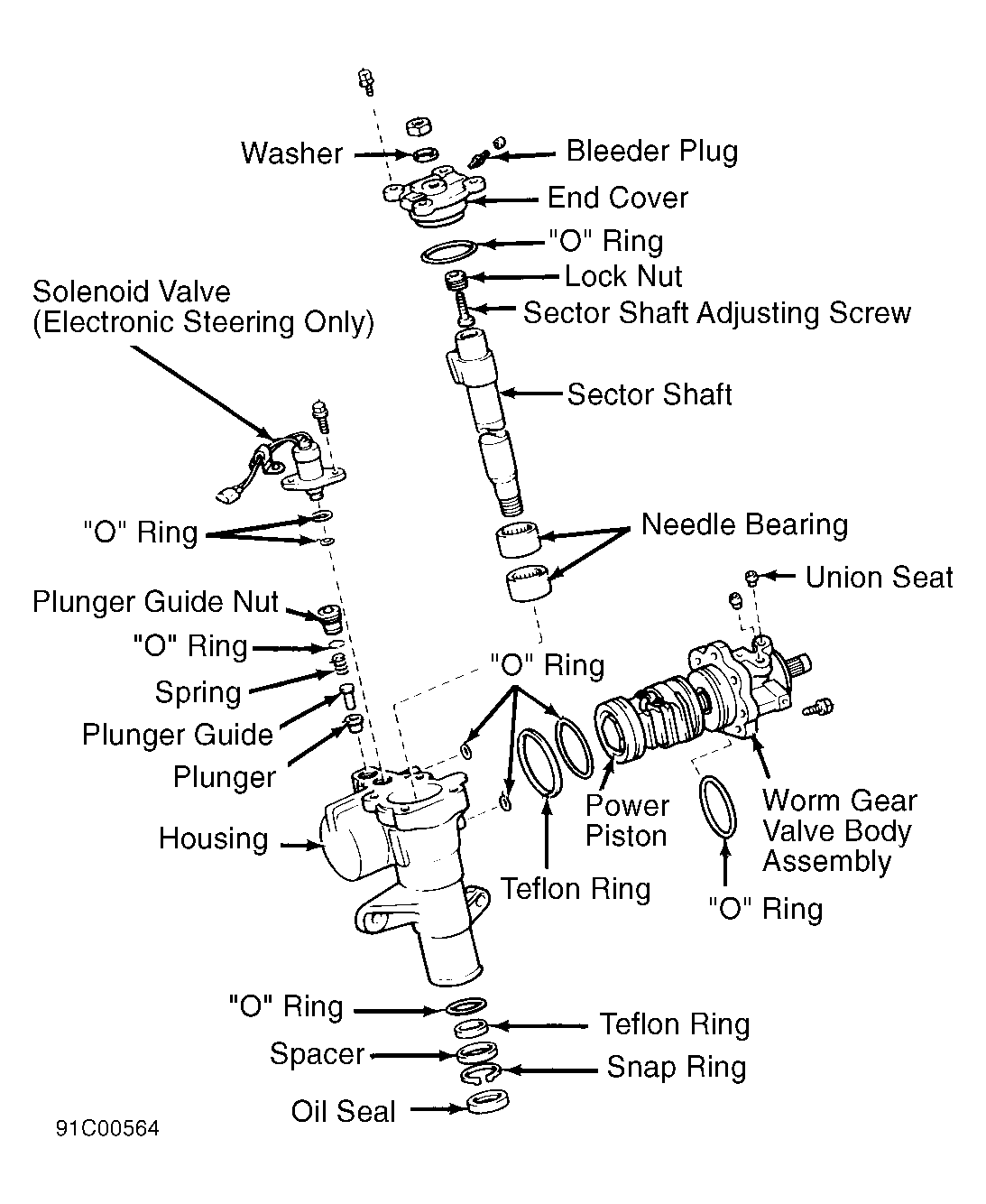

Fig 1: Exploded View Of Steering Gear (Typical)
G91C00564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
