Pick-Up Coil Resistance

Disconnect camshaft position sensor 4-pin connector. Note pick-up coil terminal identification on camshaft position sensor. See Fig 1.
Using ohmmeter, measure resistance between specified terminals and ensure resistance is within specification. See PICK-UP COIL RESISTANCE SPECIFICATIONS table. Replace camshaft position sensor assembly if pick-up coil resistance is not within specification.

PICK-UP COIL RESISTANCE SPECIFICATIONS

Application

Terminals

⁽¹⁾ Ohms

Supra Turbo

G1 & G-

185-265

SUPRA Turbo

G2 & G-

185-265

SUPRA Turbo

NE & G-

185-265

⁽¹⁾	Specification is with pick-up coil temperature of 14-104°F (-10-40°C).

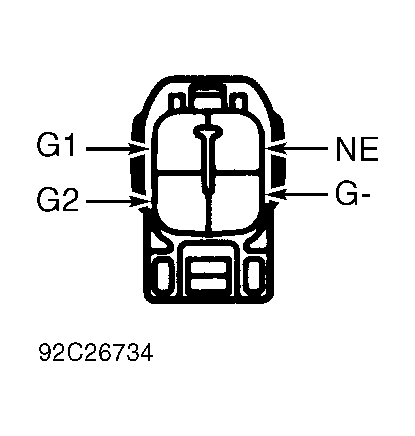

Fig 1: Identifying Pick-Up Coil Connector Terminals (Supra Turbo)
