Wiring Diagrams

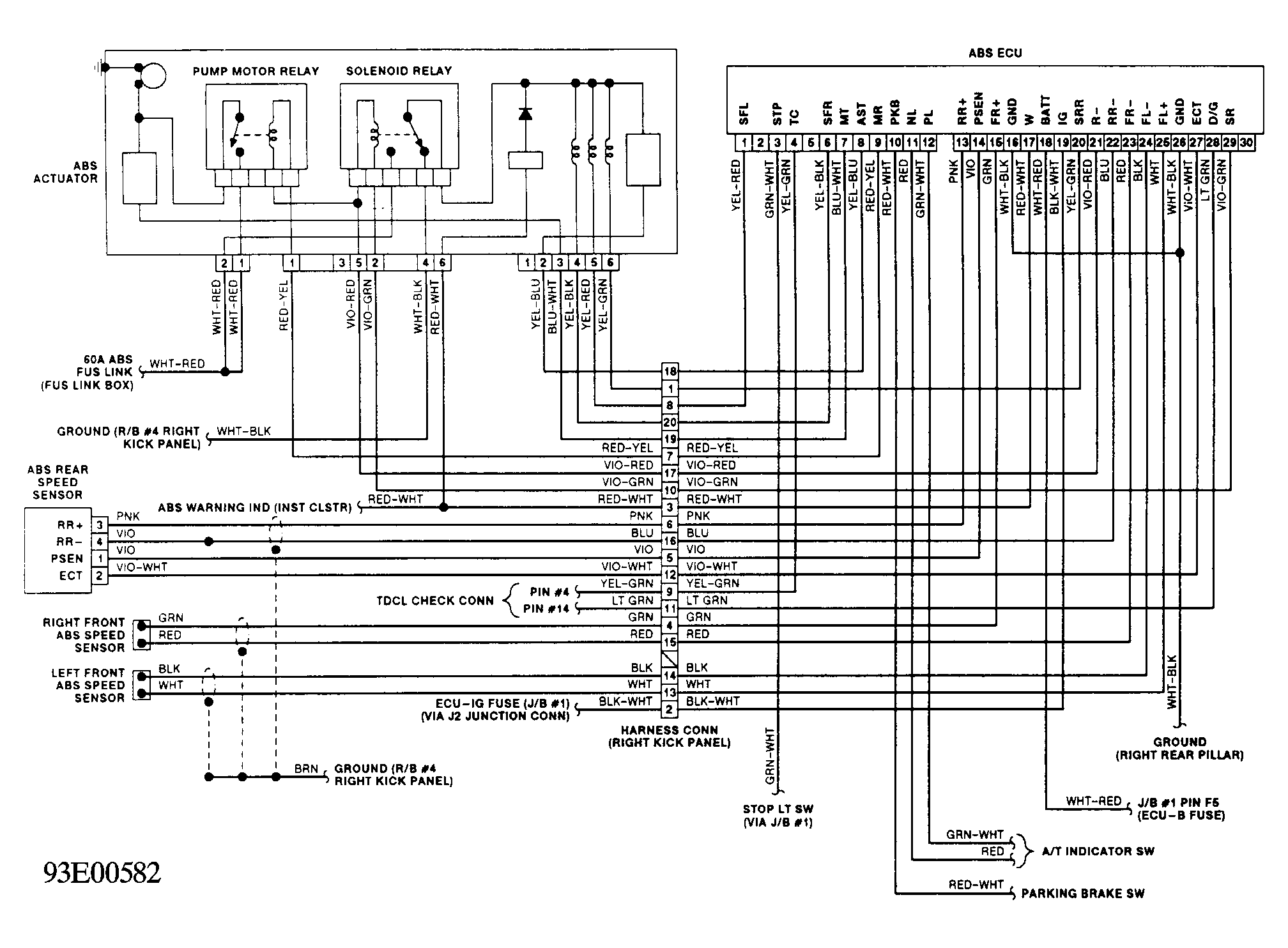

Fig 1: Anti-Lock Brake System Wiring Diagram (Cressida)
G93E00582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

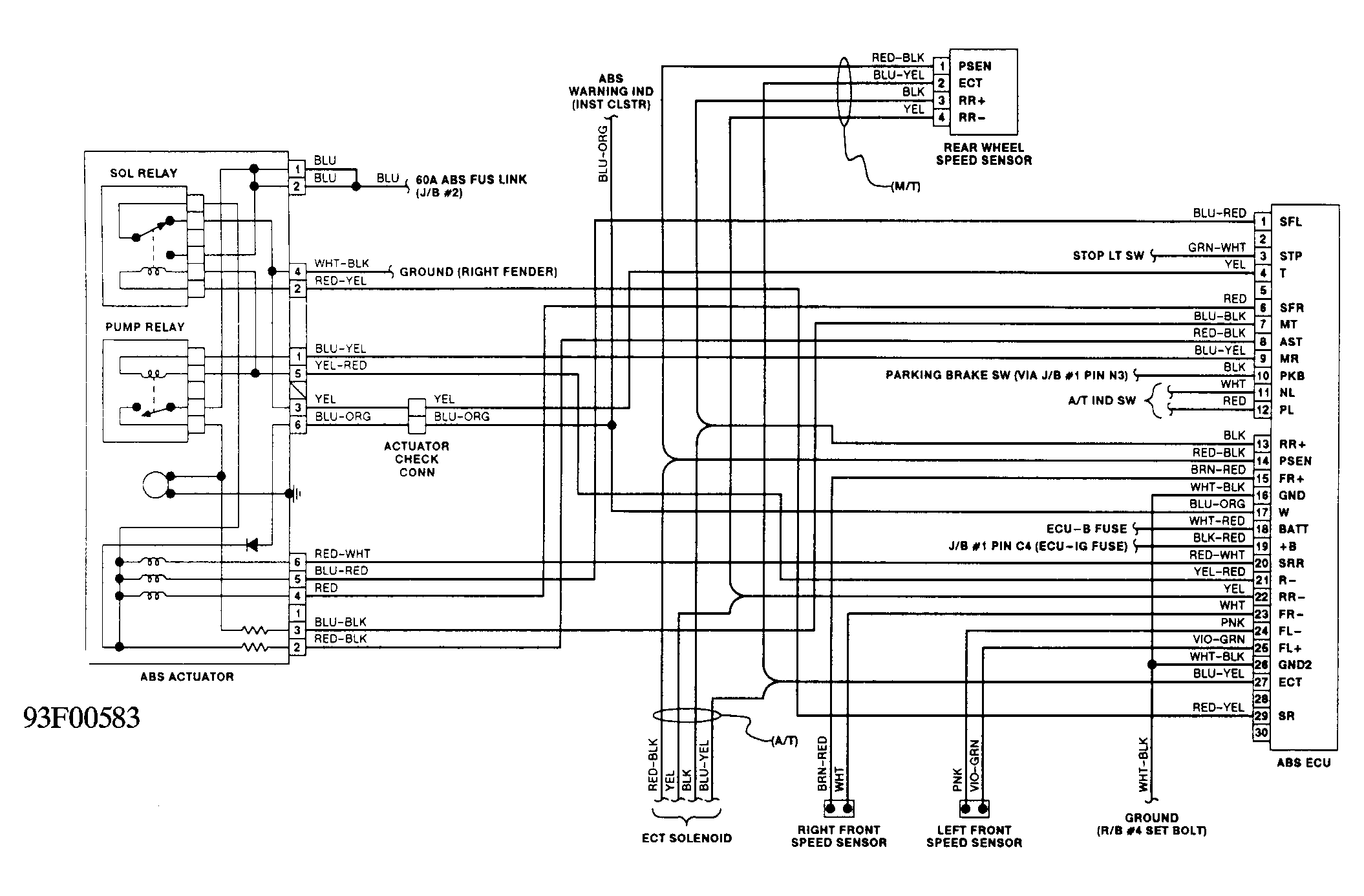

Fig 2: Anti-Lock Brake System Wiring Diagram (Supra)
G93F00583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
