Test M, Inspection Of Headlight Control Relay Circuit

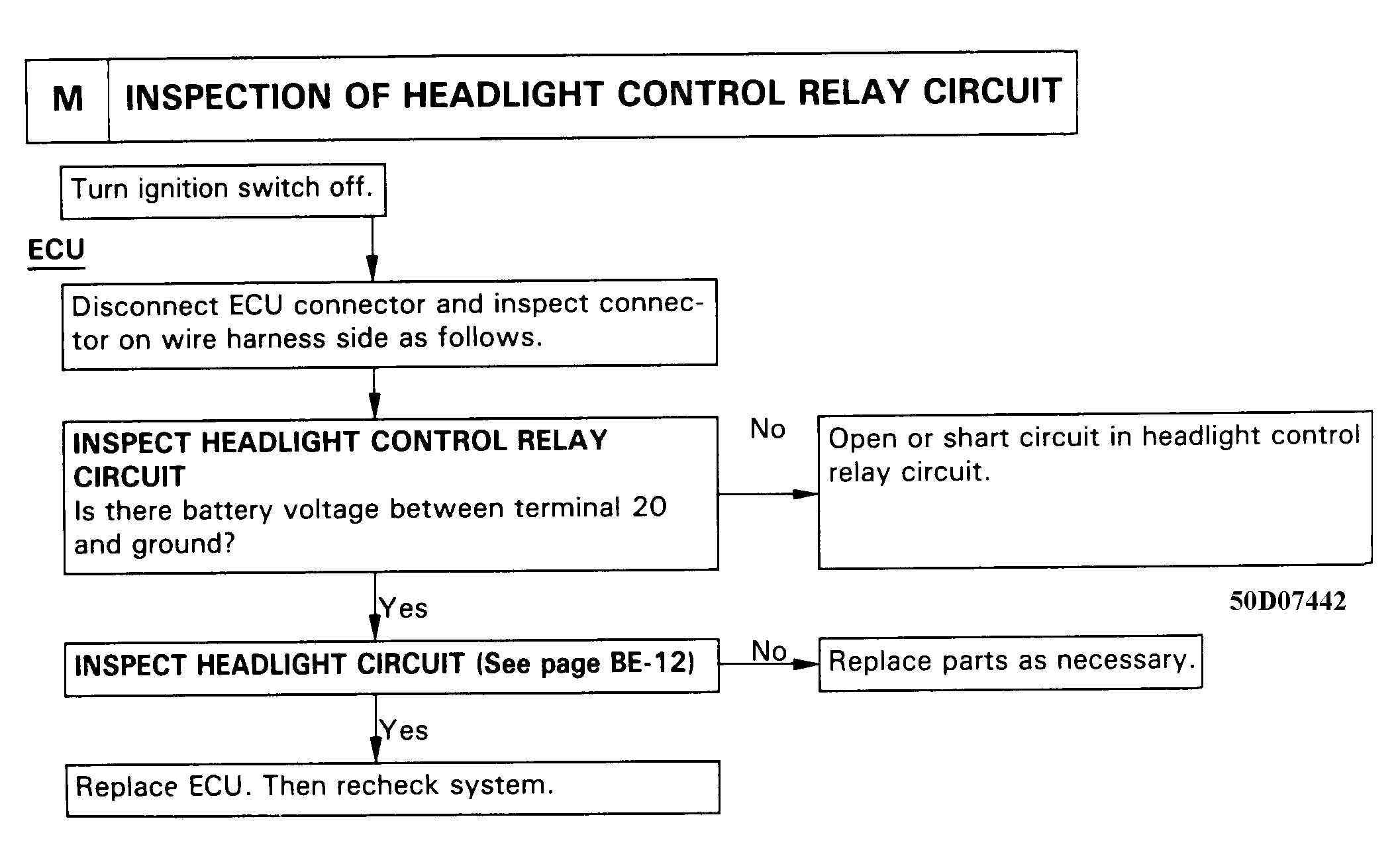

Fig 1: Test M, Inspection of Headlight Control Relay Circuit

G50D07442

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
