Test A, Inspection Of Power Source Circuit
Test A, Inspection Of Power Source Circuit

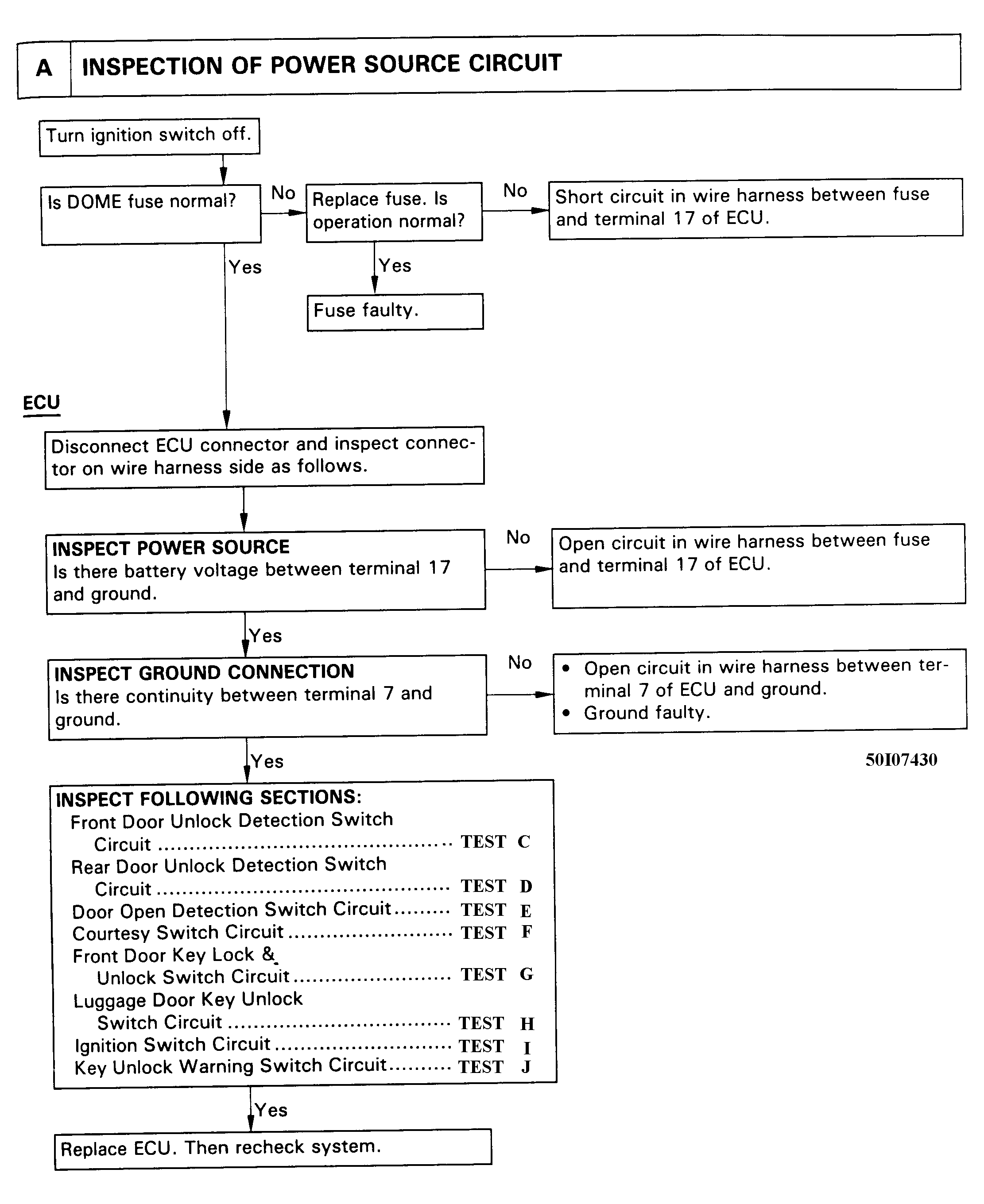

Fig 1: Test A, Inspection of Power Source Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
