Removal & Installation

  1. Remove door trim. See DOOR TRIM EXCEPT COUPE)  or DOOR TRIM (COUPE) . Disconnect the connector from the relay.
  2. Remove two bolts and the relay. See Fig 1.
  3. To install, reverse removal procedure.

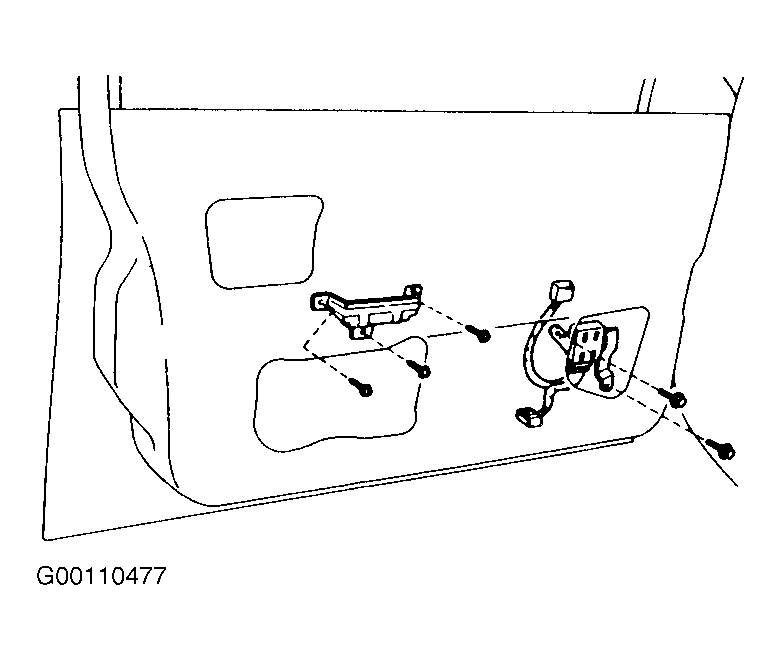

Fig 1: Removing Power Window Relay
G00110477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
