Differential Assembly: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1992 Toyota Supra, 1992 Toyota Previa, 1992 Toyota Pickup, 1992 Toyota Cressida, and 1992 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

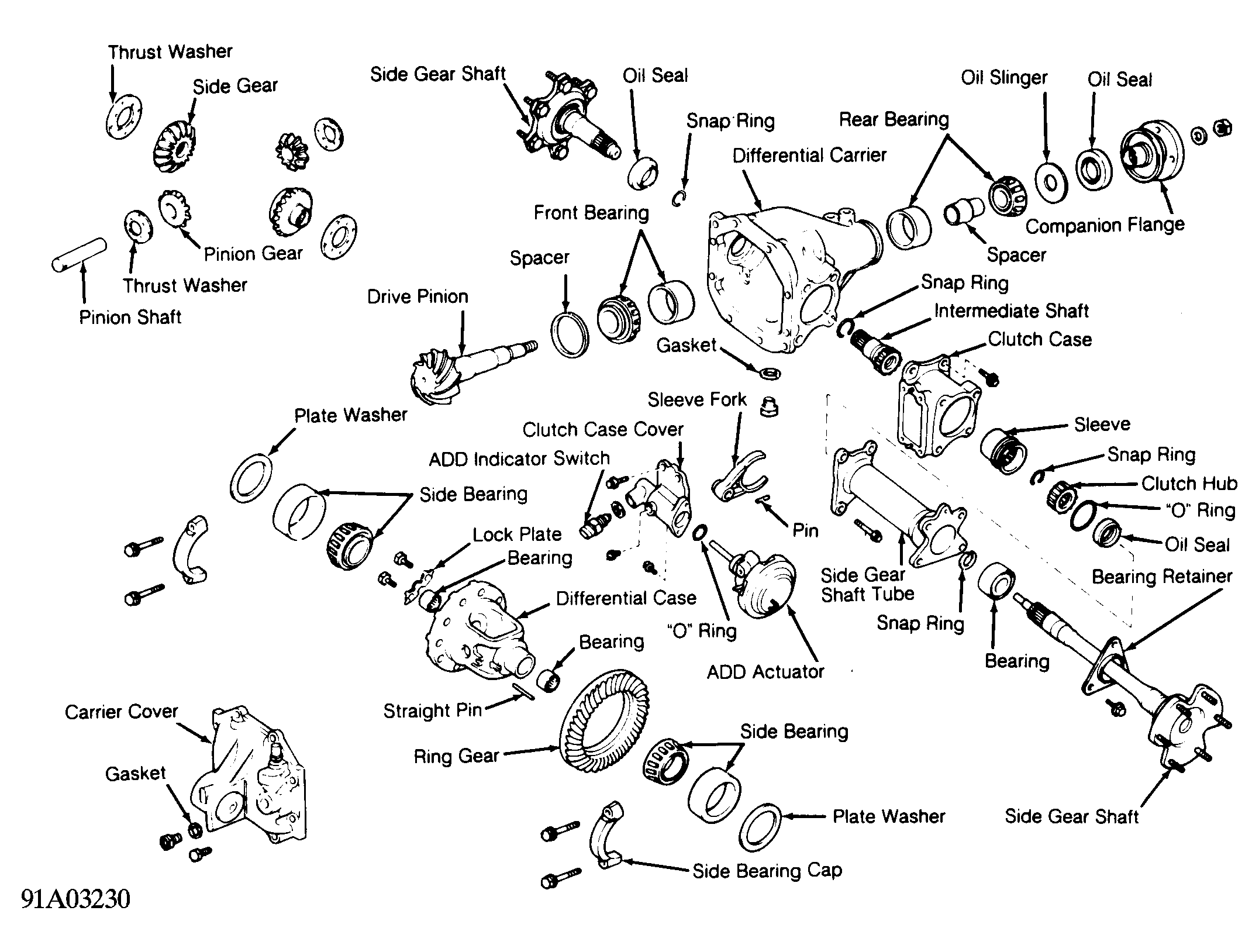

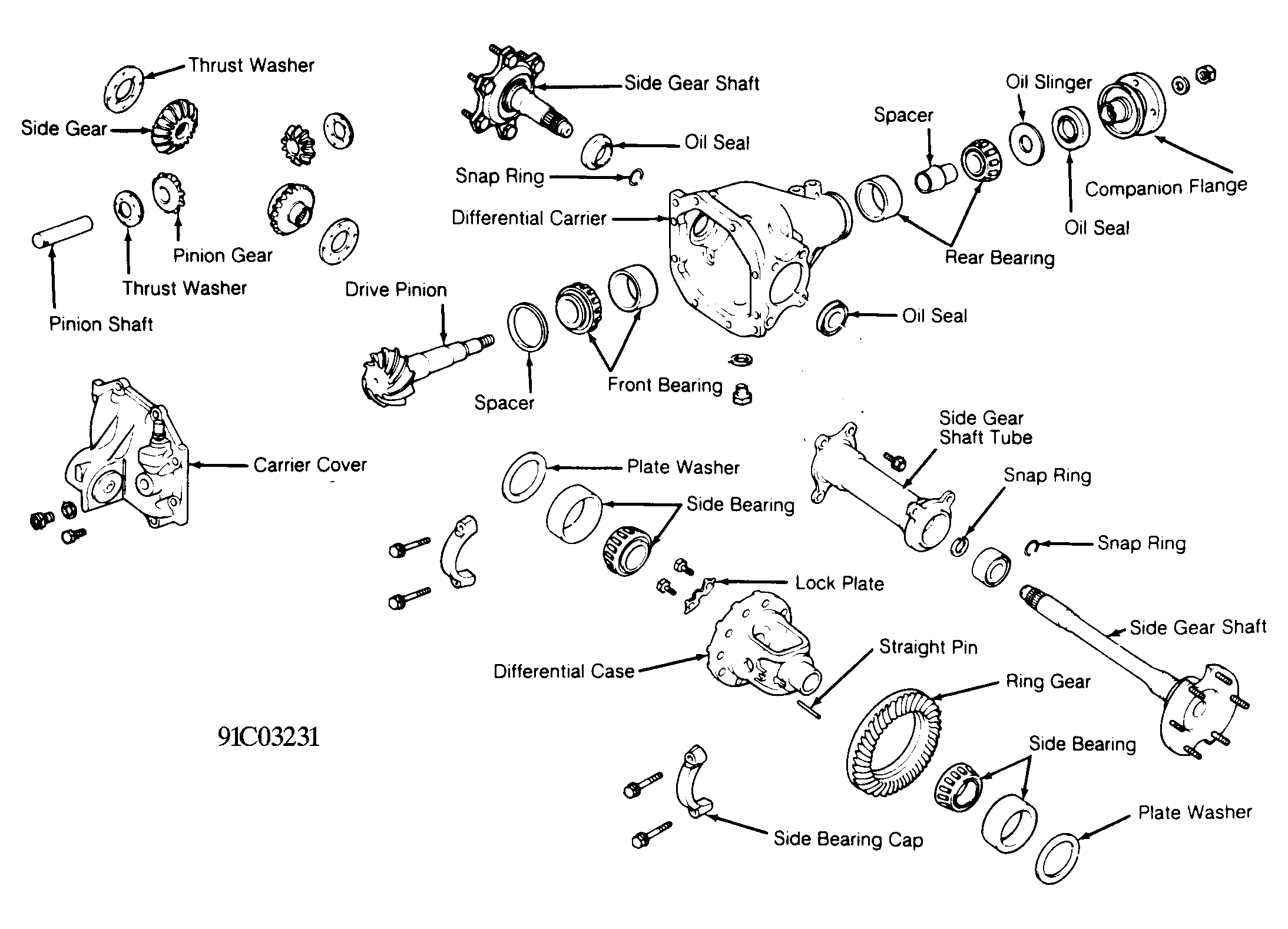

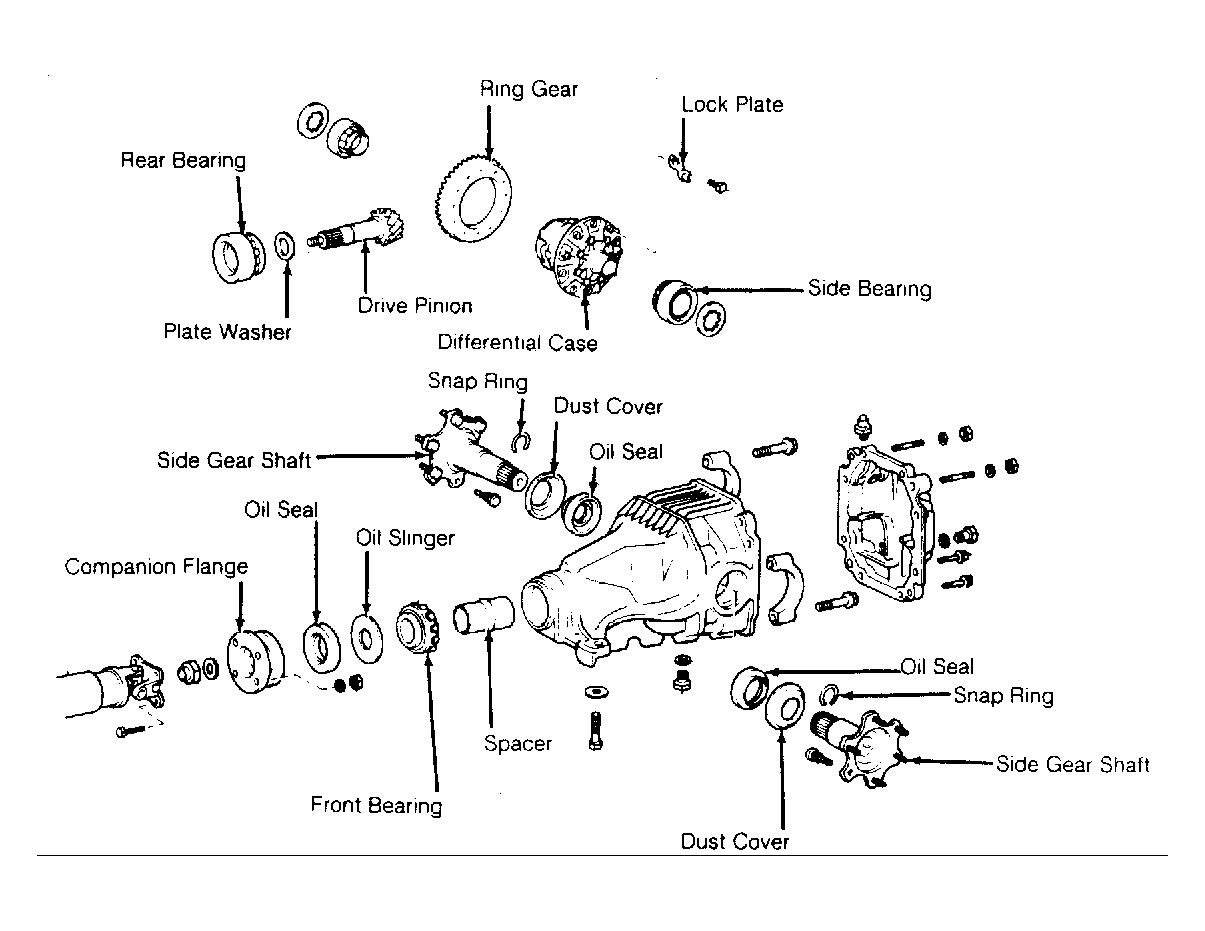

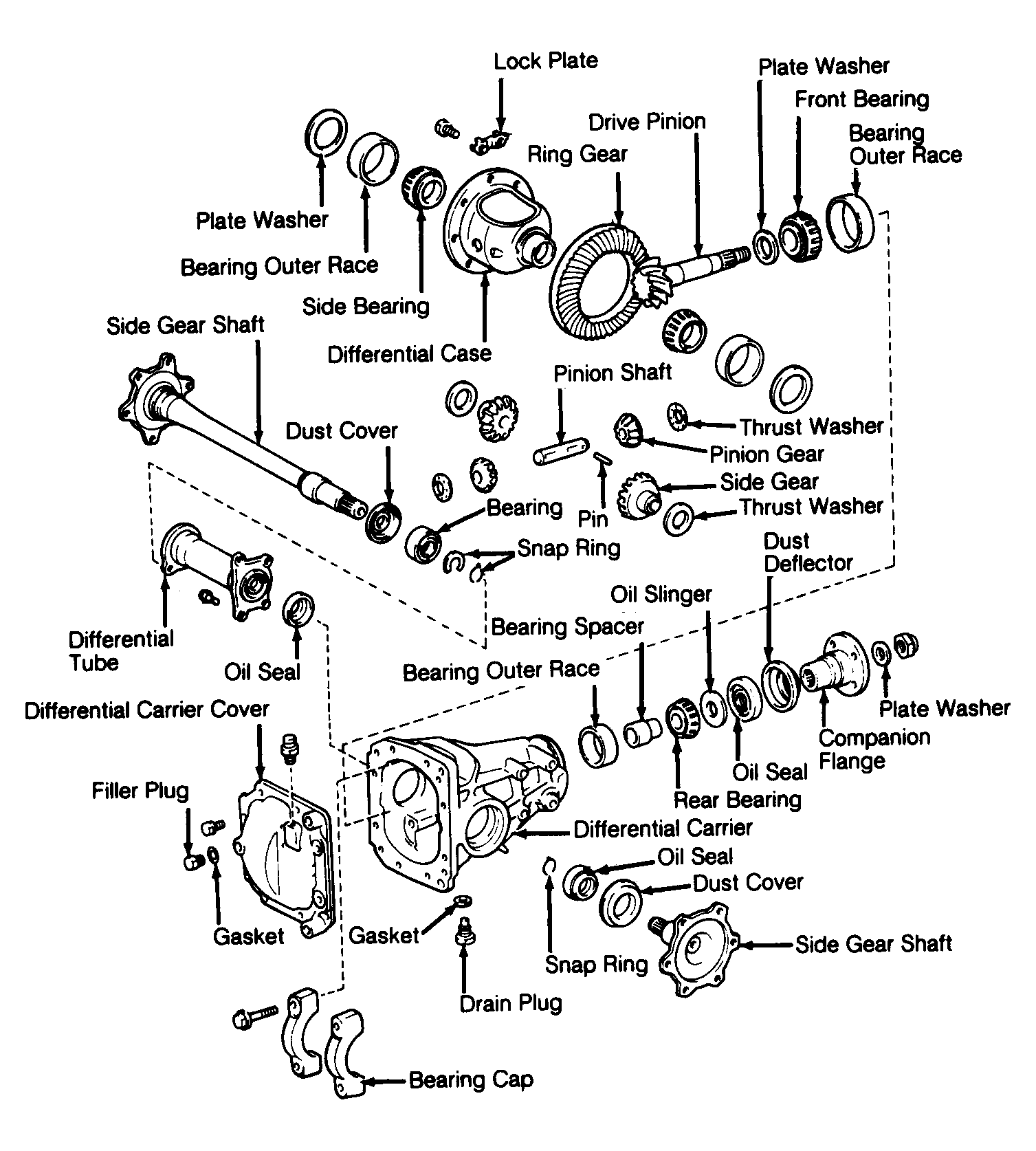

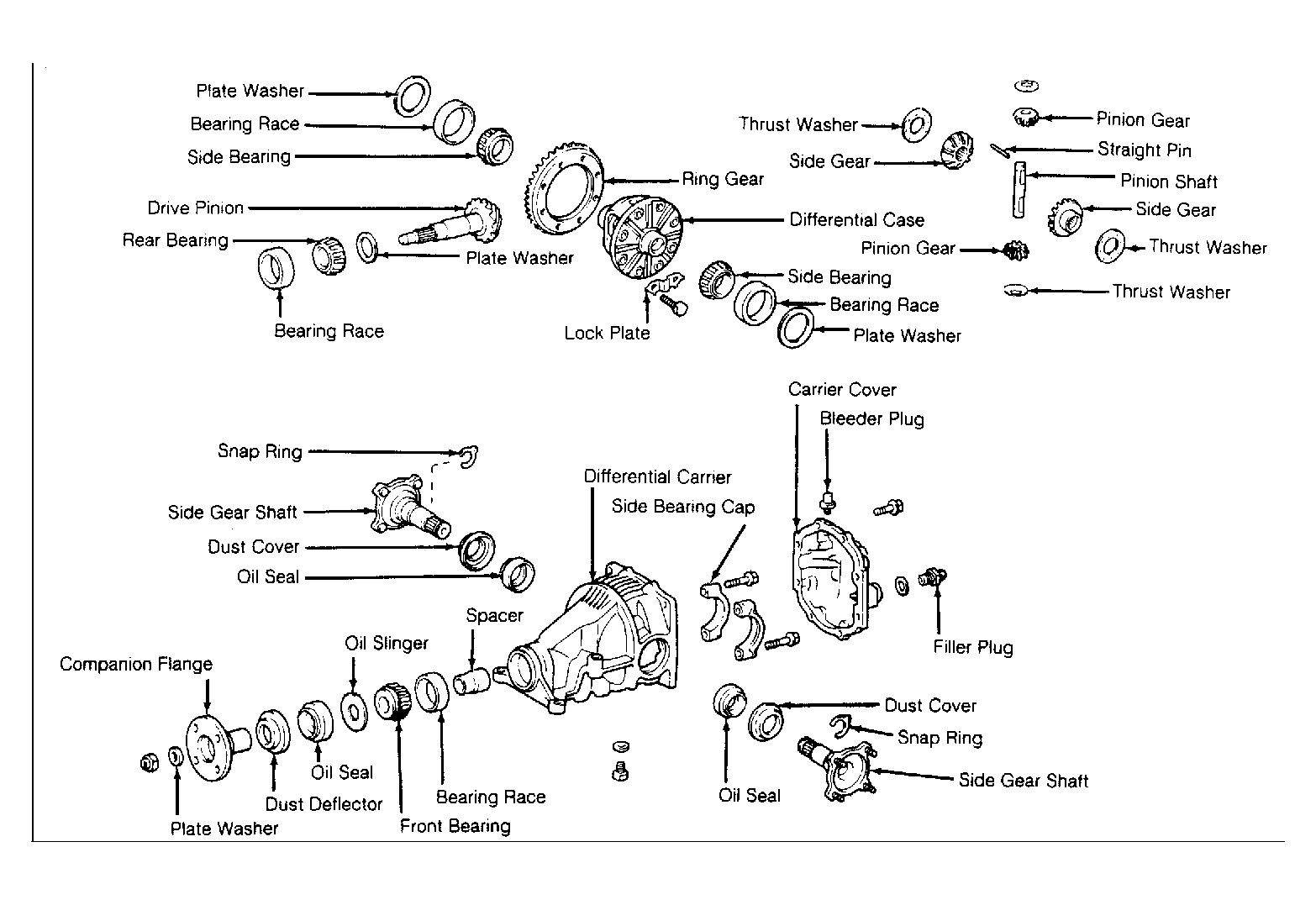

NOTE: Refer to Figure, Figure, Figure, Figure or Figure during overhaul procedures.
