Wiring Diagrams

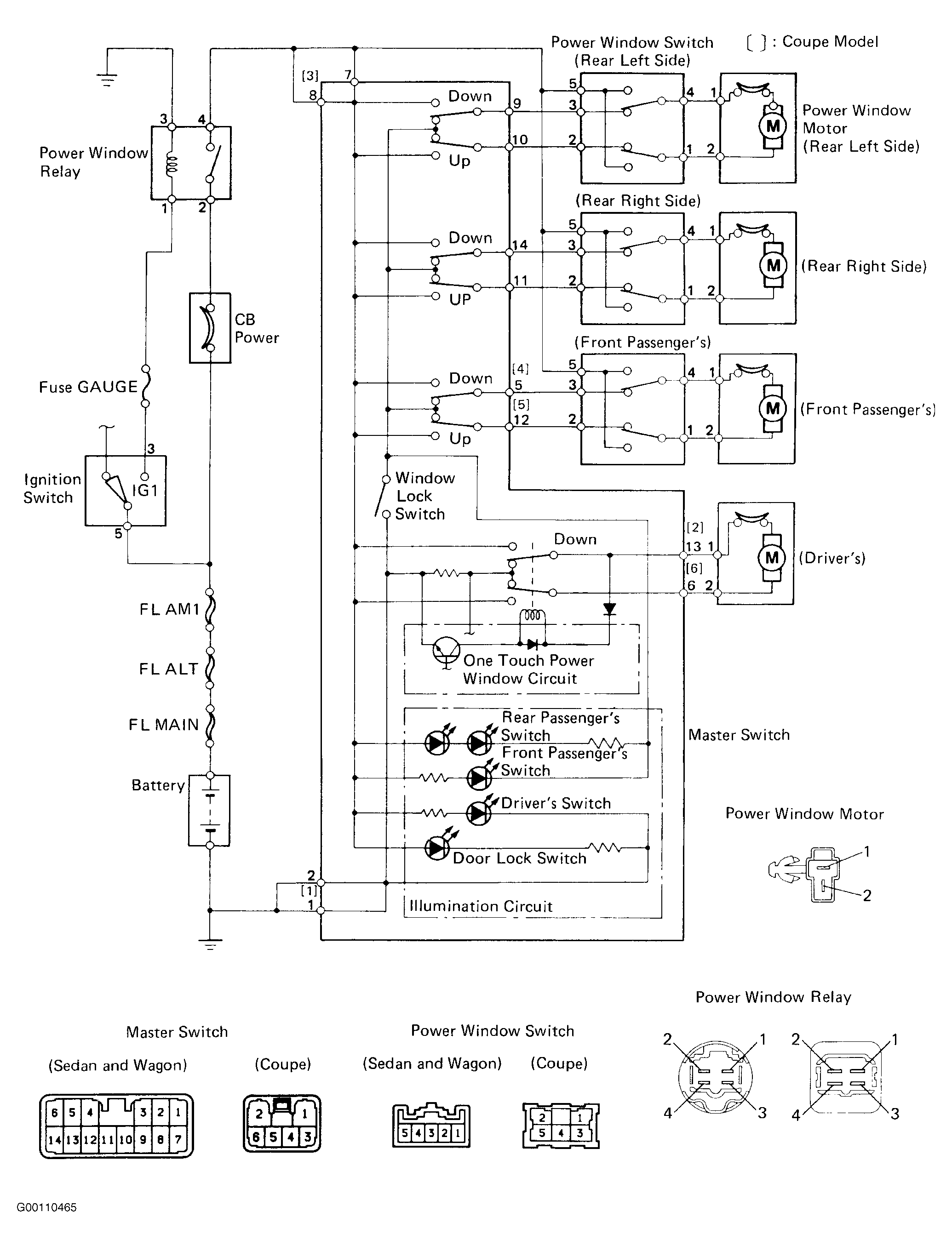

Fig 1: Power Window Circuit Schematic

G00110465

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Power Window Circuit, Coupe (1990)

Fig 3: Power Window Circuit, Except Coupe (1990)

Fig 4: Power Window Circuit, Coupe (1991)

Fig 5: Power Window Circuit, Except Coupe (1991)

Fig 6: Power Window Circuit (1992)
