Sensor Rotors

Visually inspect sensor rotor serrations for scratches, cracks, missing teeth and warping. Replace sensor rotor if damaged.

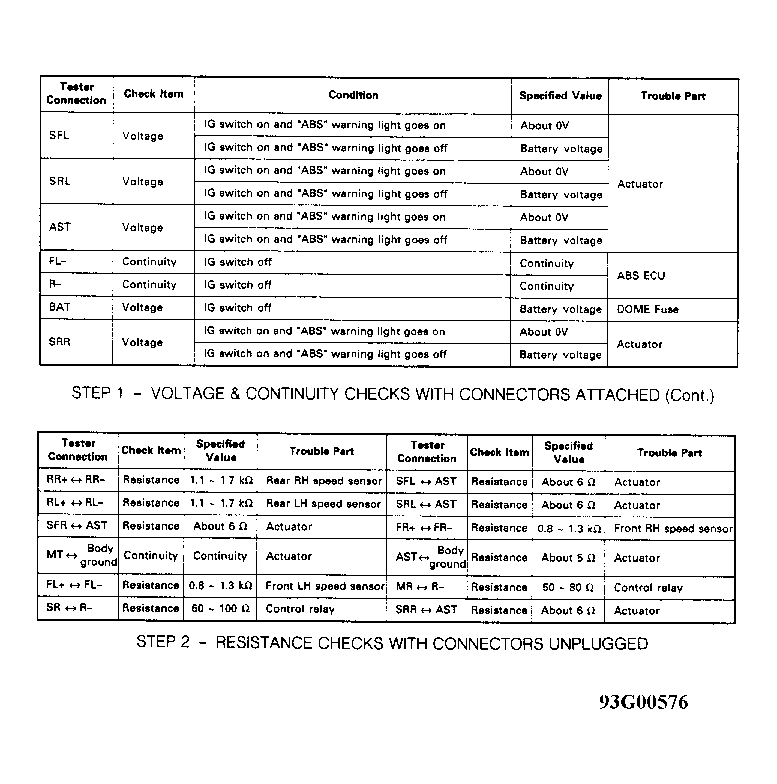

Fig 1: Testing Specifications Table For ABS Computer Wiring Harness - FWD

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

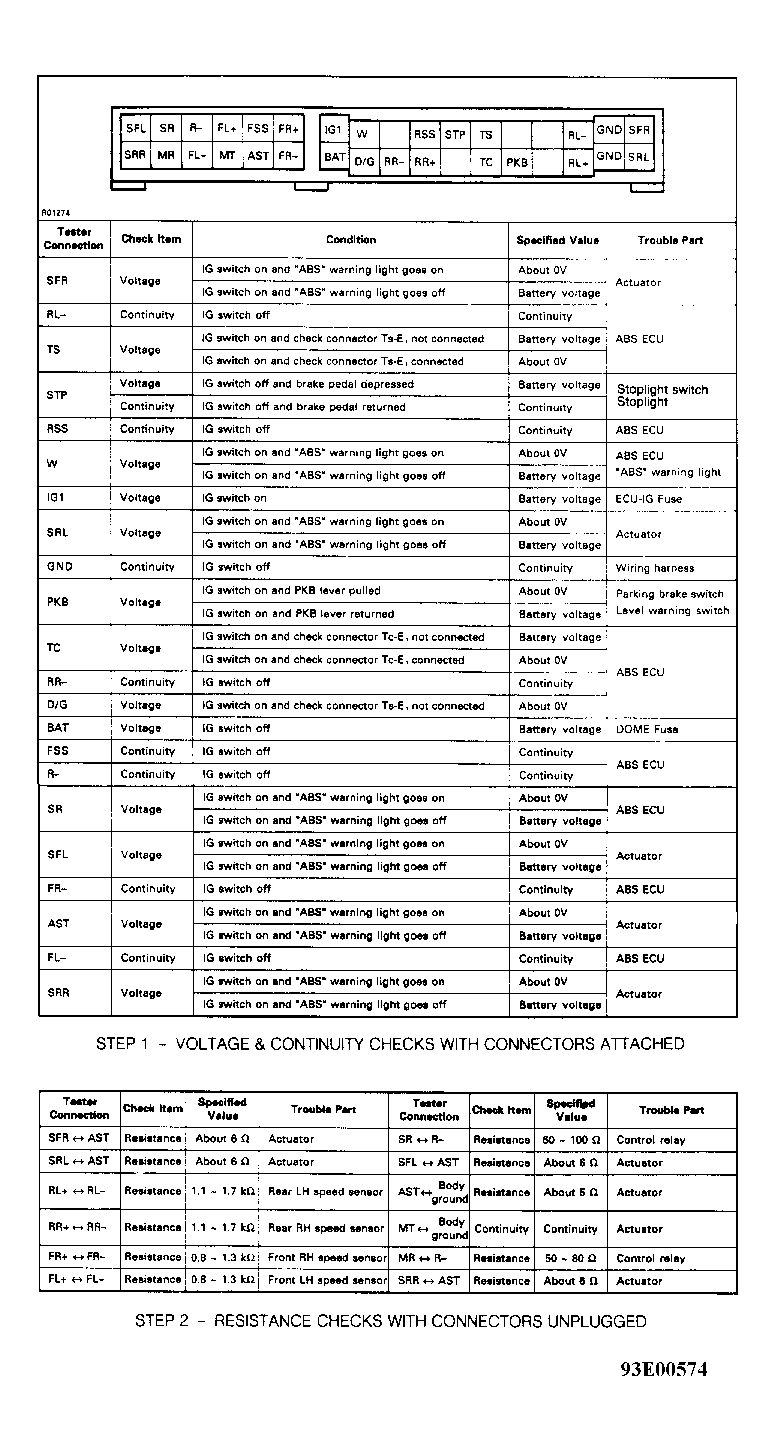

Fig 2: Testing Specifications Table For ABS Computer Wiring Harness - All-Trac (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

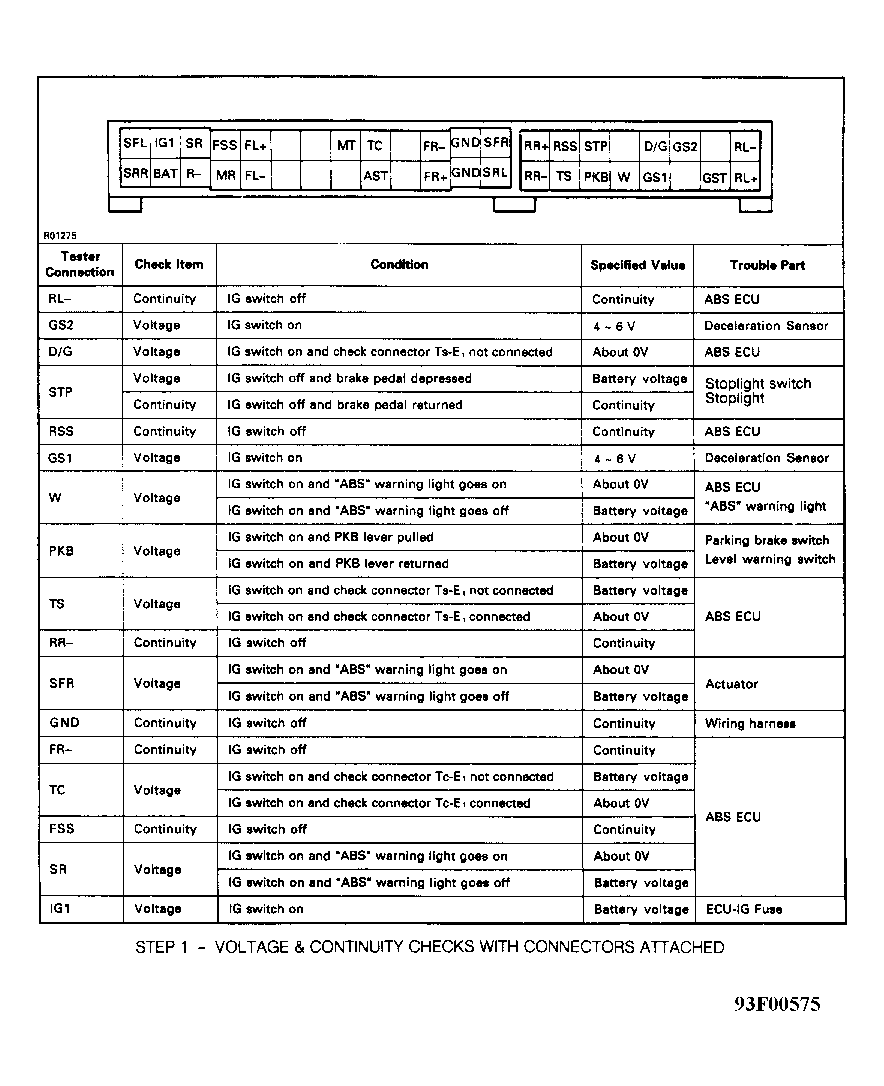

Fig 3: Testing Specifications Table For ABS Computer Wiring Harness - All-Trac (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
