Code 31, 32/Test No. 7 Vacuum Sensor Signal (5S-FE)

CODE 24/TEST NO. 6-IAT SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
PIM - E2	No Voltage	Ignition Switch ON	3.3-3.9V
VC-E2			4.5-5.5V

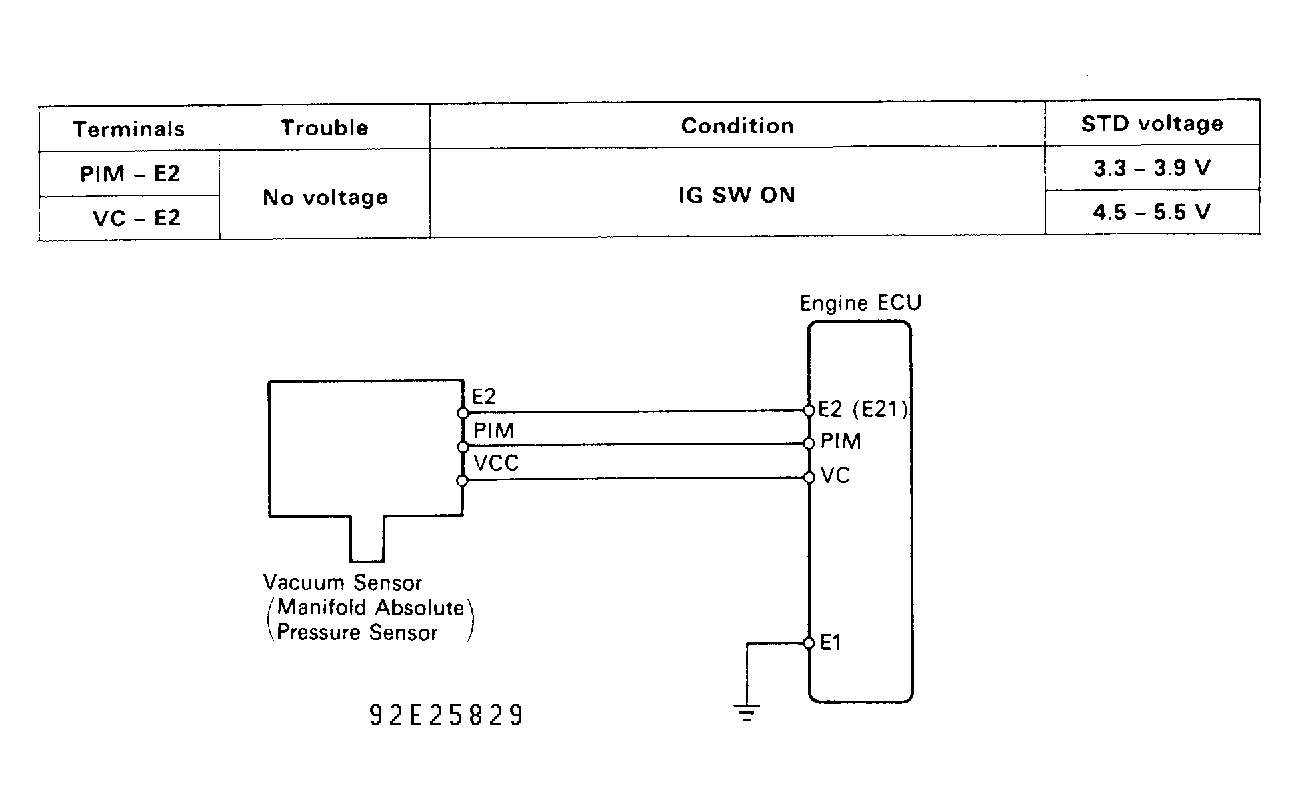

Fig 1: Code 31, 32/Test No. 7 (5S-FE) Schematic, Vacuum Sensor Signal

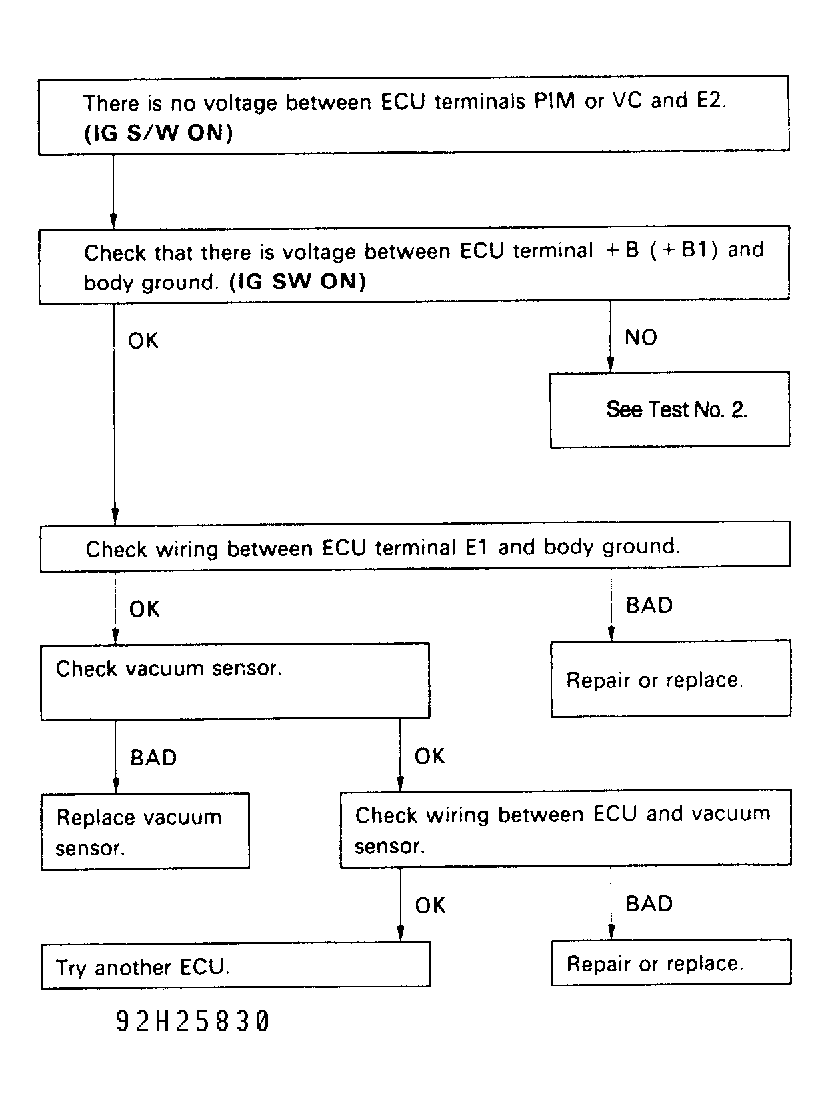

Fig 2: Code 31, 32/Test No. 7 (5S-FE) Flow Chart, Vacuum Sens Signal
