Wiring Diagrams

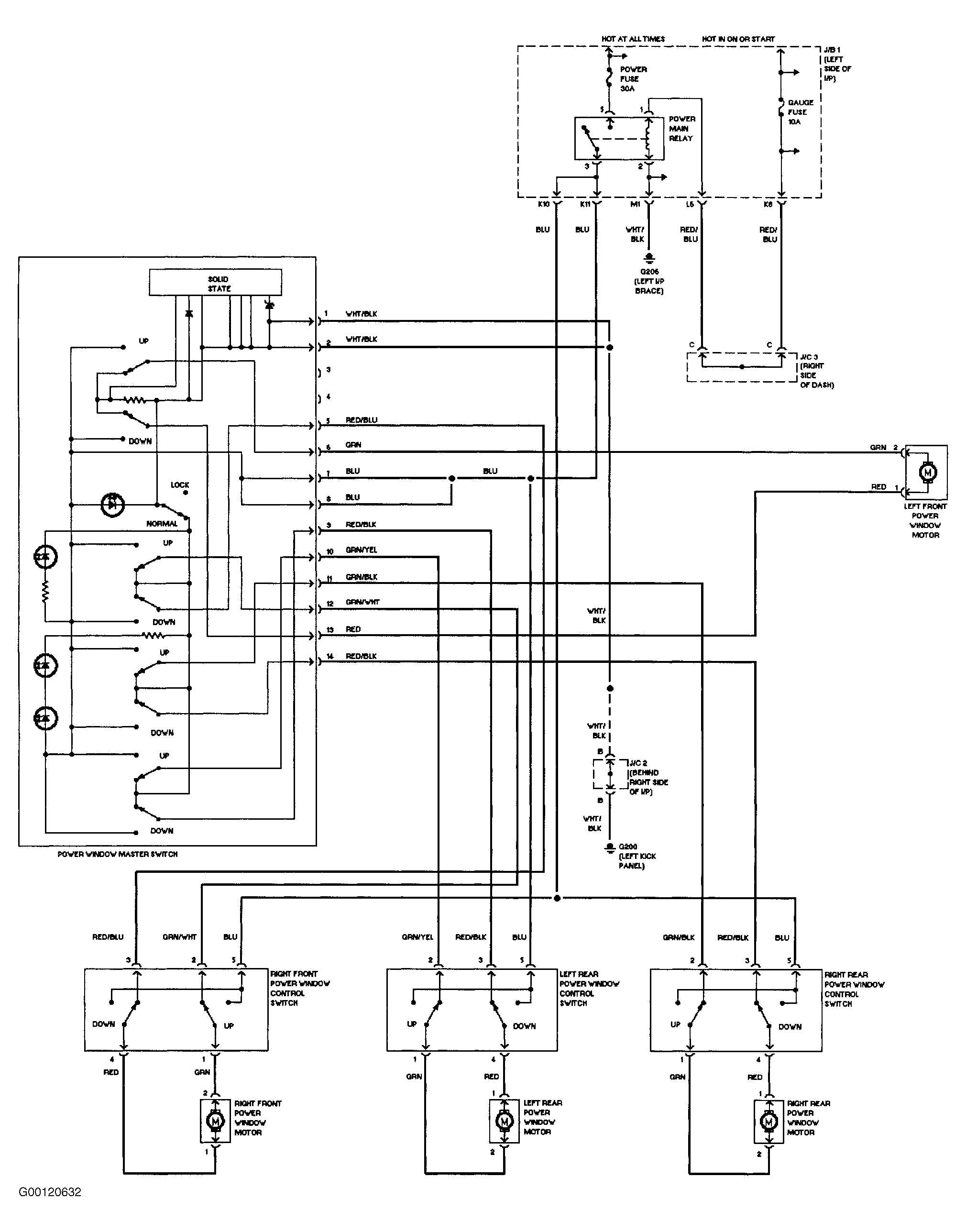

Fig 1: Power Window Wiring Diagram

G00120632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
