Window Regulator: Removal

  1. Remove door trim panel. See DOOR TRIM PANEL .
  2. Remove the window glass. See WINDOW GLASS .
    3. CAUTION: Do not pull strongly on the weatherstrip as it may tear.
  3. While pulling the weatherstrip by hand, remove the clips using a clip remover.
  4. Remove four nuts. Remove three bolts and door inside panel frame. See Fig 1.
  5. Remove two nut from the window regulator. Disconnect the connector. Remove the regulator through the service hole. See Fig 2.

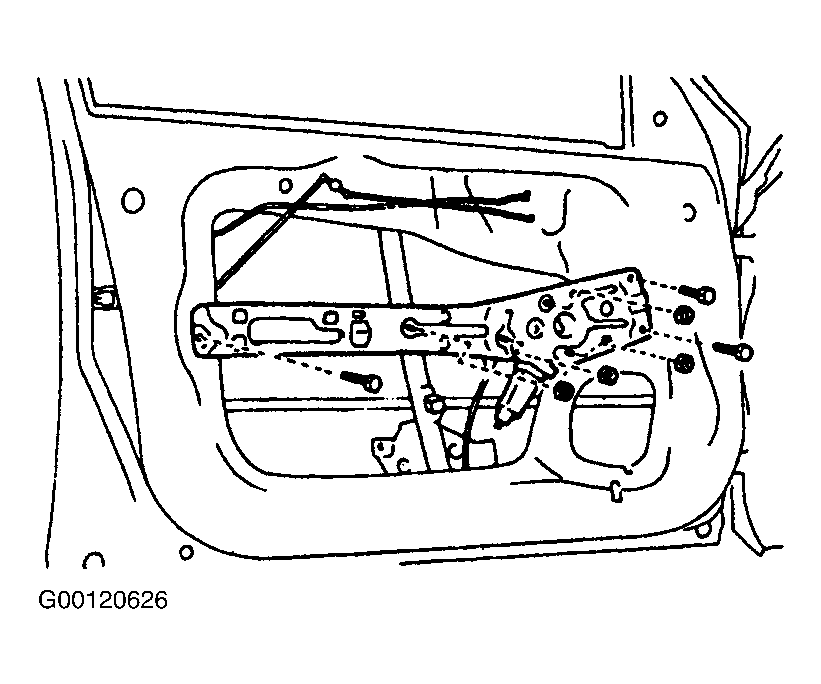

Fig 1: Removing Door Inside Panel Frame
G00120626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

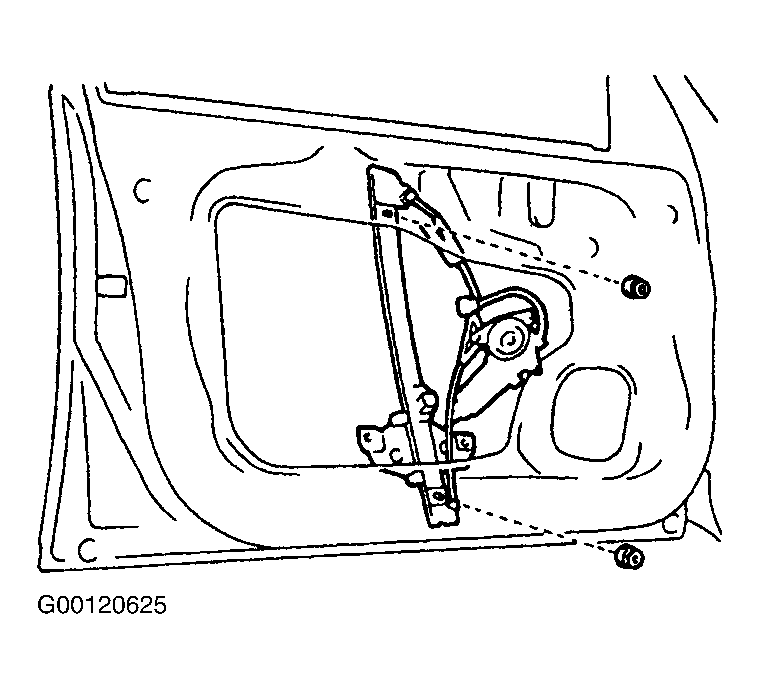

Fig 2: Removing Window Regulator
G00120625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
