Illumination Light

  1. Set the window locks switch to the UNLOCK position.
  2. Connect the positive (+) lead from the battery to terminal 7 and the negative (-) lead to terminal 1. See Fig 1. Check that all the illuminations light up.
  3. Set the window lock switch to the LOCK position, check that all the passenger's power window switch illuminations go out. If operation is not as specified, replace the master switch.

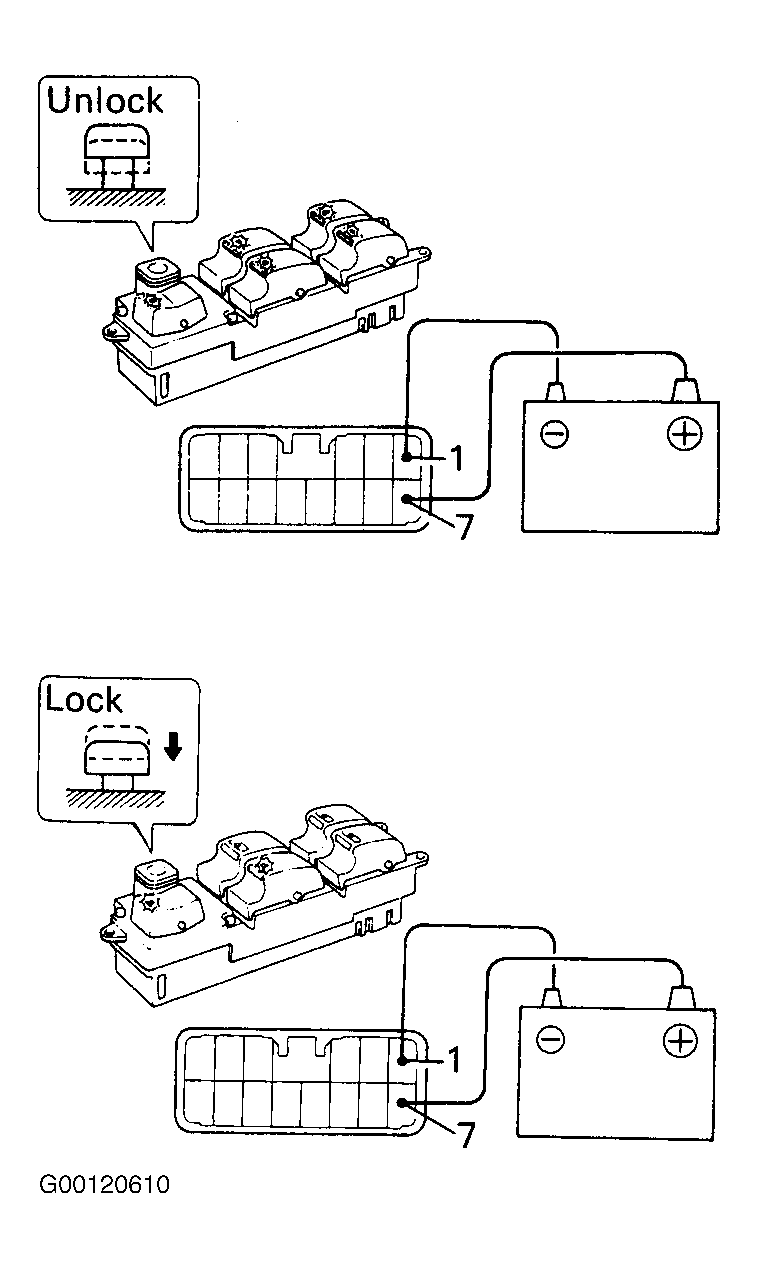

Fig 1: Testing Illumination Light
G00120610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
