Relay Circuit

Disconnect the connector from the relay and inspect the connector on the wire harness side as shown in the chart. See Fig 1 and Fig 2 . If the circuit is as specified, inspect the door lock signal.

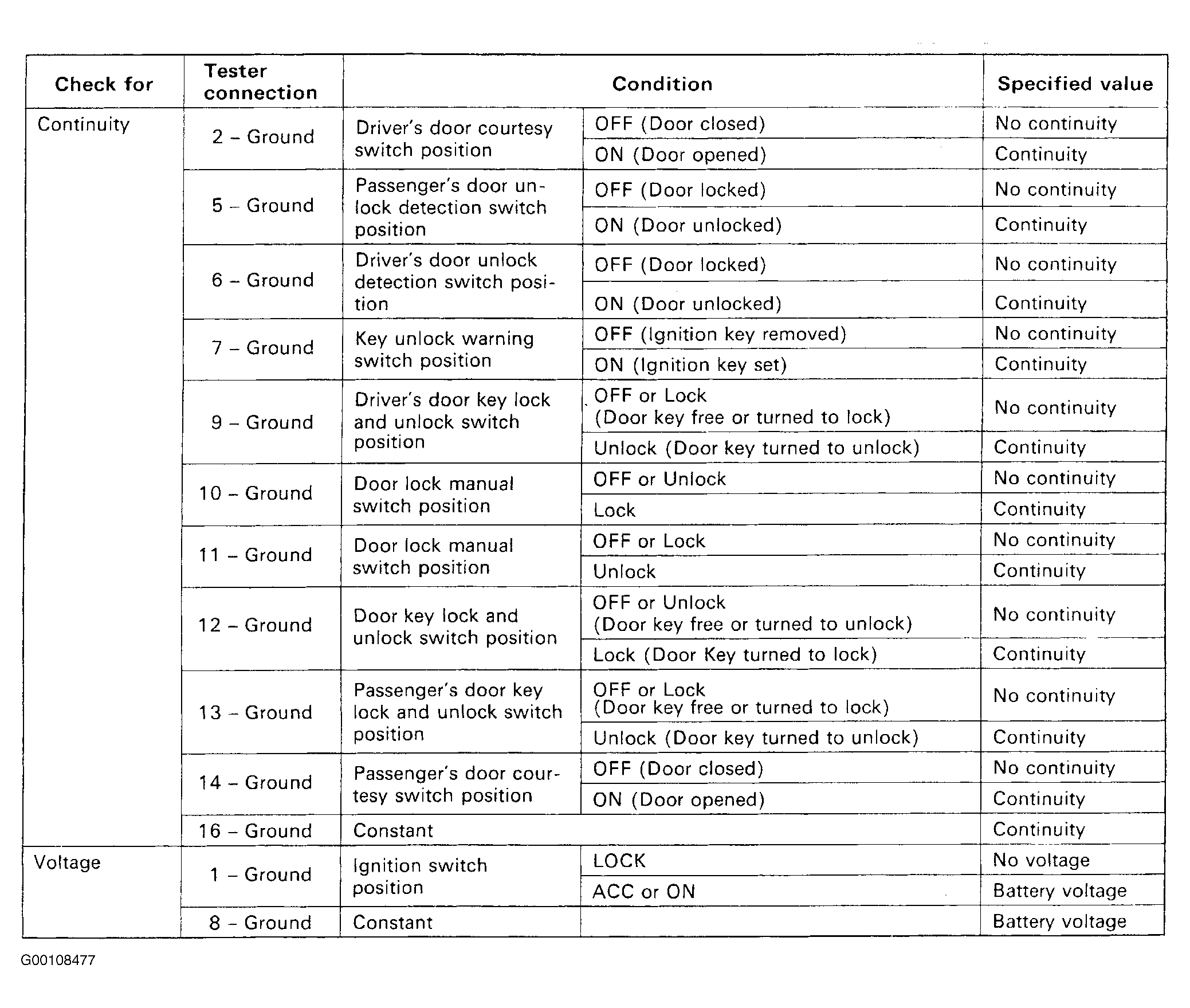

Fig 1: Testing Power Door Lock Control Relay Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

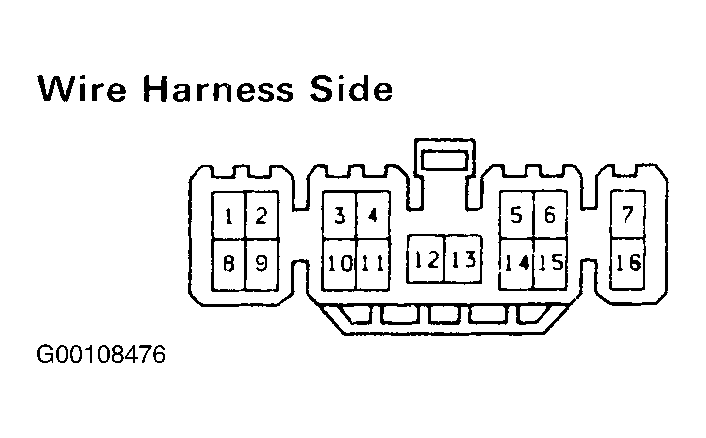

Fig 2: Identifying Relay Circuit Wire Harness Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
