Key Unlock Warning Switch

If continuity is not as specified, replace switch. See Fig 1.

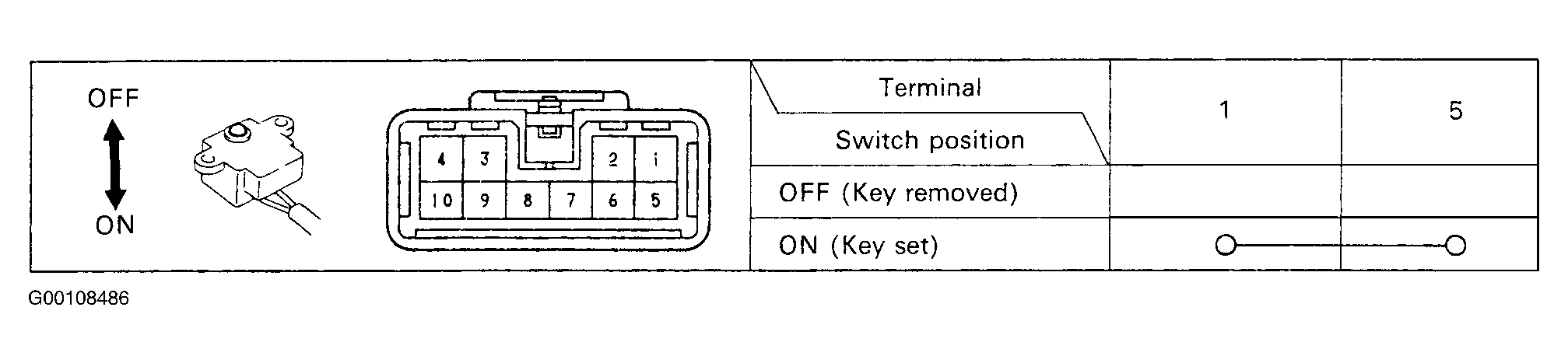

Fig 1: Testing Key Unlock Warning Switch Continuity

G00108486

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
